0.048X Working Distance 324mm 1/2.5

Price Option

Product No. 610038

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

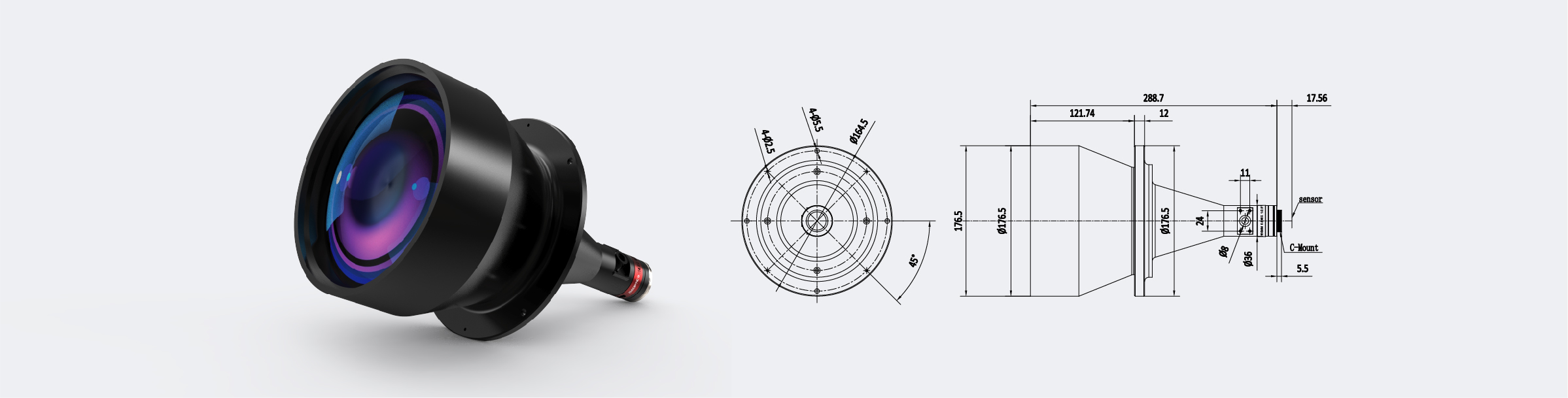

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 7.2mm

FOV 150mm

Magnification 0.048X

Working Distance 324mm

Max. sensor size 1/2.5"

F/# 4.1

Distrotion ＜0.05%

Telecentricity ＜0.03°

DOV ±71.18mm

MTF ＞30%@210lp/mm

Illumination Port -

Mount C-Mount

Length 288.7mm

Diameter 176.5mm

Weight 5476g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.048X
3	Working Distance		324mm
4	DOV		±71.18mm
5	Telecentricity		＜0.03°
6	Distortion		＜0.05%
7	F/#		F4.1
8	Resolution/MTF @F4.1		＞30%@210lp/mm
9	Max Object Space FOV		Ф150mm
10	Max Image Space FOV		Ф7.2mm
11	FOV（H×V）	1/2.5"	120.8×89.6mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф176.5×288.7mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8mm
