0.029X Working Distance 430mm 1/2.5

Price Option

Product No. 610004

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 7.2mm

FOV 248.27mm

Magnification 0.029X

Working Distance 431mm

Max. sensor size 1/2.5"

F/# 4.1

Distrotion ＜0.02%

Telecentricity ＜0.02°

DOV ±195.01mm

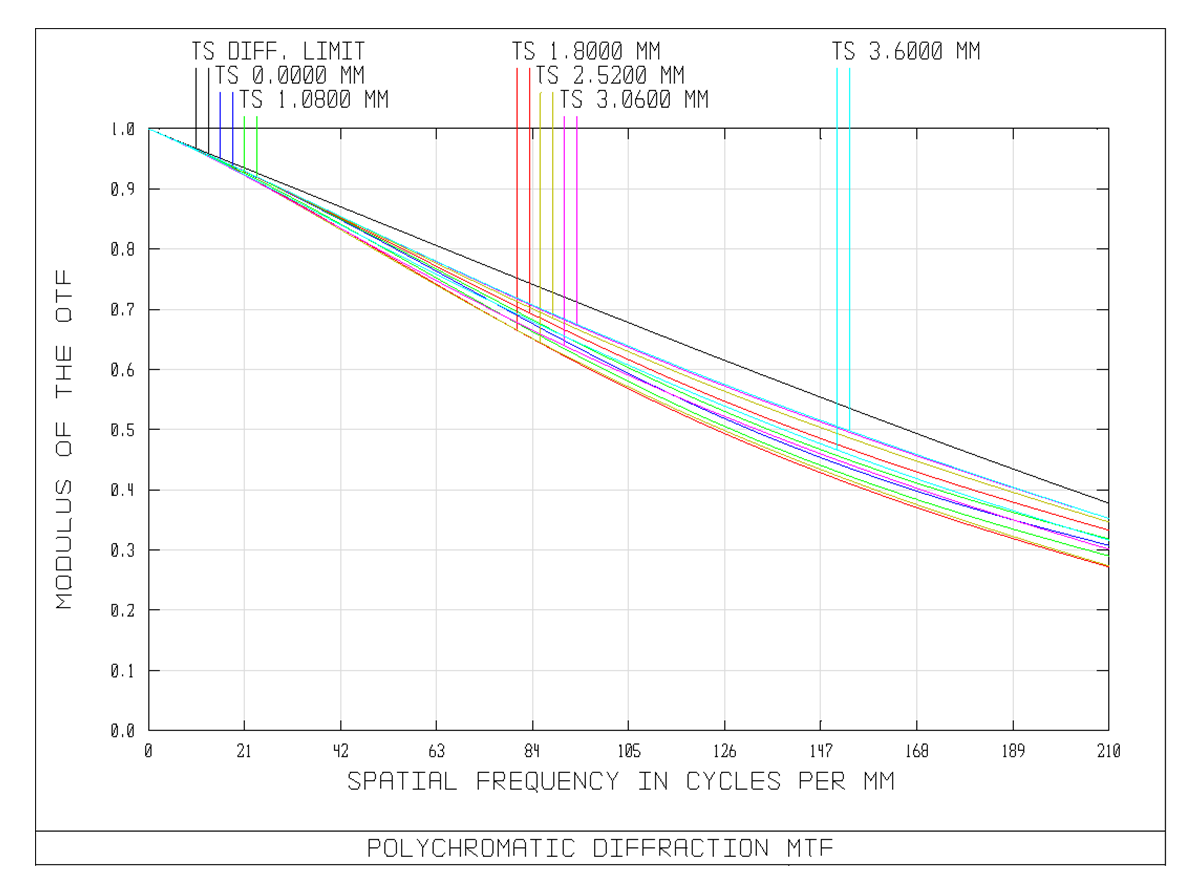

MTF ＞30%@210lp/mm

Illumination Port -

Mount C-Mount

Length 503.9mm

Diameter 280mm

Weight /

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.029X
3	Working Distance		431mm
4	DOV		±195.01mm
5	Telecentricity		＜0.02°
6	Distortion		＜0.02%
7	F/#		F4.1
8	Resolution/MTF @F4.1		＞30%@210lp/mm
9	Max Object Space FOV		Ф248.27mm
10	Max Image Space FOV		Ф7.2mm
11	FOV（H×V）	1/2.5"	200×148.3mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф280×503.9mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		2.5mm
