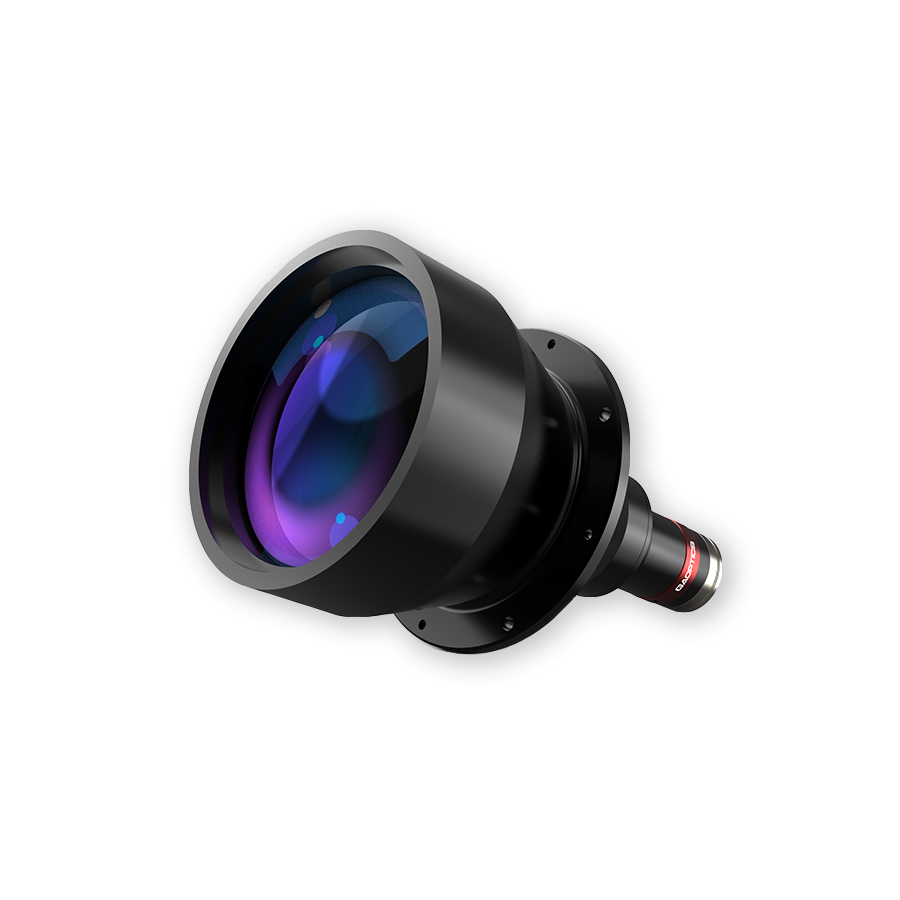

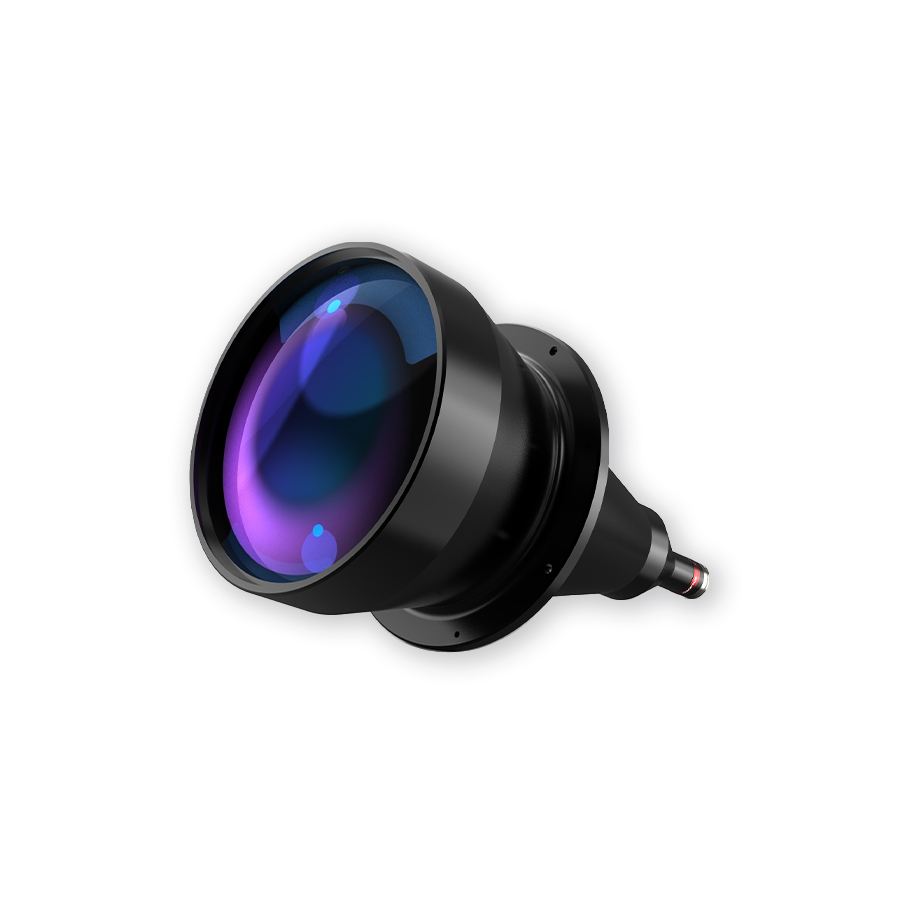

0.09X Working Distance 282mm 1/1.8

Price Option

Product No. 610008

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

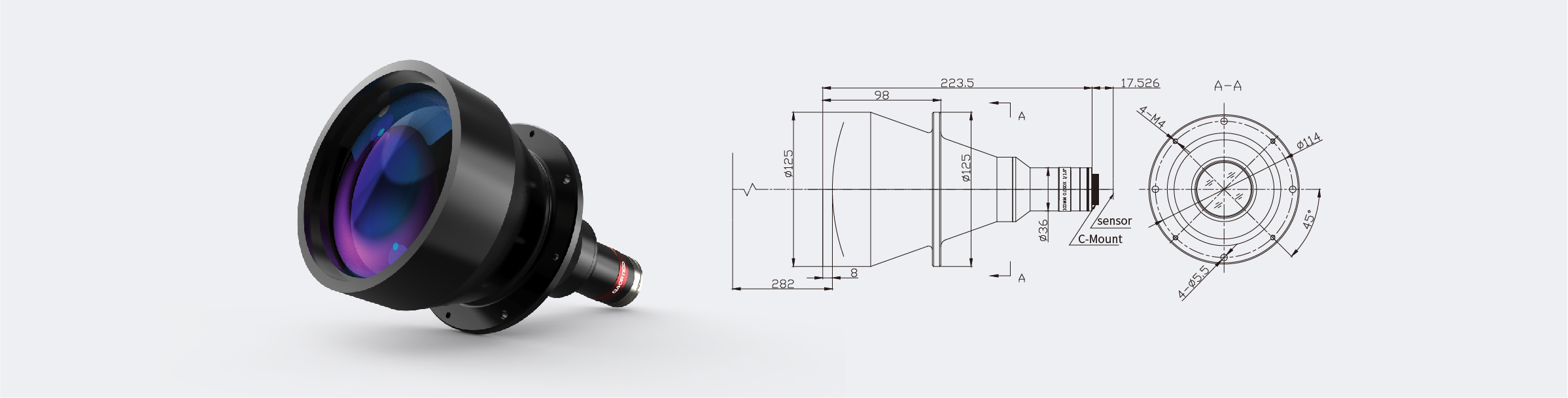

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 9mm

FOV 100mm

Magnification 0.09X

Working Distance 282mm

Max. sensor size 1/1.8"

F/# 4.7

Distrotion ＜0.06%

Telecentricity ＜0.05°

DOV ±23.21mm

MTF ＞30%@195lp/mm

Illumination Port -

Mount C-Mount

Length 223.5mm

Diameter 125mm

Weight 2262g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.090X
3	Working Distance		282.00mm
4	DOV		±23.21mm
5	Telecentricity		＜0.05°
6	Distortion		＜0.06%
7	F/#		F4.7
8	Resolution/MTF @F4.7		＞30%@195lp/mm
9	Max Object Space FOV		Ф100mm
10	Max Image Space FOV		Ф9mm
11	FOV （H×V）	1/1.8"	80.0×60.0mm
		1/2.5"	64.4×47.8mm
12	Lens Mount		C-Mount
13	Lens Size（Dia.×Length）		Ф125.0×223.5mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		8.0mm
