0.036X Working Distance 430mm 1/1.8

Price Option

Product No. 610010

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 9mm

FOV 250mm

Magnification 0.036X

Working Distance 431mm

Max. sensor size 1/1.8"

F/# 4.7

Distrotion ＜0.04%

Telecentricity ＜0.02°

DOV ±145.06mm

MTF ＞30%@195lp/mm

Illumination Port -

Mount C-Mount

Length 508.3mm

Diameter 280mm

Weight /

NO	Item		Specifications
1	Optical Configurations		Double Telecentric
2	Magnification		0.036X
3	Working Distance		431mm
4	DOV		±145.06mm
5	Telecentricity		＜0.02°
6	Distortion		＜0.04%
7	F/#		F4.7
8	Resolution/MTF @F4.7		>30%@195lp/mm
9	Max Object Space FOV		Φ9mm
10	Max Image Space FOV		Φ250mm
11	FOV （H×V）	1/1.8"	200×150mm
		1/2.5"	161.1×119.4mm
12	Lens Mount		C-Mount

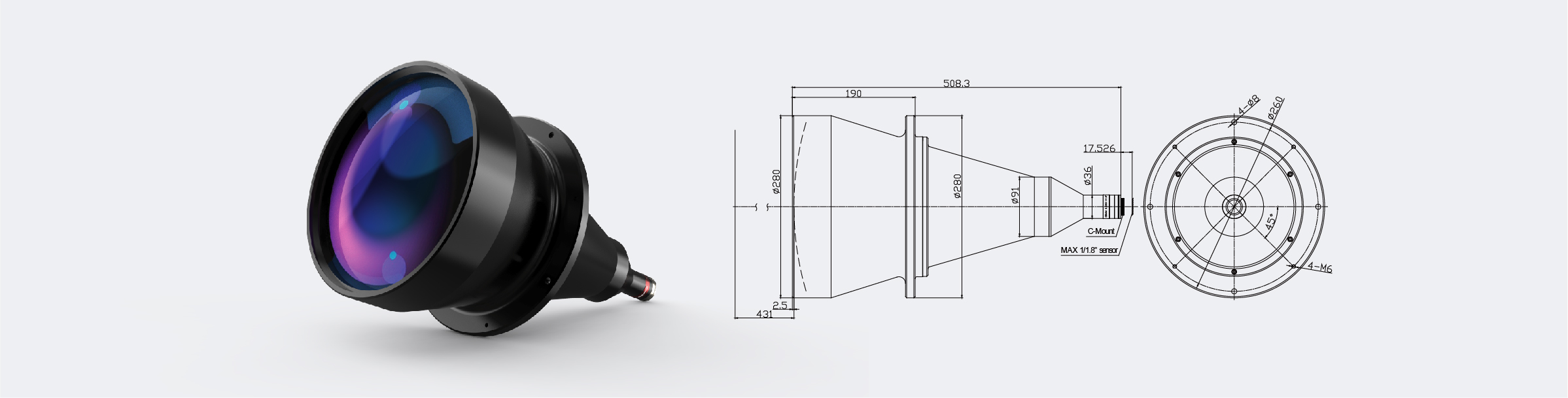

13	Lens Size（Dia.×Length）		Φ280×508.3mm
14	The distance from the front end of imaging lens to the first surface of the first glass lens		2.5mm
