50mm 1.8" 6M Fixed Focal Length Lens

Price Option

Product No. 600043

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 50mm

F/# 2.8

Max. sensor size 1/1.8"

Mount C

Resolution 6MP

Working Distance 0.3m～∞

Filter Thread /

FOV 10.31°×8.26°×6.18°

Distrotion -0.055%@y=4.5mm

Weight /

No.	Item		Specifications
1	Max. sensor size		1/1.8"(9mm)
2	Focal Length		50mm
3	Mount		C-Mount
4	F/#		F2.8
5	Working Distance		0.3~∝m
6	FOV(Diagonal x H xV)	1/1.8"	10.31°×8.26°×6.18°
		1/2.3"	8.92°×7.12°×5.36°
		1/2.5"	8.16°×5.72°×4.92°
7	Object Size (at the minimum focus distance)	1/1.8"	44.75×35.80×26.85mm
		1/2.3"	38.79×31.03×23.25mm
		1/2.5"	35.70×28.56×21.42mm
8	BFL（in air）		11.938mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1/1.8"	-0.055%@y=4.5mm
		1/2.3"	-0.030%@y=3.9mm
		1/2.5"	-0.020%@y=3.59mm
11	Filter thread		M27×0.5mm

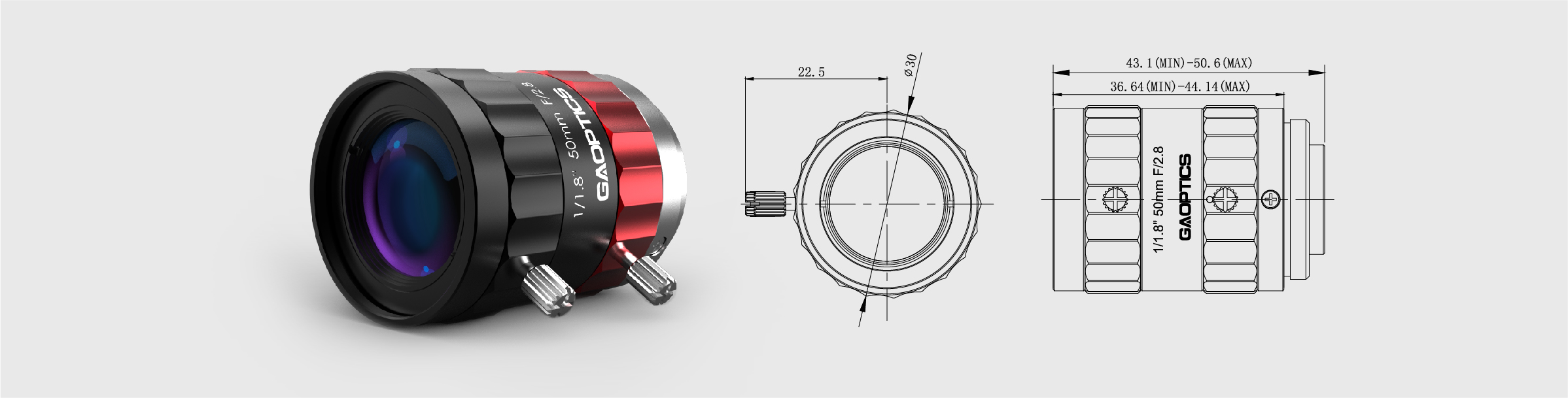

12	Lens Size(W x L)		37.5×50.6mm
13	Weight		/
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		20.856mm
16	Diameter of entrance pupil		17.856mm
17	Distance of exit pupil		-54.092mm
18	Diameter of exit pupil		19.532mm
19	Total optical length		52.00mm
20	Magnification		-0.2010mm

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
300mm	-0.20100	0.3623	0.3633
350mm	-0.16737	0.4932	0.4946
400mm	-0.14337	0.644	0.6461
450mm	-0.12539	0.815	0.8179
500mm	-0.11142	1.0059	1.0100
550mm	-0.10025	1.2169	1.2223
600mm	-0.09111	1.4481	1.45504
650mm	-0.0835	1.69906	1.70799
750mm	-0.07155	2.2611	2.2748
1000mm	-0.0527	4.0158	4.0483

Curve Download

12mm 1.8" 6M Fixed Focal Length Lens

16mm 1.8" 6M Fixed Focal Length Lens

25mm 1.8" 6M Fixed Focal Length Lens

35mm 1.8" 6M Fixed Focal Length Lens

GA 1/1.8" 6M FA lens has very good optical performance, suitable for industrial automation, biomedical, industrial inspection and other fields. It adopts 1/1.8" sensor design, with a high resolution of "230lp/mm, 2.2um and 2.4um pixels", high consistency between center and edge, compatible 1/2.5" and 1/1.8" industrial cameras well. Small size and compact design, ideal used limited usage space.

Product characteristics
1. 1/1.8" Small Format design
2. 230lp/mm@±4.5mm, high resolution
3. Focal length covers 8-50 mm
4. Compact design and Small size
5. Special optical optimization, very high consistency between center and edge.
