16mm 1.8" 6M Fixed Focal Length Lens
Price Option
Product No. 600039
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 16mm
- F/# 1.8
- Max. sensor size 1/1.8"
- Mount C
- Resolution 6MP
- Working Distance 0.15m～∞
- Filter Thread M27.5×0.5mm
- FOV 31.30°×25.21°×19.00°
- Distrotion -0.73%@y=4.5mm
- Weight /
| No. | Item | Specifications | |
| 1 | Max. sensor size | 1/1.8"(9.0mm) | |
| 2 | Focal Length | 16mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F1.8-F22 | |
| 5 | Working Distance | 0.15m~∞ | |
| 6 |
FOV (Diagonal x H xV) |
1/1.8" | 31.30°×25.21°×19.00° |
| 1/2.3" | 27.55°×22.15°×16.68° | ||
| 1/2.5" | 25.21°×20.47°×15.4° | ||
| 7 | Object Size (at the minimum focus distance) |
1/1.8" | 122.71×98.17×73.63mm |
| 1/2.3" | 107.18×85.74×64.30㎜ | ||
| 1/2.5" | 98.78×79.02×59.26mm | ||
| 8 | BFL（in air） | 9.707mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 1/1.8" | -0.73%@y=4.5mm |
| 1/2.3" | -0.57%@y=3.9mm | ||
| 1/2.5" | -0.49%@y=3.6mm | ||
| 11 | Filter thread | M27.5×0.5mm | |

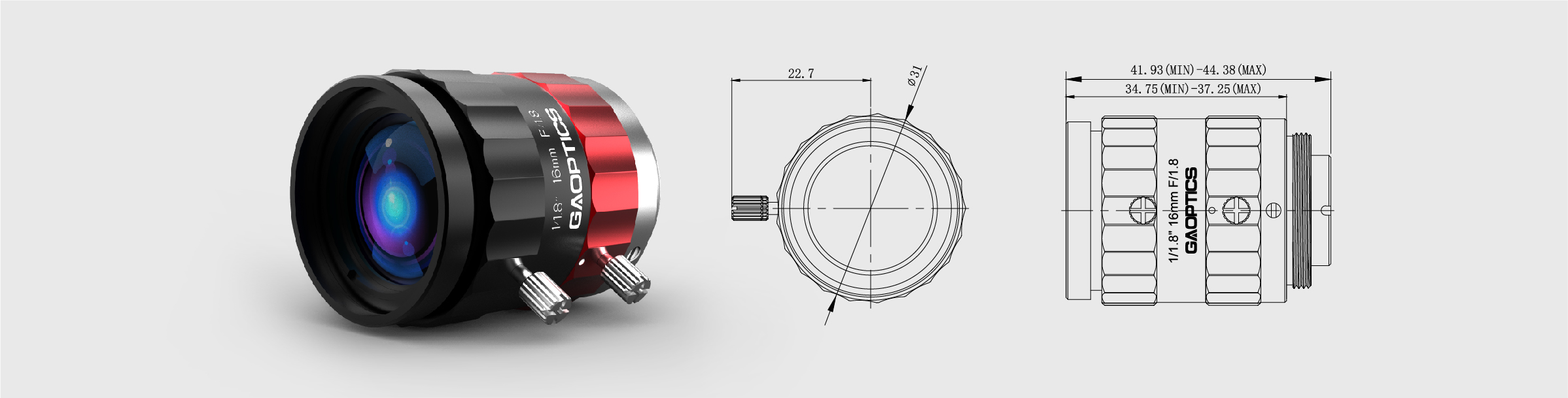

| 12 | Lens Size(W x L) | 38.2x44.38mm | |
| 13 | Weight | / | |
| 14 | Work Temperature | -10℃～+50℃ | |
| 15 | Distance of entrance pupil | 30.249mm | |
| 16 | Diameter of entrance pupil | 8.891mm | |
| 17 | Distance of exit pupil | -32.3831mm | |
| 18 | Diameter of exit pupil | 17.99361mm | |
| 19 | Total optical length | 54.204mm | |
| 20 | Magnification | -0.09563 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 150mm | -0.09563 | 0.5674 | 0.5717 |
| 200mm | -0.07363 | 1.0074 | 1.0176 |
| 250mm | -0.05986 | 1.5721 | 1.5921 |
| 300mm | -0.05043 | 2.2609 | 2.2955 |
| 350mm | -0.04356 | 3.0735 | 3.1285 |
| 400mm | -0.03834 | 4.0094 | 4.0914 |
| 450mm | -0.03424 | 5.068 | 5.1848 |
| 500mm | -0.03093 | 6.249 | 6.4092 |
| 550mm | -0.0282 | 7.5519 | 7.7651 |
| 750mm | -0.02085 | 13.9731 | 14.5138 |
GA 1/1.8" 6M FA lens has very good optical performance, suitable for industrial automation, biomedical, industrial inspection and other fields. It adopts 1/1.8" sensor design, with a high resolution of "230lp/mm, 2.2um and 2.4um pixels", high consistency between center and edge, compatible 1/2.5" and 1/1.8" industrial cameras well. Small size and compact design, ideal used limited usage space.
Product characteristics
1. 1/1.8" Small Format design;
2. 230lp/mm@±4.5mm, high resolution;
3. Focal length covers 8-50 mm;
4. Compact design and Small size;
5. Special optical optimization, very high consistency between center and edge.
