35mm 1.8" 6M Fixed Focal Length Lens
Price Option
Product No. 600041
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 35mm
- F/# 2
- Max. sensor size 1/1.8"
- Mount C
- Resolution 6MP
- Working Distance 0.3m～∞
- Filter Thread M27.5×0.5mm
- FOV 14.73°×11.79°×8.84°
- Distrotion -0.52%@y=4.5mm
- Weight /
| No. | Item | Specifications | |
| 1 | Max. sensor size | 1/1.8"(9mm) | |
| 2 | Focal Length | 35mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F2.0 | |
| 5 | Working Distance | 0.3~∞ | |
| 6 | FOV(Diagonal x H xV) | 1/1.8" | 14.73°×11.79°×8.84° |
| 1/2.3" | 12.75°×10.2°×7.65° | ||
| 1/2.5" | 11.78°×9.42°×7.07° | ||
| 7 | Object Size (at the minimum focus distance) |
1/1.8" | 79.01×63.21×47.41mm |
| 1/2.3" | 68.08×54.47×40.85mm | ||
| 1/2.5" | 62.81×50.25×37.36mm | ||
| 8 | BFL（in air） | 12.2mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 1/1.8" | -0.52%@y=4.5mm |
| 1/2.3" | -0.4%@y=3.9mm | ||
| 1/2.5" | -0.33%@y=3.59mm | ||
| 11 | Filter thread | M27.5×0.5mm | |

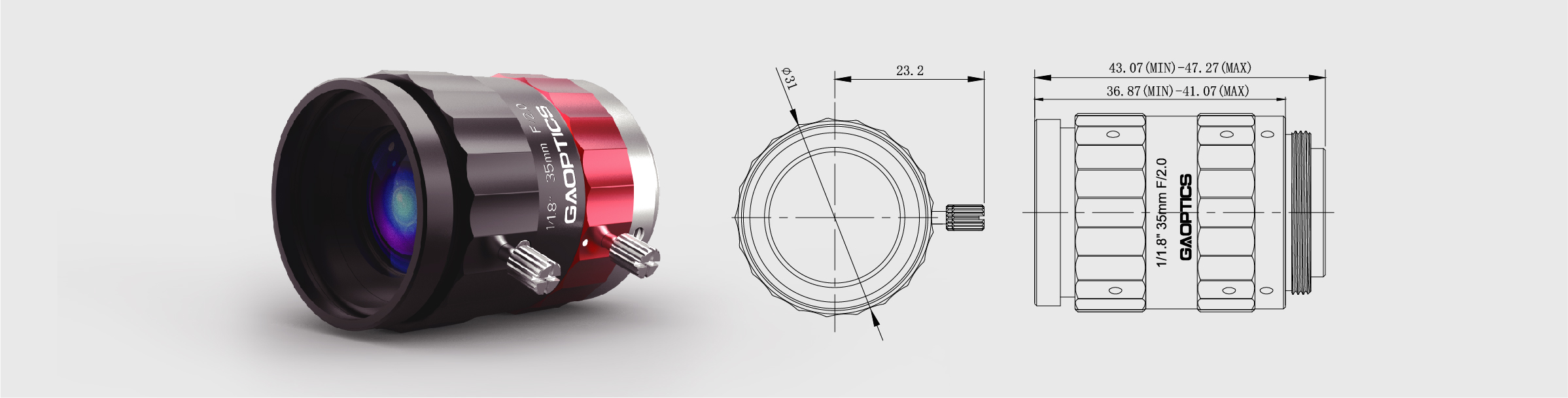

| 12 | Lens Size(W x L) | 38.7X47.27mm | |
| 13 | Weight | / | |
| 14 | Work Temperature | -10℃～+50℃ | |
| 15 | Distance of entrance pupil | 32.497mm | |
| 16 | Diameter of entrance pupil | 18.7mm | |
| 17 | Distance of exit pupil | -57.05mm | |
| 18 | Diameter of exit pupil | 28.38mm | |
| 19 | Total optical length | 49.82mm | |
| 20 | Magnification | -0.112 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 300mm | -0.112 | 0.528 | 0.53 |
| 350mm | -0.098 | 0.7185 | 0.7215 |
| 400mm | -0.085 | 0.9382 | 0.9426 |
| 450mm | -0.077 | 1.1871 | 1.1934 |
| 500mm | -0.068 | 1.4651 | 1.4737 |
| 550mm | -0.062 | 1.74 | 1.751 |
| 600nm | -0.057 | 2.07 | 2.084 |
| 650nm | -0.053 | 2.429 | 2.447 |
| 750mm | -0.046 | 3.232 | 3.26 |
| 1000mm | -0.034 | 5.737 | 5.804 |
GA 1/1.8" 6M FA lens has very good optical performance, suitable for industrial automation, biomedical, industrial inspection and other fields. It adopts 1/1.8" sensor design, with a high resolution of "230lp/mm, 2.2um and 2.4um pixels", high consistency between center and edge, compatible 1/2.5" and 1/1.8" industrial cameras well. Small size and compact design, ideal used limited usage space.
Product characteristics
1. 1/1.8" Small Format design
2. 230lp/mm@±4.5mm, high resolution
3. Focal length covers 8-50 mm
4. Compact design and Small size
5. Special optical optimization, very high consistency between center and edge
