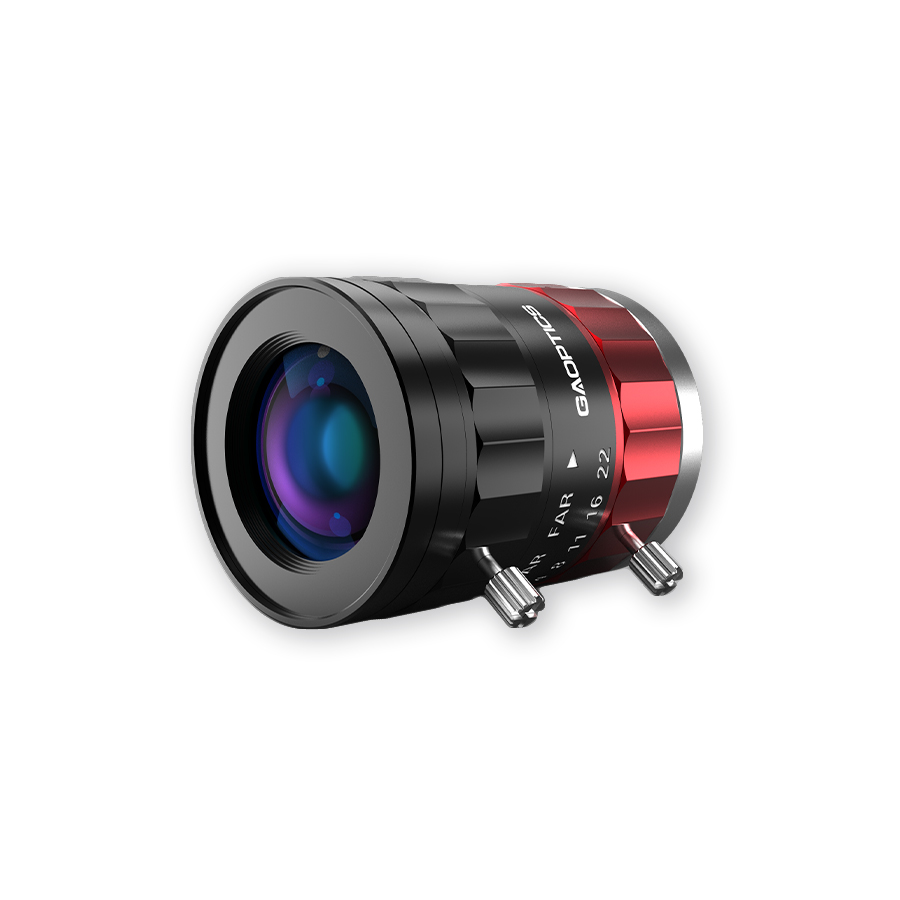

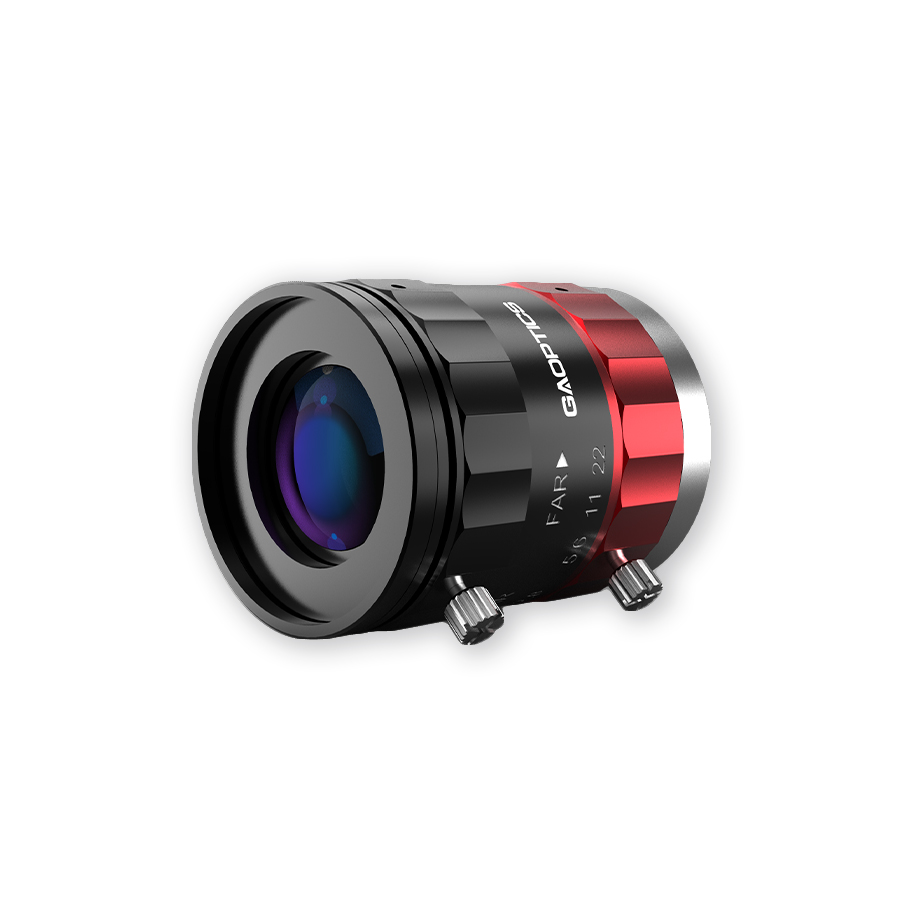

12mm 1" 8M Fixed Focal Length Lens

Price Option

Product No. 600022

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

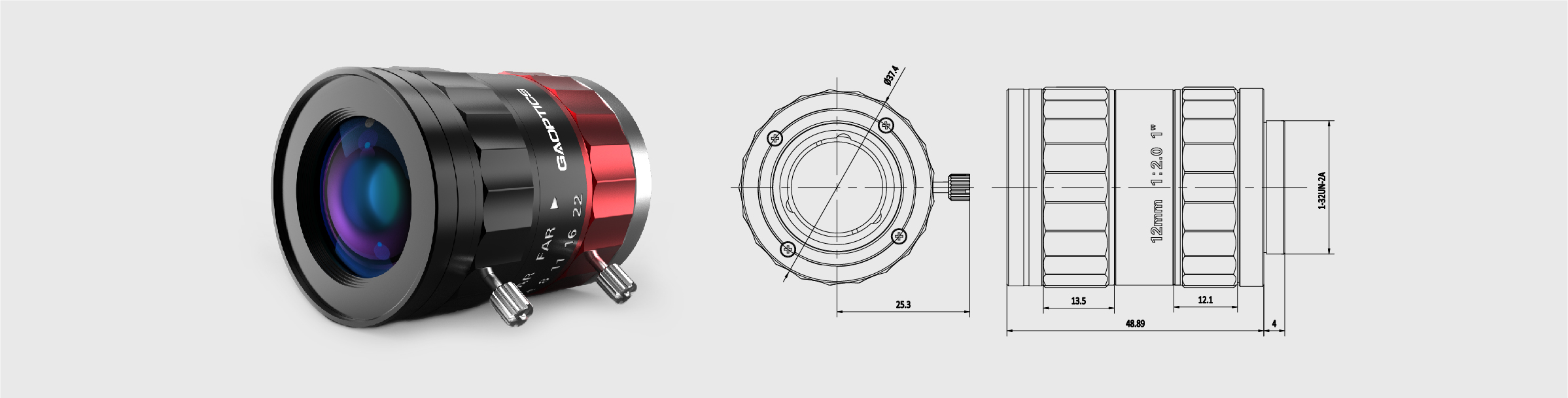

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Focal Length 12mm

F/# 2

Max. sensor size 1"

Mount C

Resolution 8MP

Working Distance 0.1m～∞

Filter Thread M35.5x0.5mm

FOV 69.63°x 60.71°x 44.33°

Distrotion -4.10%@y=8.0mm

Weight /

No.	Item		Specifications
1	Max. sensor size		1"(16mm)
2	Focal Length		12mm
3	Mount		C-Mount
4	F/#		F2.0-F22
5	Working Distance		0.1m~∞
6	FOV (Diagonal x H xV)	1"	69.63°×60.71°×44.33°
		1/2"	37.32°×30.11°×22.74°
		1/3"	28.28°×22.74°×17.12°
7	Object Size (at the minimum focus distance)	1"	155.01×130.05×90.30mm
		1/2"	74.93×59.76×44.73mm
		1/3"	55.99×44.73×33.51mm
8	BFL（in air）		15.07mm
9	Operation	Focus	Manual
		Aperture	Manual
10	Distortion	1"	-4.10%@y=8.0mm
		1/2"	-1.27%@y=4.0mm
		1/3"	-0.74%@y=3.0mm
11	Filter thread		M35.5×0.5mm
12	Lens Size(W x L)		44×52.89mm
13	Weight		/
14	Work Temperature		-20℃～+60℃
15	Distance of entrance pupil		14.08mm
16	Diameter of entrance pupil		5.85mm
17	Distance of exit pupil		-50.64mm
18	Diameter of exit pupil		24.71mm
19	Total optical length		65.34mm
20	Magnification		-0.1079

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
100mm	-0.10793	0.7034	0.7134
150mm	-0.07439	1.5770	1.6109
200mm	-0.05677	2.7938	2.8740
250mm	-0.04590	4.3501	4.5069
300mm	-0.03853	6.2424	6.5134
350mm	-0.03320	8.4672	8.8977
400mm	-0.02916	11.0211	11.6638
450mm	-0.02600	13.9007	14.8160
500mm	-0.02346	17.1026	18.3585
550mm	-0.02137	20.6236	22.2957

Curve Download

16mm 1" 8M Fixed Focal Length Lens

25mm 1" 8M Fixed Focal Length Lens

35mm 1" 8M Fixed Focal Length Lens

50mm 1" 8M Fixed Focal Length Lens

GA 1" 8M Fixed Focal Length Lenses, max imaging sensor size is 16mm, combined with large format, high resolution and compact design, very suitable for the latest high resolution sensors.

Product characteristics
1. 8 Mega pixels, 1" imaging Format，150lp/mm@±8mm;
2. Focal length covering 8-75 mm;
3. Large optical format & high resolution;
4. Compact design, Meet the limited usage space.
