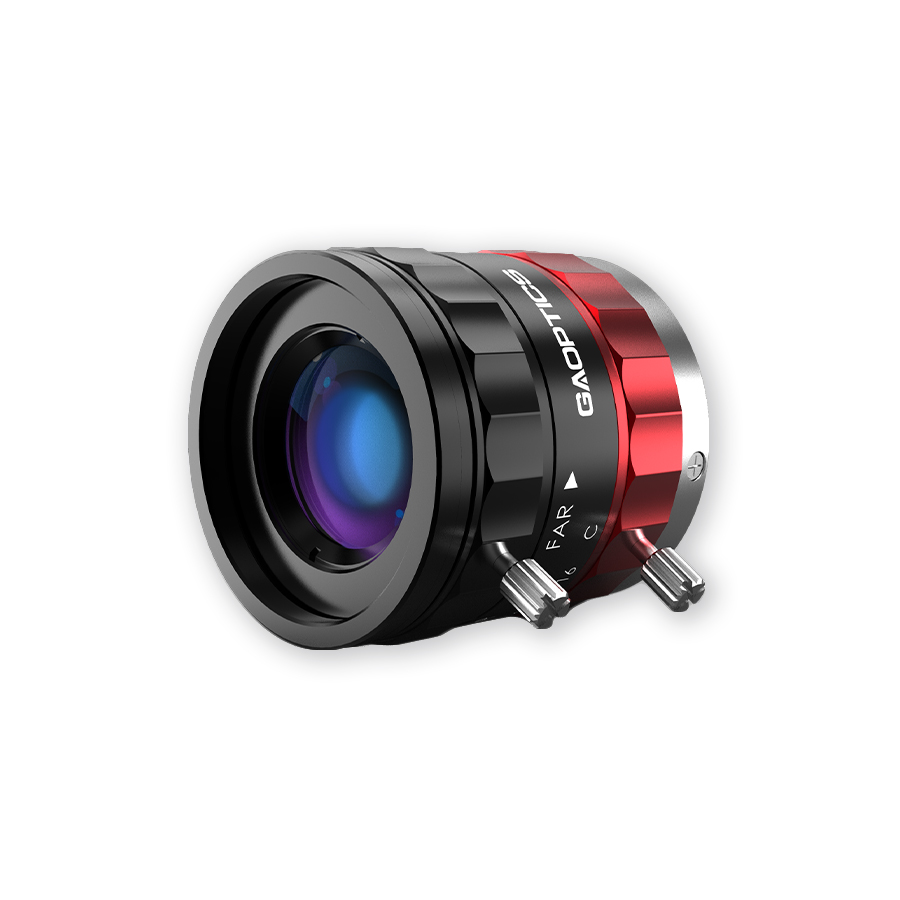

35mm 1" 8M Fixed Focal Length Lens

35mm 1" 8M Fixed Focal Length Lens

Price Option

Product No. 600025

Stock In Stock

Express DHL, Fedex etc.

Product file downloadClick file to download
Focal Length 35mm
F/# 1.8
Max. sensor size 1"
Mount C
Resolution 8MP
Working Distance 0.2m~∞
Filter Thread M30.5x0.5mm
FOV 25.7°x 20.7°x 15.6°
Distrotion 0.33%@y=8.0mm
Weight /
  No. Item Specifications
1 Max. sensor size 1"(16mm)
2 Focal Length 35mm
3 Mount C-Mount
4 F/# F2.0-F11C
5 Working Distance 0.2m~∞
6 FOV(Diagonal x H xV) 1" 25.7°×20.7°×15.6°
1/2" 13.1°×10.5°×7.9°
1/3" 9.8°×7.9°×5.9°
7 Object Size
(at the minimum focus distance)
1" 81.0×64.8×48.5mm
1/2" 40.4×32.4×24.3mm
1/3" 30.3×24.3×18.2mm
8 BFL(in air) 12.96mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 1" 0.33%@y=8.0mm
1/2" 0.08%@y=4.0mm
1/3"  0.05%@y=3.0mm
11 Filter thread M30.5×0.5mm

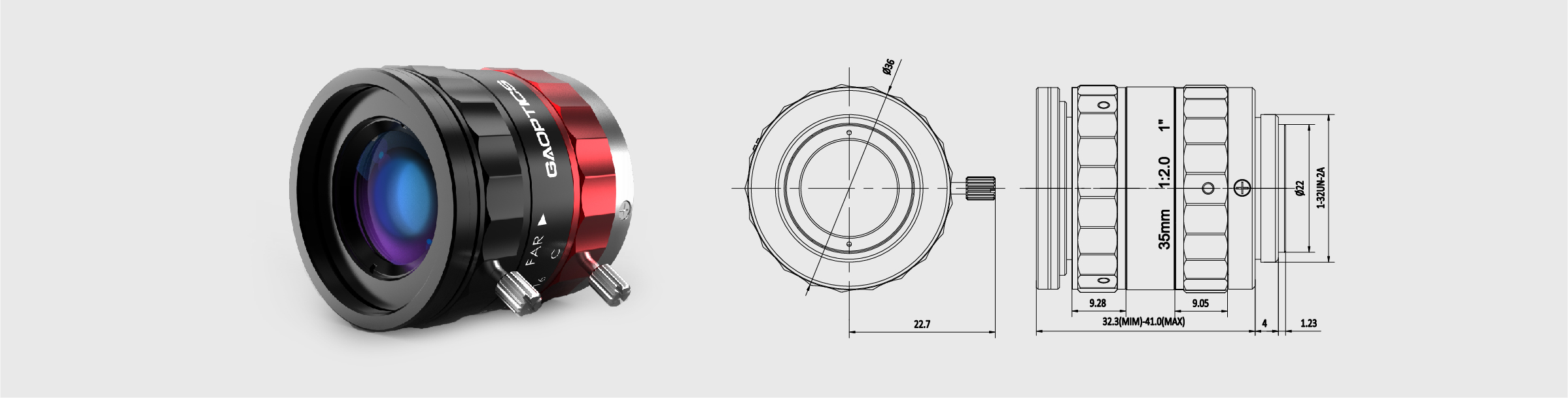

12 Lens Size(W x L) 40.7×46.23mm
13 Weight /
14 Work Temperature -20℃~+60℃
15 Distance of entrance pupil 20.42mm
16 Diameter of entrance pupil 17.46mm
17 Distance of exit pupil -39.65mm
18 Diameter of exit pupil 19.83mm
19 Total optical length 49.58mm
20 Magnification -0.1982

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
200mm -0.19823 0.3325  0.3336
250mm -0.15440 0.5193  0.5215
300mm -0.12644 0.7475  0.7513
350mm -0.10706 1.0170  1.0230
400mm -0.09283 1.3278  1.3367
450mm -0.08194 1.6798  1.6925
500mm -0.07333 2.0730  2.0903
550mm -0.06636 2.5073  2.5304
600mm -0.06060 2.9826  3.0126
650mm -0.05576 3.4990  3.5371

GA 1" 8M Fixed Focal Length Lenses, max imaging sensor size is 16mm, combined with large format, high resolution and compact design, very suitable for the latest high resolution sensors.

Product characteristics
1. 8 Mega pixels, 1" imaging Format,150lp/mm@±8mm;
2. Focal length covering 8-75 mm;
3. Large optical format & high resolution;
4. Compact design, Meet the limited usage space.
