25mm 1" 8M Fixed Focal Length Lens
Price Option
Product No. 600024
Stock In Stock
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 25mm
- F/# 1.8
- Max. sensor size 1"
- Mount C
- Resolution 8MP
- Working Distance 0.15m～∞
- Filter Thread M30.5x0.5mm
- FOV 36.0°x 29.0°x 21.9°
- Distrotion -1.53%@y=8.0mm
- Weight 87.02g
| No. | Item | Specifications | |
| 1 | Max. sensor size | 1"(16mm) | |
| 2 | Focal Length | 25mm | |
| 3 | Mount | C-Mount | |
| 4 | F/# | F1.8-F16C | |
| 5 | Working Distance | 0.15m~∞ | |
| 6 | FOV(Diagonal x H xV) | 1" | 36.0°×29.0°×21.9° |
| 1/2" | 18.3°×14.6°×11.0° | ||
| 1/3" | 13.7°×11.0°×8.2° | ||
| 7 | Object Size (at the minimum focus distance) |
1" | 92.1×73.2×54.6mm |
| 1/2" | 45.4×36.3×27.2mm | ||
| 1/3" | 34.0×27.2×20.4mm | ||
| 8 | BFL（in air） | 12.68mm | |
| 9 | Operation | Focus | Manual |
| Aperture | Manual | ||
| 10 | Distortion | 1" | -1.53%@y=8.0mm |
| 1/2" | -0.38%@y=4.0mm | ||
| 1/3" | -0.22%@y=3.0mm | ||
| 11 | Filter thread | M30.5×0.5mm | |

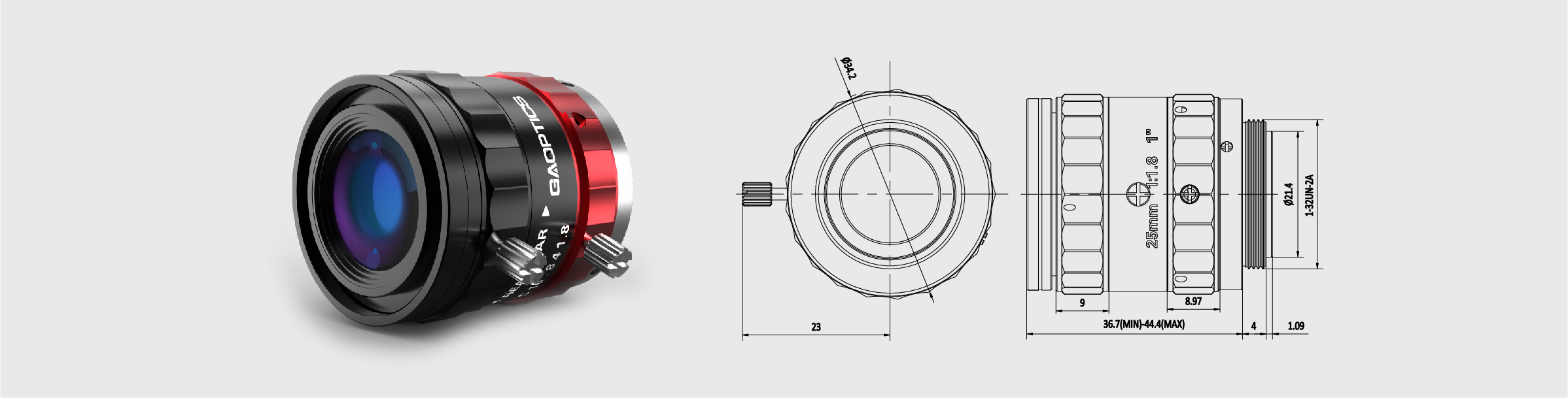

| 12 | Lens Size(W x L) | 40.1×49.49mm | |
| 13 | Weight | 87.02g | |
| 14 | Work Temperature | -20℃～+60℃ | |
| 15 | Distance of entrance pupil | 17.80mm | |
| 16 | Diameter of entrance pupil | 13.89mm | |
| 17 | Distance of exit pupil | -34.97mm | |
| 18 | Diameter of exit pupil | 19.43mm | |
| 19 | Total optical length | 48.94mm | |
| 20 | Magnification | -0.1769 | |
| Focus Distance | Magnification | Front DOV(mm) | Back DOV(mm) |
| 150mm | -0.17694 | 0.3298 | 0.3312 |
| 200mm | -0.13091 | 0.5858 | 0.5893 |
| 250mm | -0.10351 | 0.9146 | 0.9214 |
| 300mm | -0.08582 | 1.3161 | 1.3278 |
| 350mm | -0.07318 | 1.7901 | 1.8086 |
| 400mm | -0.06394 | 2.3364 | 2.3640 |
| 450mm | -0.05678 | 2.9548 | 2.9941 |
| 500mm | -0.05086 | 3.6452 | 3.6992 |
| 550mm | -0.04624 | 4.4075 | 4.4793 |
| 600mm | -0.04222 | 5.2415 | 5.3347 |
GA 1" 8M Fixed Focal Length Lenses, max imaging sensor size is 16mm, combined with large format, high resolution and compact design, very suitable for the latest high resolution sensors.
Product characteristics
1. 8 Mega pixels, 1" imaging Format，150lp/mm@±8mm;
2. Focal length covering 8-75 mm;
3. Large optical format & high resolution;
4. Compact design, Meet the limited usage space.
