Cage Plate Stops for Rods Clamping Size Φ6mm





Share

WeChat

Scan and add Wechat

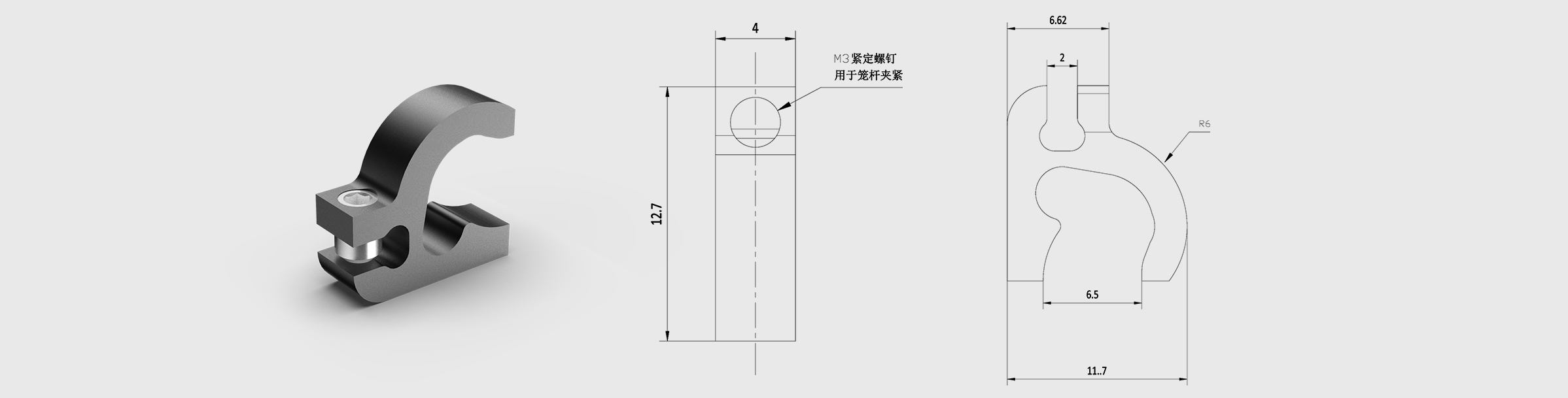

Cage Plate Stops for Rods Clamping Size Φ6mm

Price Option

Product No. 530050

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Clamping Size Φ6mm

Thickness 3.5mm

60 mm Cage Right-Angle Mirror Mount 6mm Tapped Hole M4/M6 Thread

60 mm Cage Right-Angle Mirror Mount M3Smooth Bore Hole M4/M6 Thread

Cage Plate Stops for Rods Clamping Size Φ6mm

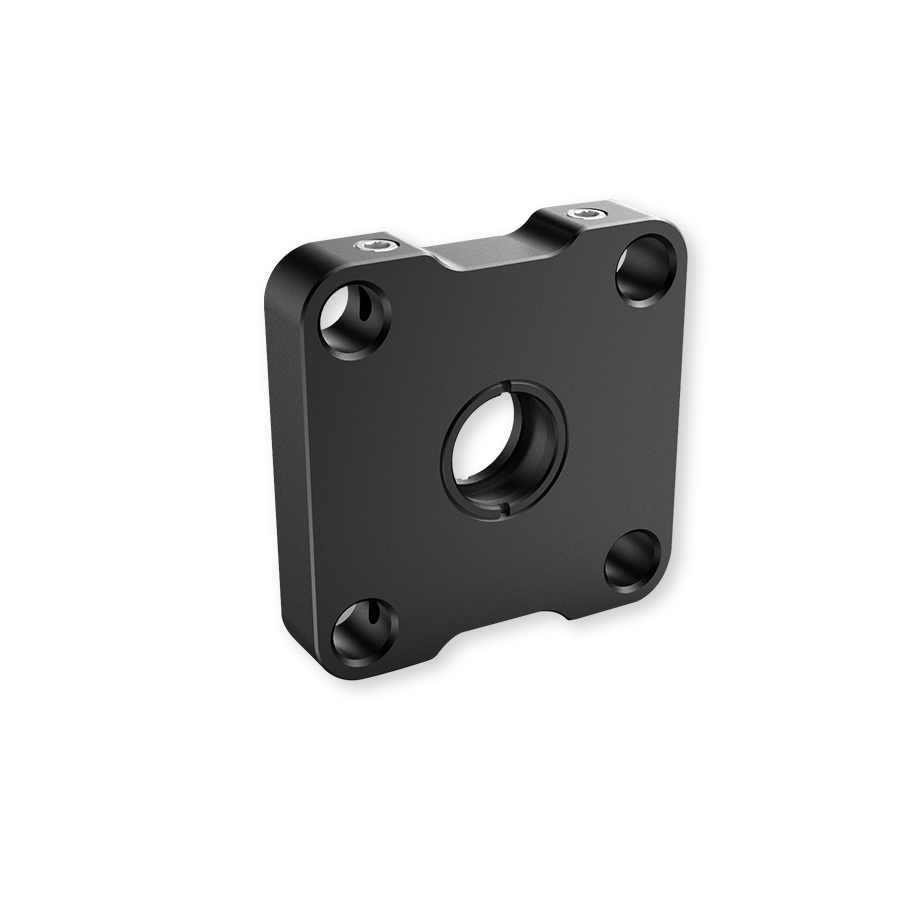

30 mm Cage Plates Optic Diameter Φ12.7mm Retaining Ring Fixed

GU Optics's Cage Plate Stops mark the position of a cage plate, allowing it to be reliably moved and repositioned in a cage system. These clamps are 3.5 mm thick and compatible with our Ø6 mm cage rods for 30 mm and 60 mm cage systems. Utilizing a flexure design, the clamps are secured in place using a 1.5 mm hex key. They can be easily clamped onto a cage rod without removing other components.
