Home  Products  60 mm Cage Right-Angle Mirror Mount  530048

60 mm Cage Right-Angle Mirror Mount 6mm Tapped Hole M4/M6 Thread





  Likes

Share

WeChat

Scan and add Wechat

60 mm Cage Right-Angle Mirror Mount 6mm Tapped Hole M4/M6 Thread

Price Option

Product No. 530048

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Size of Compatible Optics 50.8mm

Cage Rod Features 6mmTapped-Holes

Thread M4/M6

Ø2" Lens Tubes L=38mm Stackable Lens Tubes

Ø2" Lens Tubes L=50mm Stackable Lens Tubes

Ø2" Lens Tubes L=75mm Stackable Lens Tubes

60 mm Cage Cubes M3、M4

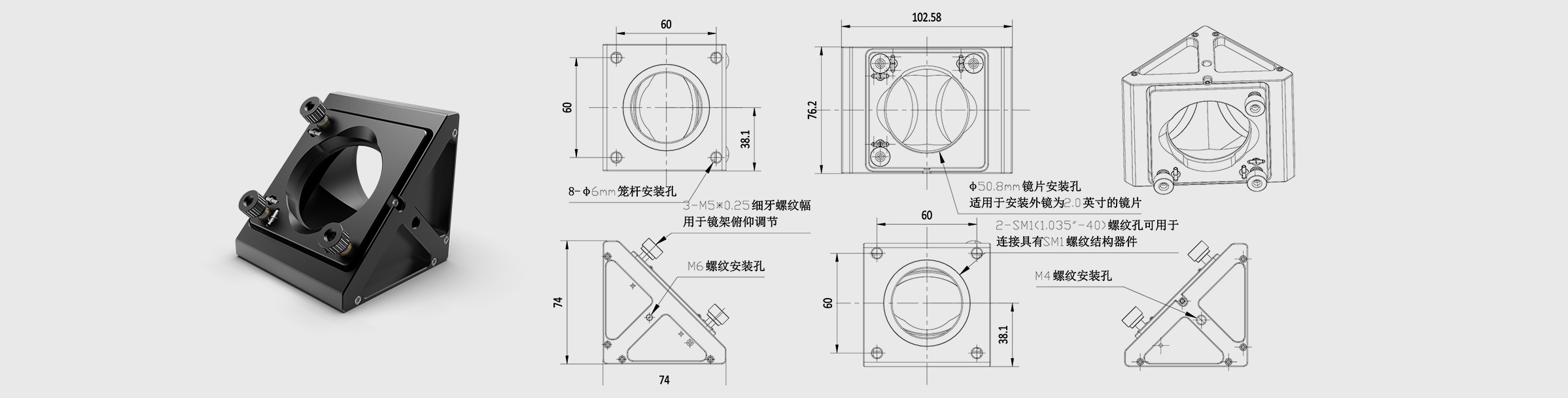

GU Optics's Right-Angle Kinematic Mounts are designed for easy integration into our 60 mm cage system. All of these mounts have SM2-threaded bores on the entrance and exit ports for lens tube integration. The inclined surface is used to install Φ50.8 mm optical components with a minimum thickness of 6 mm, and fixed by locking screws. With three Adjusters to realized ±4º Tip and Tilt Adjustment and ±3 mm Linear Translation. Two of these adjusters include removable knobs, while the third must be tuned with a 2 mm hex key. The Top and Bottom of the mount with M4 Taps and M6 Taps for posts mounting.
