RED DIODE LASER 660nm 1~180mW

Price Option Please Consult

Product No. 470031

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Wavelength 660±5nm

Power 1~180mW

Operating Mode CW

Horizontalr ＞1,10,20,…, 180nW

Power Stability (rms,over 4 hours) ＜1%, ＜2%, ＜3% (＜0.5%, optional)

Transverse Mode Near TEM00

Beam diameter at the aperture (1/e²,mm) ~3.0 (~1.2, optional)

Beam Divergence, full angle ＜1.0 mrad

Polarization Ratio ＞50:1 (＞100:1, Optional)Horizontal±5 °(Vertical Optional)

Warm-up Time ＜5min

Beam Height From Base Plate 24.8mm

Operating Temperatur 10-35℃

INFRARED DIODE LASER 785nm 1~100mW

INFRARED DIODE LASER 808nm 1~2500mW

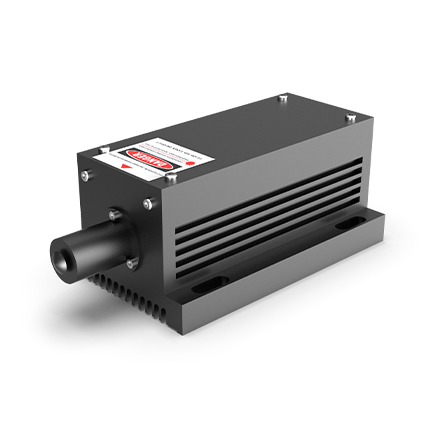

INFRARED DIODE LASER 808nm 3~6W

INFRARED DIODE LASER 830nm 1~120mW

Central wavelength (nm)		660±5
Operating mode		CW
Horizontalr (mW)		>1,10,20,…, 180
Power stability (rms, over 4 hours)		<1%, <2%, <3% (<0.5%, optional)
Transverse mode		Near TEM00
M2 factor		<1.5 (<1.2, optional)
Beam diameter at the aperture (1/e2,mm)		~3.0 (~1.2, optional)
Beam divergence, full angle (mrad)		<1.0
Polarization ratio		>50:1 (>100:1, optional) Horizontal±5 degree (Vertical Optional)
Warm-up Time (minutes)		<5
Pointing stability after warm-up(mrad)		<0.05
Beam height from base plate (mm)		24. 8
Operating temperature (℃)		10~35
Power supply	85-264VAC	4700P1 / 4700P2 (Frequency for 1Hz-30kHz)
	100-240VAC	4700P4 (Frequency for 30kHz -100kHz)
TTL / Analog modulation		，10KHz-30KHz 30kHz-100kHz
Expected lifetime (hours)		10000
Warranty		1 year
