 Quick-Release Plate Filter Clamp

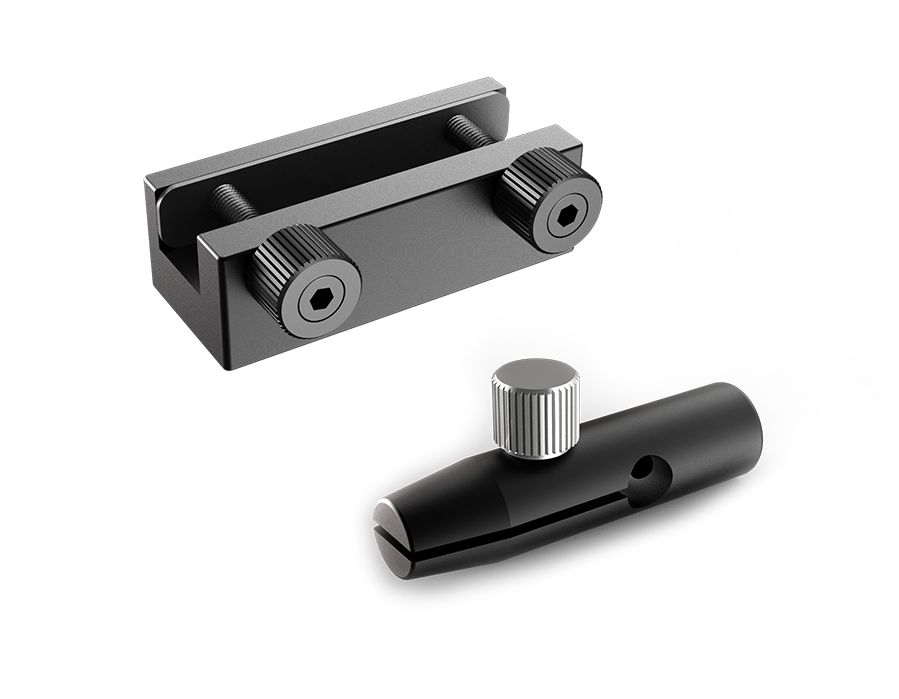

Quick-Release Plate Filter Clamp

Product characteristics
1. 522800 : Maximum Filter Thickness : 10 mm
2. Both locking arms integrate rubber cushions that protect any mounted filters from damage
3. Quick-Release Filter Holder is an ideal solution for applications that frequently need filters switched
4. Mounts Directly to Posts via a (M4) Counterbored Hole

Products Related Download

Clamping Thickness of Optics

Select..  

Weight

Select..  

Clear

Pro No.

Parameter

Clamping Thickness of Optics

Weight

Delivery time

Compare

Price

Purchase

522800

Parameter list

0-12.5mm

0.07kg

In stock



$38.67



522801

Parameter list

1-1.5mm

0.01kg

In stock



$27.50



Tip-Tilt / Rotation Mount

Manual Rotation Mounts

Filter Mount

Manual Filter Wheels
