Rotation Mount

 Tip-Tilt / Rotation Mount

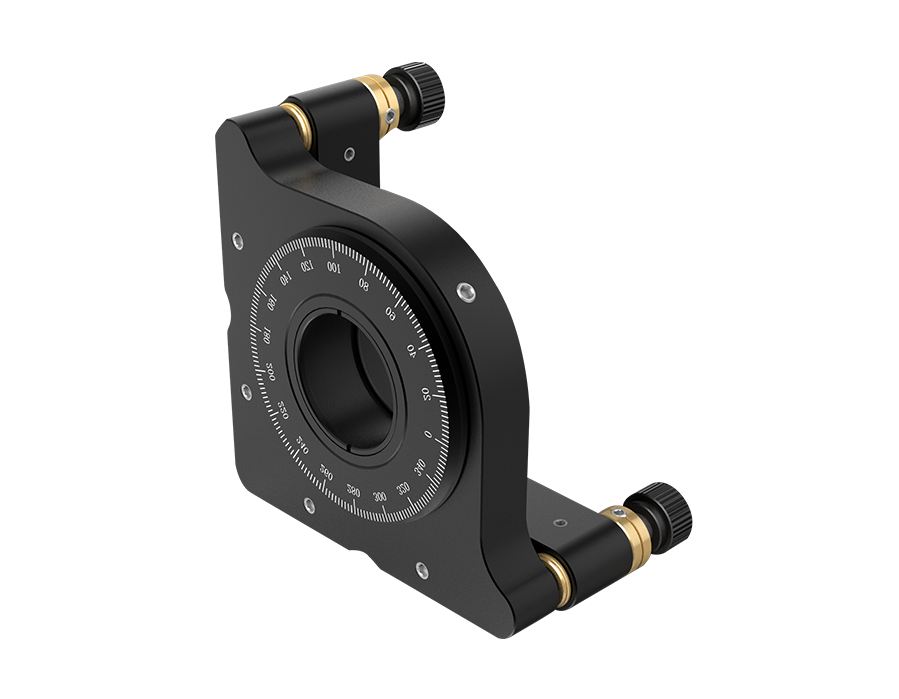

Tip-Tilt / Rotation Mount

Product characteristics
1. The rotation of the mount and position of the kinematic adjusters can be independently locked in position with locking screws
2. Capable of mounting Φ1/2", Φ1", or Φ2" Optics
3. Provides 360° Rotation
4.A scribe every 1°, a longer mark every 10°, and a number mark every 20°.
5. The kinematic adjustment is provided by adjusters with brass bushings to provide smooth adjustment
6. ±3.5° kinematic tip/tilt adjustment
7. One SM Retaining Ring Included

Products Related Download

Size of Compatible Optics

Select..  

Weight

Select..  

Clear

Pro No.

Parameter

Size of Compatible Optics

Weight

Delivery time

Compare

Price

Purchase

522200

Parameter list

Φ12.7mm

0.08kg

Consult



$203.33



522201

Parameter list

Φ25.4mm

0.2kg

In stock



$218.50



522202

Parameter list

Φ50.8mm

0.26kg

In stock



$305.00


