Home  Products 

Optical Board

 Optical Breadboards

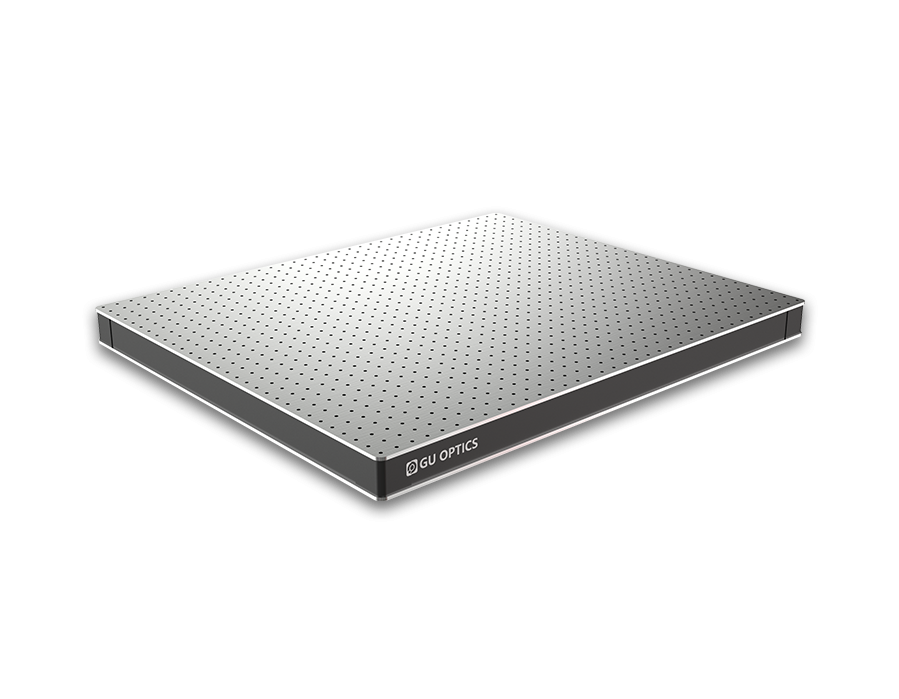

Optical Breadboards

The Honeycomb isolation platform features high stiffness, improving accuracy of the experiment and stabilizing the installation of optomechanics, allowing it to be used as the carrier of optical experiments, medical experiments, precision instrument production tests, aerospace experiments, etc. Featuring a honeycomb hollow structure and mainly composed of upper and lower plates, isolation cups and honeycomb core plates. The panel is made of SUS430 high permeability stainless steel, non-rusting surface, which ensures the cleanliness in the laboratory. The Isolation cup is formed by Aluminium stamping, which can prevent the noise from oscillating internally and causing errors in the experiment. At the same time, it can help dust-proof, waterproof and prevent small items falling into it and allowing for easy cleaning. The internal honeycomb core plate adopts trapezoidal thin steel plates that are bonded to each other in a honeycomb shape, maximizing stiffness and reducing the weight of the core plate.

Product characteristics
1. Customized shape: customized style includes special fixing screw holes, different shapes, through holes, large instrument through holes, etc., to meet the needs of customers.

Structure Honeycomb core with three layers

Working Surface Thickness (4.0mm ), 430 Stainless Steel

Side Panels 2.0mm Highly Damped Composite Wood

Bottom Panel 4.0 mm thick Carbon Steel

Surface Flatness ±0.05mm / 600mm*600mm square

Mounting m6,25mm grid, 50mm edge

Mounting Holes easy to clean cup-shaped cylindrical seal (Depth 25mm)

Damping Performance Breadboards standard damping
