 Solid Aluminum Breadboard

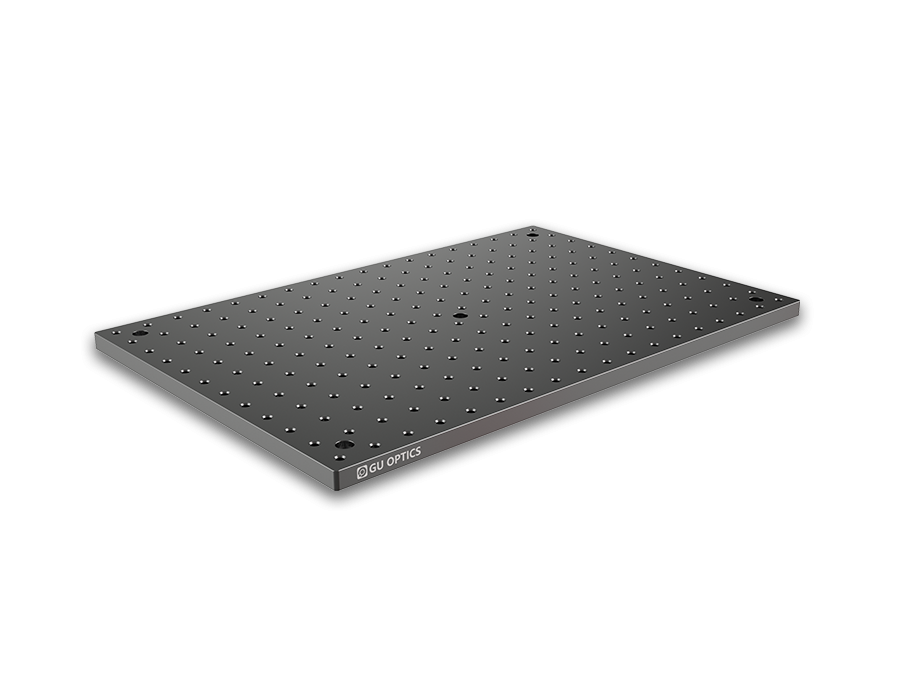

Solid Aluminum Breadboard

GU Optics' Solid Aluminum Breadboard is lightweight and easy to move, with an oxidized surface layer, high precision and durable. Its arrays standard hole distance and threads are convenient to fix various optic mounts. A variety of materials for optitions SUS 430 stainless steel, 6061 hard aluminum, 304 stainless steel. OEM service is avaliable.

Product characteristics
1. Standard m6 tapped holes, hole distance 25*25mm, easy to fix various mounts
2. Thickness: 13mm/19mm
3. Flatness: 0.05mm/m²
4. Material: SUS 430 stainless steel, 6061 hard aluminum, 304 stainless steel
5. Surface with black-oxide process, high precision and durable (stainless steel material without black coating)
6. The following materials are aluminum alloy, different sizes and materials can be customized

Products Related Download

Size

Select..  

Thickness

Select..  

Flatness

Select..  

Clear

Pro No.

Parameter

Size

Thickness

Flatness

Delivery time

Compare

Price

Purchase

516000

Parameter list

200×200mm

13mm

0.05mm

Consult



$51.00



516001

Parameter list

250×250mm

13mm

0.05mm

Consult



$71.00



516002

Parameter list

300×300mm

13mm

0.05mm

Consult



$99.00



516003

Parameter list

300×600mm

13mm

0.05mm

Consult



$183.00



516004

Parameter list

300×900mm

13mm

0.2mm

Consult



$269.00



516005

Parameter list

300×1200mm

13mm

0.3mm

Consult



$397.00



516006

Parameter list

450×450mm

13mm

0.05mm

Consult



$198.00



516007

Parameter list

450×600mm

13mm

0.1mm

Consult



$269.00



516008

Parameter list

600×600mm

13mm

0.1mm

Consult



$397.00



516009

Parameter list

600×900mm

13mm

0.15mm

Consult



$552.00



516010

Parameter list

600×1200mm

19mm

0.2mm

Consult



$963.00



516011

Parameter list

900×900mm

19mm

0.15mm

Consult



$1077.00



516012

Parameter list

900×1200mm

19mm

0.25mm

Consult



$1417.00



516013

Parameter list

1200×1200mm

19mm

0.3mm

Consult



$1898.00


