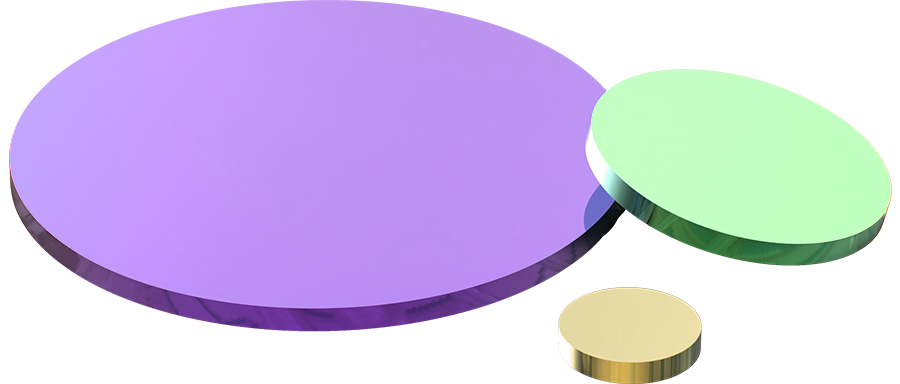

High Performance Shortpass Filter

Shortpass filters provided by Grand Unified Optics feature wide blocking bandwidth, high blocking depth,high transmission and high blocking slope. Widely used in fluorescence excitation spectrum measurement, Raman spectrum, spectral group, astronomical observation application etc., they are also be widely used in imaging optical systems and machine vision systems to eliminate interfering light whilst improving the imaging quality and sensitivity of the system.

Material UV Fused Silica

Transmitted Wavefront error λ/ 4 @ 633 nm

Parallelism ＜30arcsec

Surface Quality 40-20

Diameter Tolerance ＋0.0/-0.1mm

Thickness 2mm ±0.2mm

*Central Wavelength (λC)Tolerance ±1%

Transmission Tavg＞90%

Blocking Depth OD2

**Blocking Slope ＜1%

CA ＞90%

Angle of Incidence 0°

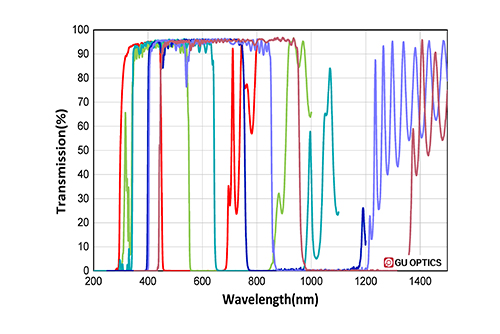

Products Spectral curve Related Download

Dia

Select..  

CWL

Select..  

Transmission Wavelength

Select..  

Blocking Band

Select..  

Clear

Pro No.

Parameter

Dia

CWL

Transmission Wavelength

Blocking Band

Delivery time

Compare

Price

Purchase

218500

Parameter list

Φ12.5mm

400nm

300~390nm

415~610nm

In stock



$91.67



218501

Parameter list

Φ12.5mm

425nm

300~415nm

440~635nm

In stock



$91.67



218502

Parameter list

Φ12.5mm

450nm

300~440nm

465~660nm

In stock



$91.67



218503

Parameter list

Φ12.5mm

475nm

300~465nm

490~685nm

In stock



$91.67



218504

Parameter list

Φ12.5mm

500nm

300~490nm

515~715nm

In stock



$91.67



218505

Parameter list

Φ12.5mm

525nm

300~515nm

540~740nm

In stock



$91.67



218506

Parameter list

Φ12.5mm

550nm

350~535nm

565~825nm

In stock



$91.67



218507

Parameter list

Φ12.5mm

575nm

350~560nm

590~850nm

In stock



$91.67



218508

Parameter list

Φ12.5mm

600nm

350~585nm

615~900nm

In stock



$91.67



218509

Parameter list

Φ12.5mm

625nm

350~610nm

640~925nm

In stock



$91.67



218510

Parameter list

Φ12.5mm

650nm

350~635nm

665~960nm

In stock



$91.67



218511

Parameter list

Φ12.5mm

675nm

350~660nm

690~1000nm

In stock



$91.67



218512

Parameter list

Φ12.5mm

700nm

400~685nm

715~1050nm

In stock



$91.67



218513

Parameter list

Φ12.5mm

725nm

400~710nm

740~1090nm

In stock



$91.67



218514

Parameter list

Φ12.5mm

750nm

400~735nm

775~1125nm

In stock



$91.67



218515

Parameter list

Φ12.5mm

775nm

400~760nm

795~1155nm

In stock



$91.67



218516

Parameter list

Φ12.5mm

800nm

400~785nm

825~1190nm

In stock



$91.67



218517

Parameter list

Φ12.5mm

825nm

400~810nm

850~1190nm

In stock



$91.67



218518

Parameter list

Φ12.5mm

850nm

400~835nm

880~1190nm

In stock



$91.67



218519

Parameter list

Φ12.5mm

875nm

425~860nm

905~1220nm

In stock



$91.67


