Longpass Filter

 Economical Longpass Filter

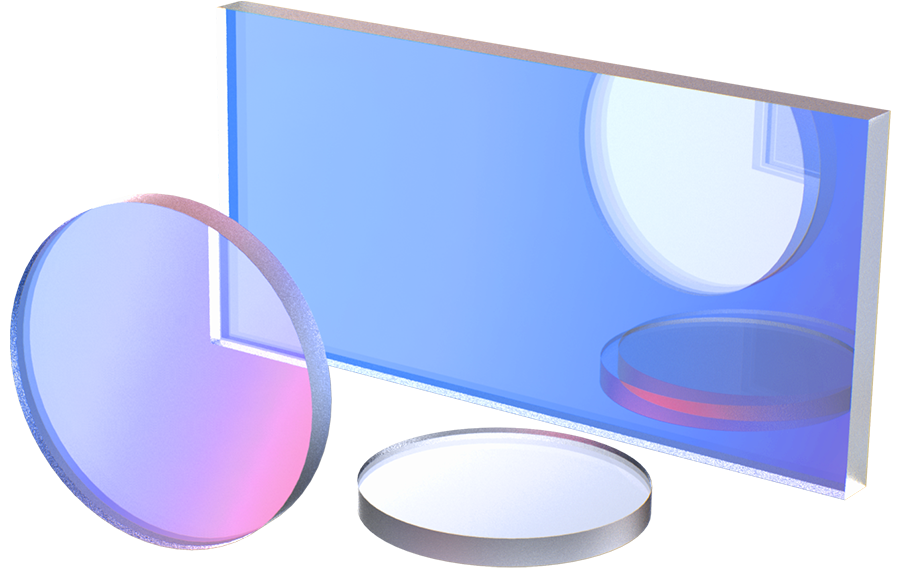

Economical Longpass Filter

Longpass filters provide a wide blocking bandwidth, high blocking depth, high transmission and high blocking slope. They are widely used in fluorescence excitation spectrum measurement, Raman spectrum, spectral group and astronomical observation applications. Widely used in imaging optical systems and machine vision systems to eliminate interfering light, the provide improved the imaging quality and sensitivity of the system.

Material H-K9L Optical Glass

Transmitted Wavefront error λ/ 4 @ 633 nm

Parallelism ＜30arcsec

Surface Quality 40-20

Diameter Tolerance ＋0.0/-0.1mm

Thickness 2mm ±0.2mm

* Central Wavelength(λC) Tolerance ±2%

Transmission Tavg＞85%

Blocking depth OD2

** Blocking slope ＜3%

CA ＞90%

Angle of Incidence 0°

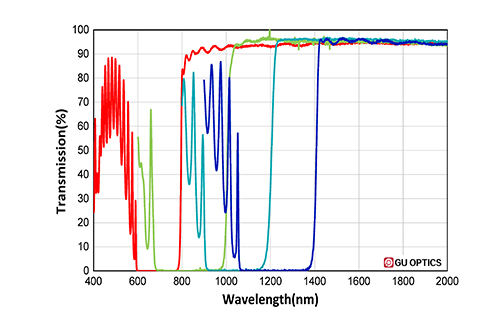

Products Spectral curve Related Download

Dia

Select..  

CWL

Select..  

Transmission Wavelength

Select..  

Blocking Band

Select..  

Clear

Pro No.

Parameter

Dia

CWL

Transmission Wavelength

Blocking Band

Delivery time

Compare

Price

Purchase

208587

Parameter list

Φ12.5mm

400nm

420~2000nm

200~380nm

In stock



$39.17



208588

Parameter list

Φ12.5mm

450nm

470~2000nm

200~435nm

In stock



$39.17



208589

Parameter list

Φ12.5mm

500nm

520~2000nm

200~485nm

In stock



$39.17



208590

Parameter list

Φ12.5mm

550nm

575~2000nm

415~520nm

In stock



$39.17



208591

Parameter list

Φ12.5mm

600nm

625~2000nm

460~575nm

In stock



$39.17



208592

Parameter list

Φ12.5mm

650nm

675~2000nm

495~615nm

In stock



$39.17



208593

Parameter list

Φ12.5mm

700nm

725~2000nm

535~665nm

In stock



$39.17



208594

Parameter list

Φ12.5mm

750nm

780~2000nm

565~720nm

In stock



$39.17



208595

Parameter list

Φ12.5mm

800nm

830~2000nm

600~765nm

In stock



$39.17



208596

Parameter list

Φ12.5mm

850nm

880~2000nm

635~810nm

In stock



$39.17



208597

Parameter list

Φ12.5mm

900nm

935~2000nm

675~860nm

In stock



$39.17



208598

Parameter list

Φ12.5mm

950nm

985~2000nm

715~905nm

In stock



$39.17



208599

Parameter list

Φ12.5mm

1000nm

1035~2000nm

750~955nm

In stock



$39.17



208600

Parameter list

Φ12.5mm

1050nm

1085~2000nm

790~1005nm

In stock



$39.17



208601

Parameter list

Φ12.5mm

1100nm

1135~2000nm

825~1050nm

In stock



$39.17



208602

Parameter list

Φ12.5mm

1150nm

1190~2000nm

875~1100nm

In stock



$39.17



208603

Parameter list

Φ12.5mm

1200nm

1240~2000nm

920~1165nm

In stock



$39.17



208604

Parameter list

Φ12.5mm

1250nm

1290~2000nm

960~1205nm

In stock



$39.17



208605

Parameter list

Φ12.5mm

1300nm

1340~2000nm

1010~1255nm

In stock



$39.17



208606

Parameter list

Φ12.5mm

1350nm

1390~2000nm

1055~1300nm

In stock



$39.17


