Bandpass Filter

 Domestic Bandpass Filters

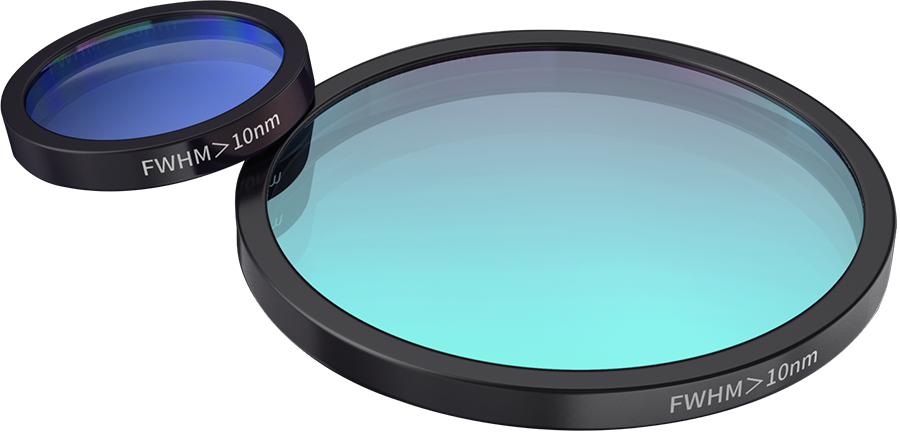

Domestic Bandpass Filters

The transmitted band of bandpass filter is surrounded by two cut-off bands. They are used to pass through partial wavelength and block all other wavelengths. Bandpass Filters are ideal for many applications, such as spectroscopy, clinical chemistry, or imaging. Grand Unified Optics provides a variety of half-bandwidth bandpass interference filter with a variety of transmission and sizes to suit your application.

Center Wavelength（CWL） As product list

Central Wavelength Tolerance ±2nm

Full Width-Half Max（FWHM） 10nm

Full Width-Half Max Tolerance ±2nm

Transmission（T） As product list

Blocking Better than OD3@200~1200nm

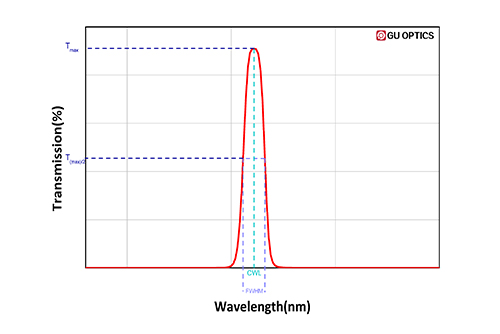

Products Spectral curve Related Download

Dia

Select..  

CWL

Select..  

 214nm
 220nm
 254nm
 275nm
 280nm
 340nm
 365nm
 380nm
 390nm
 394nm
 405nm
 410nm
 415nm
 420nm
 430nm
 435nm
 440nm
 450nm
 457nm
 460nm
 467nm
 470nm
 480nm
 488nm
 490nm
 500nm
 505nm
 510nm
 514.5nm
 520nm
 525nm
 530nm
 532nm
 540nm
 543nm
 546nm
 550nm
 560nm
 565nm
 568.2nm
 570nm
 577.7nm
 580nm
 589.6nm
 590nm
 600nm
 610nm
 620nm
 630nm
 632.8nm
 636nm
 640nm
 647nm
 650nm
 656.3nm
 660nm
 668nm
 670nm
 671nm
 675nm
 680nm
 685nm
 690nm
 694.3nm
 700nm
 710nm
 720nm
 730nm
 740nm
 750nm
 760nm
 768nm
 770nm
 775nm
 780nm
 785nm
 790nm
 800nm
 810nm
 815nm
 820nm
 825nm
 830nm
 840nm
 850nm
 855nm
 860nm
 870nm
 875nm
 880nm
 885nm
 890nm
 900nm
 905nm
 910nm
 920nm
 930nm
 940nm
 950nm
 960nm
 970nm
 980nm
 990nm
 1064nm
 1550nm

FWHM

Select..  

Clear

Pro No.

Parameter

Dia

CWL

FWHM

Delivery time

Compare

Price

Purchase

198527

Parameter list

Φ12.7mm

340nm

10nm

＞40%

In stock



$71.30



198528

Parameter list

Φ12.7mm

365nm

10nm

＞30%

In stock



$71.30



198529

Parameter list

Φ12.7mm

380nm

10nm

＞30%

In stock



$63.89



198530

Parameter list

Φ12.7mm

390nm

10nm

＞33%

In stock



$63.89



198531

Parameter list

Φ12.7mm

394nm

10nm

＞33%

In stock



$63.89



198532

Parameter list

Φ12.7mm

405nm

10nm

＞35%

In stock



$63.89



198533

Parameter list

Φ12.7mm

410nm

10nm

＞43%

In stock



$63.89



198534

Parameter list

Φ12.7mm

415nm

10nm

＞43%

In stock



$63.89



198535

Parameter list

Φ12.7mm

420nm

10nm

＞45%

In stock



$63.89



198536

Parameter list

Φ12.7mm

430nm

10nm

＞45%

In stock



$63.89



198537

Parameter list

Φ12.7mm

435nm

10nm

＞45%

In stock



$63.89



198538

Parameter list

Φ12.7mm

440nm

10nm

＞45%

In stock



$63.89



198539

Parameter list

Φ12.7mm

450nm

10nm

＞45%

In stock



$63.89



198540

Parameter list

Φ12.7mm

457nm

10nm

＞45%

In stock



$63.89



198541

Parameter list

Φ12.7mm

460nm

10nm

＞45%

In stock



$63.89



198542

Parameter list

Φ12.7mm

467nm

10nm

＞45%

In stock



$63.89



198543

Parameter list

Φ12.7mm

470nm

10nm

＞45%

In stock



$63.89



198544

Parameter list

Φ12.7mm

480nm

10nm

＞45%

In stock



$63.89



198545

Parameter list

Φ12.7mm

488nm

10nm

＞45%

In stock



$63.89



198546

Parameter list

Φ12.7mm

488nm

10nm

＞70%

In stock



$63.89



More products >>

Curve download

Imported Bandpass Filters

High Performance Narrow Band Bandpass Filter

Fluorescence Bandpass Filter

High Performance Longpass Filter
