Rod Clamps

 Vertical Rod Clamps

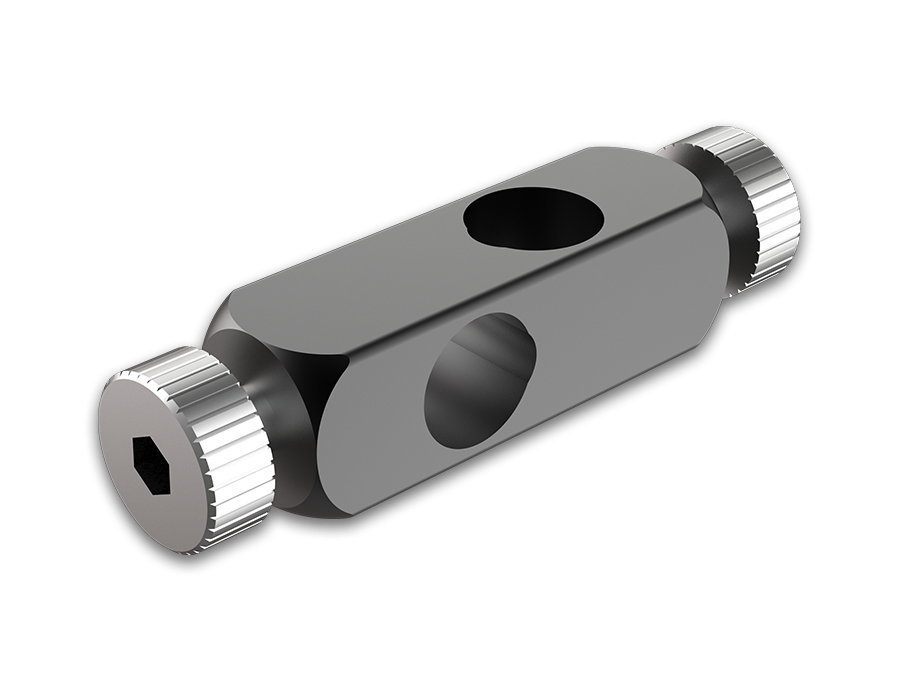

Vertical Rod Clamps

Product characteristics
1. Screw knob design, fix two posts at 90°.
2. Can be easily tightened by hand to fix the post preventing any sliding.
3. Can fix 2 posts with diameter of 12.7 mm.
4. 90 ° to each other.
5. Each post is with a independent screw knob, and can be operated separately.

Products Related Download

Clamping Size A

Select..  

 Φ12.7mm

Clamping Size B

Select..  

 Φ12.7mm

Weight

Select..  

 0.05kg

Clear

Pro No.

Parameter

Clamping Size A

Clamping Size B

Weight

Delivery time

Compare

Price

Purchase

524500

Parameter list

Φ12.7mm

0.05kg

In stock



$13.33


