532nm Aperture=4mm Free Space Isolators





Share

WeChat

Scan and add Wechat

532nm Aperture=4mm Free Space Isolators

Price Option Please Consult

Product No. 730800

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Center Wavelength 532nm

Working Wavelength ≥±10nm

Peak Transmittance ＞90%

M² ＜10%

Peak Isolation ＞35dB

Aperture 4mm

Average Power 50W

Damage Threshold 3.5J/cm²@10ns

Storage Temperature Range （-20~70℃）

Operating Temperature Range 10~30℃

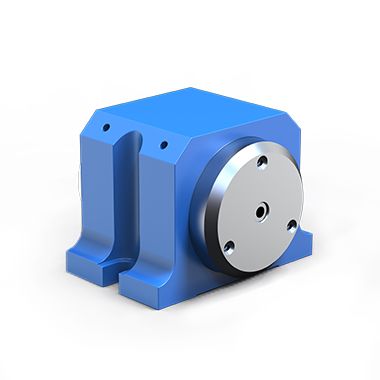

532nm Aperture=4mm Polarization Components

532nm Aperture=4mm Polarization Components

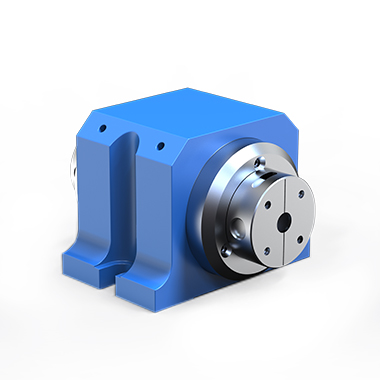

1064nm Aperture=5mm Faraday Rotator

1064nm Aperture=5mm Faraday Rotator

532nm Aperture=4mm Free Space Isolators

532nm Aperture=4mm Free Space Isolators

1064nm Aperture=5mm Free Space Isolators

1064nm Aperture=5mm Free Space Isolators

GU Optical has launched Free Space Isolators with wavelengths of 532nm and 1064nm. This product has the characteristics of high power, high transmittance, high isolation, and high laser damage threshold. It is more suitable for maintaining the linear polarization state of light and avoiding returning light. For applications such as adverse effects on the laser system, we also provide customized services for this type of product for different applications.
