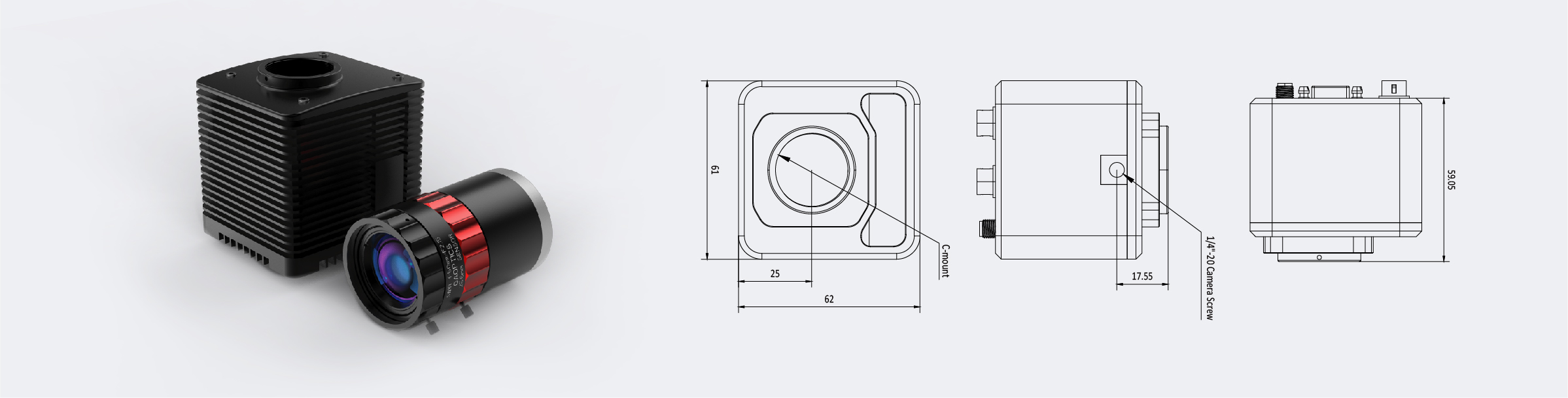

900-1700nm Resolution640×512 Camera Link Mount Camera





  Likes

Share

WeChat

Scan and add Wechat

900-1700nm Resolution640×512 Camera Link Mount Camera

Price Option

Product No. 680107

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View Datesheet

Parameters Specification Data curve Related Products Description

Working Wavelength 900～1700nm

Resolution 640×512

Pixel Size 15μm

CCD 9.6×7.68mm

Frame Rate（Hz） 300

Size 67×70×60mm

Mount C

Digital Output CamLink

Stock No.	680106	680107
Detector	InGaAs Focal Plane Detector
Working Wavelength	400 ~ 1700 nm	900 ~ 1700 nm
Resolution	640 x 512	640 x 512
Pixel Size	15 μm	15 μm
Sensor Size	9.6mm x 7.68mm
Quantum Efficiency	＞70 % (1.0 ~ 1.6 um）
Frame Rate	300 Hz
Integral Type	snapshot
Integration Time	50 μs ~ 20 ms, 100Hz最大积分9ms
On-Board Image Processing	Correction of bad points/Image smoothing/Image denoising/Controllable shutter compensation
ADC	14 bit
Analog Video Output	PAL
Digital output	SDR 26 pin connector，Base Camera Link
External synchronization	Camelink CC1
Control serial port	Camelink SerTC，SerTFG， 115200 bps
External synchronization delay	＜ 1us
Power input	DC 8-24V
power	＜3W （no TEC）
Size	67 mm x 70 mm x 60 mm
Weight	175 g（Not include lens）
Lens Mount	C-court
Ambient Temperature	-20 ℃ ~ +50 ℃
Storage Temperature	-40 ℃ ~ + 70 ℃

Curve Download

900-1700nm Resolution640×512 GE Mount Camera

400-1700nm Resolution640×512 Camera Link Mount Camera

900-1700nm Resolution640×512 Camera Link Mount Camera

Our SWIR camera working wavelength is 900-1700nm and resolution up to 640X512, for different applications, we push out USB, Gigabit Network and Camera Link interface mount cameras.
