400-1700nm Resolution640×512 GE Mount Camera





  Likes

Share

WeChat

Scan and add Wechat

400-1700nm Resolution640×512 GE Mount Camera

Price Option

Product No. 680103

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

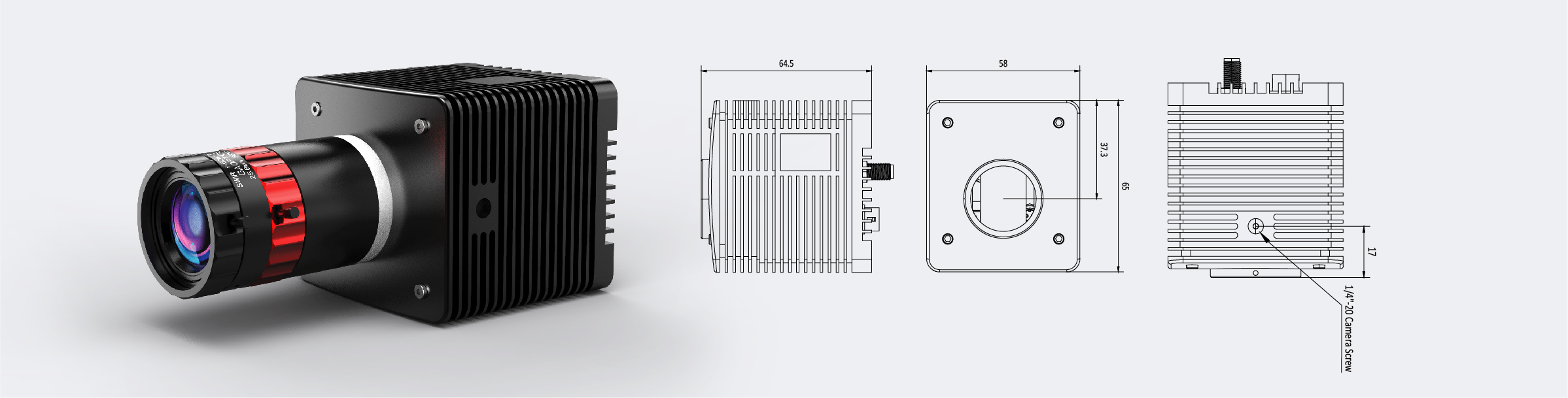

3D View Datesheet

Parameters Specification Data curve Related Products Description

Working Wavelength 400～1700nm

Resolution 640×512

Pixel Size 15μm

CCD 9.6×7.68mm

Frame Rate（Hz） 100

Size 67×70×60mm

Mount C

Digital Output GiGE

Stock No.	680103	680104
Detector	InGaAs Focal Plane Detector
Working Wavelength	400 ~ 1700 nm	900 ~ 1700 nm
Resolution	640 x 512	640 x 512
Pixel Size	15 μm	15 μm
Sensor Size	9.6mm x 7.68mm	9.6mm x 7.68mm
Quantum Efficiency	＞70 % (1.0 ~ 1.6 um）
Frame Rate	100 Hz
Integral Type	snapshot
Integration Time	50 μs ~ 20 ms, 100Hz integration 9ms
On-Board Image Processing	Correction of bad points/Image smoothing/Image denoising/Controllable shutter compensation
ADC	14 bit
Analog Video Output	PAL
Digital Output	1000M GigE
Power Input	DC 8-12V
Power	＜4W （no TEC）
Size	67 mm x 70 mm x 60 mm
Weight	175 g（Not include lens）
Lens Mount	C-Mount
Ambient Temperature	-20 ℃ ~ +50 ℃（
Storage Temperature	-40 ℃ ~ + 70 ℃

Curve Download

900-1700nm Resolution640×512 GE Mount Camera

400-1700nm Resolution640×512 Camera Link Mount Camera

900-1700nm Resolution640×512 Camera Link Mount Camera

Our SWIR camera working wavelength is 900-1700nm and resolution up to 640X512, for different applications, we push out USB, Gigabit Network and Camera Link interface mount cameras.
