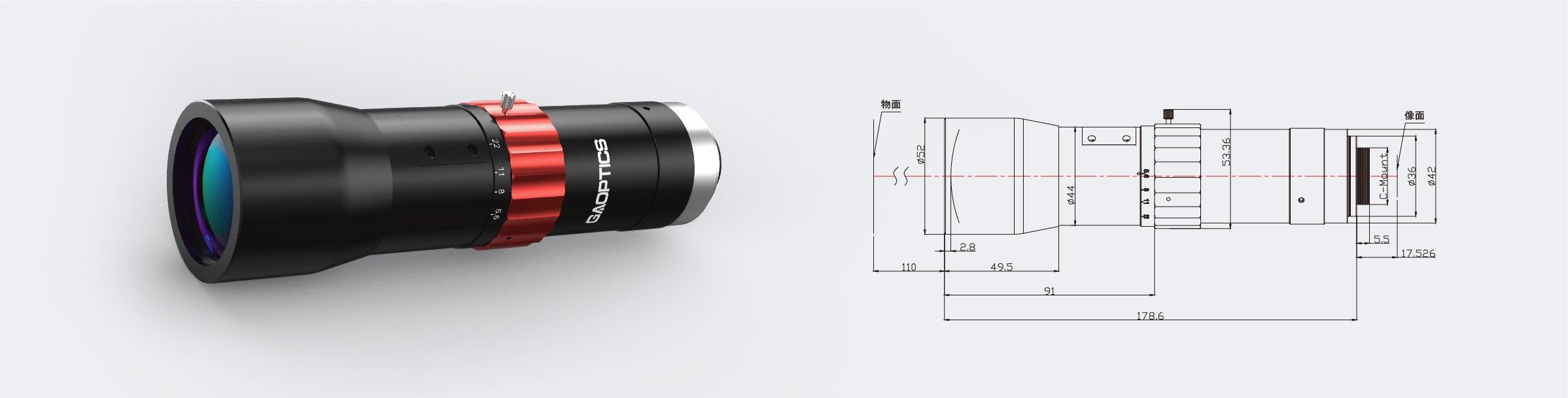

0.75X Working Distance 110mm 1.1

Price Option

Product No. 610052

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Image Plane(Max) 18.5mm

FOV 24.8mm

Magnification 0.75X

Working Distance 110mm

Max. sensor size 1.1"

F/# 5.6

Distrotion 0.03%

Telecentricity 0.05°

DOV 0.8-3.12mm

MTF ＞30%@150lp/mm

Illumination Port -

Mount C-Mount

Length 293.15mm

Diameter 176.5mm

Weight 700g

NO	Item		Specifications
1	Optical Configuration		Double Telecentric
2	Magnification		0.75X
3	Working Distance		110mm
4	Object Space DOV		0.8mm-3.12mm
5	Telecentricity		0.05°
6	Distortion		0.03%
7	F/#		F5.6-F22
8	Resolution/MTF @F7		5μm-19.68μm
9	Max Object Space FOV		φ24.8mm
10	Max Image Space FOV		φ18.6mm
11	IO		303.326mm
12	Max Sensor Size		φ18.5mm
13	FOV （H×V）	1.1"	19.2×14.4mm
		2/3"	11.76×8.82mm
14	Filter Thread		M43×0.75mm
15	Lens Mount		C-Mount
16	Illumination Port		/
17	Lens Size（Dia.×Length）		Ф53.36×184.1mm
18	The distance from the front end of imaging lens to the first surface of the first glass lens		2.8mm

Curve Download

0.5X Working Distance 110mm 2/3

0.345X Working Distance 220mm 1.1

0.4X Working Distance 110mm 1.1

0.75X Working Distance 110mm 1.1

With the increasing demand for precision detection, users have higher requirements for the performance of telecentric lens. GA 1.1" double telecentric lens, the maximum imaging size is 18.5mm, image resolution up to 150lp/mm, cover multiple magnifications, provide more choices for high-precision measurement.
