0.345X Working Distance 220mm 1.1 | GU OPTICS
0.345X Working Distance 220mm 1.1

0.345X Working Distance 220mm 1.1

Price Option

Product No. 610049

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Image Plane(Max) 17.6mm
FOV 51mm
Magnification 0.345X
Working Distance 220mm
Max. sensor size 1.1"
F/# 7.5
Distrotion <0.03%
Telecentricity <0.1°
DOV 5mm
MTF >35%@110lp/mm
Illumination Port -
Mount C-Mount
Length 215.5mm
Diameter 76mm
Weight /
NO Item Specifications
1 Optical Configuration object space
2 Magnification 0.345X
3 Working Distance 220mm
4 DOV 5mm
5 Telecentricity <0.02°
6 Distortion <0.03%
7 F/# F7.5
8 ResolutionMTF  >35%@110lp/mm
9 Max Sensor Size 1.1"(Φ17.6mm)
10 Max Object Space FOV 51mm
11 Max Image Space FOV 17.6mm
12 FOV(H×V) 2/3" 40.8mm×29.6mm
13 Lens Mount C-Mount

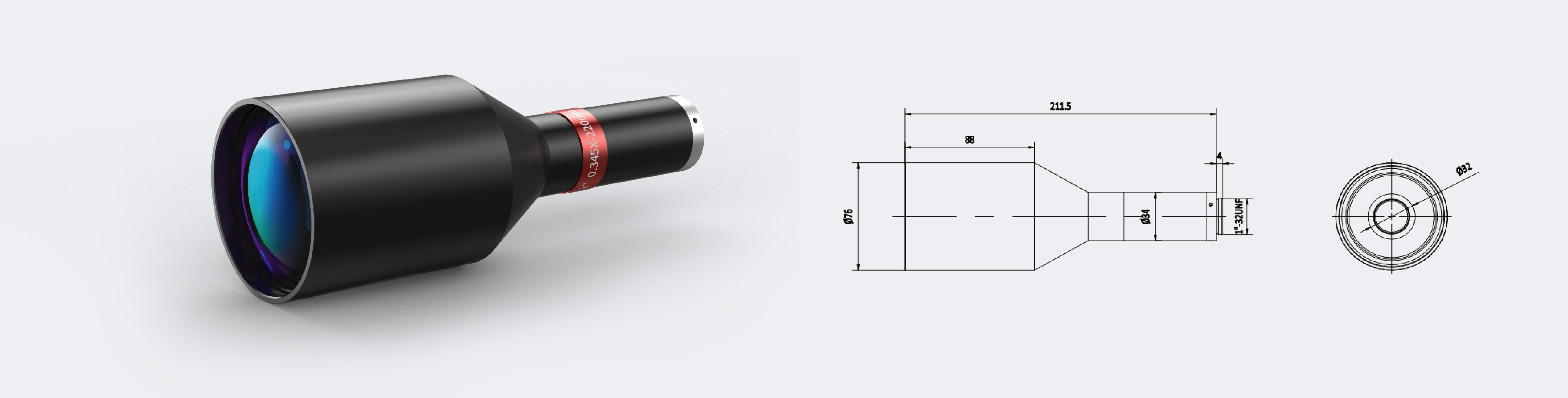

14 Lens Size(Dia.×Length) Φ76×215.5mm
The biggest characteristic of Object Telecentric Lens is that it can eliminate the influence of magnification change caused by inaccurate focusing.
