Home  Products  Fisheye Lens Ultra Wide Angle Lens  600073

3.5mm 1" F1.4 Fisheye Lens Ultra Wide Angle Lens





  Likes

Share

WeChat

Scan and add Wechat

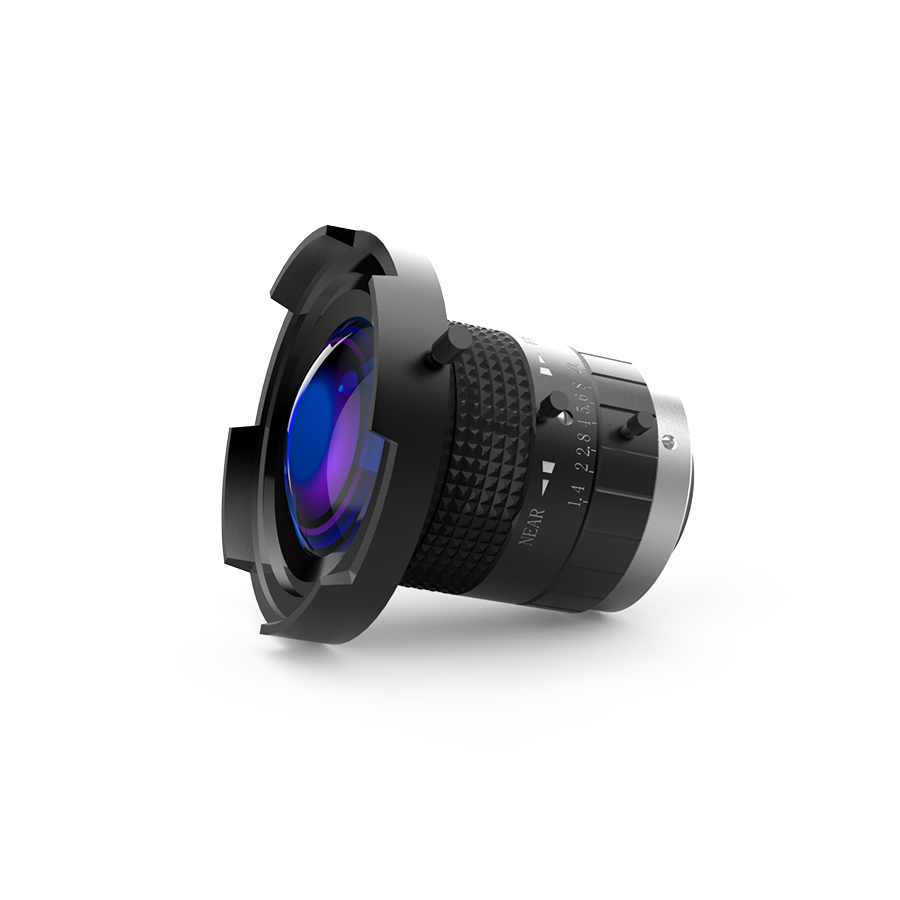

3.5mm 1" F1.4 Fisheye Lens Ultra Wide Angle Lens

Price Option Please Consult

Product No. 600073

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

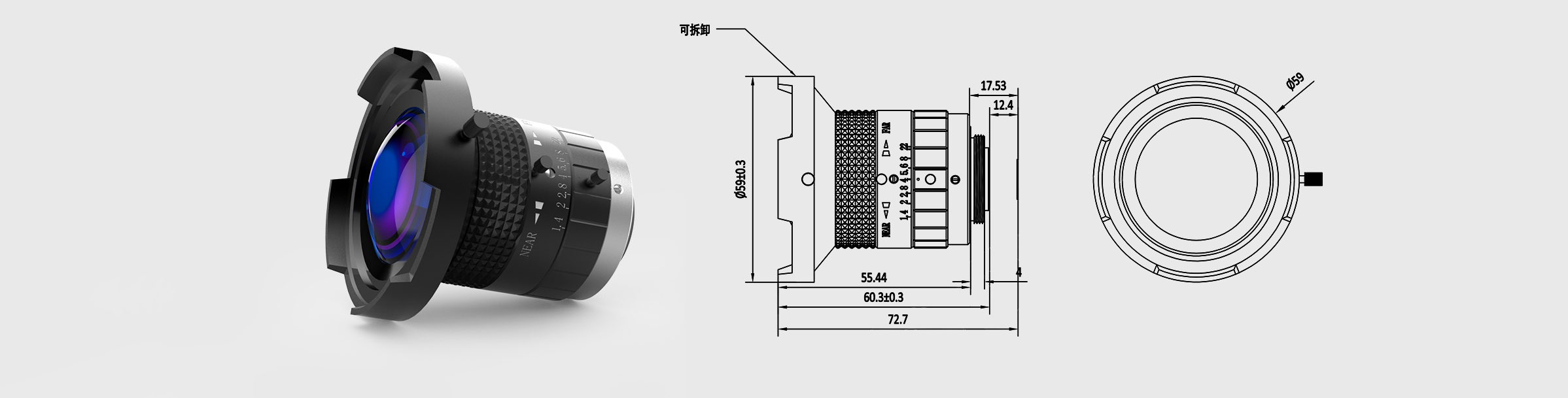

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Max. sensor size 1" (MAX) φ11.6mm

Focal Length 3.5mm

Mount C-Mount

F/# F1.4

Working Distance 0.1m~∞

1”FOV 165°×136°

Resolution 150lp/mm

Distrotion <-37%

Lens Size Φ59×60.3mm

Work Temperature -20℃～+80℃

Weight 200g

Total optical length 72.7mm

No.	Item		Specifications
1	Max. sensor size		1" (MAX) φ11.6mm
2	Focal Length		3.5mm
3	Mount		C-Mount
4	F/#		F1.4
5	Working Distance		0.1m~∞
6	FOV(Diagonal x H xV)	2/3''	165°×136°
		1/2"	125°×94°
7	Operation	Focus	Manual
		Aperture	Manual
8	Resolution	ф9.6mm	150lp/mm
9	Flange BFL		17.526mm (in air)
10	BFL		-
11	MBF		12.4mm
12	Distortion （TV）		<-37%
13	CRA		<20°
14	Lens Size		Φ59×60.3mm
15	Work Temperature		-20℃～+80℃
16	Relative Illumination		>80%
17	Weight		200g
18	Total optical length		72.7mm
Note: The description of the max. sensor size and field of view angle of the fishglasses are different from that of ordinary lenses. Please pay attention to the differences.

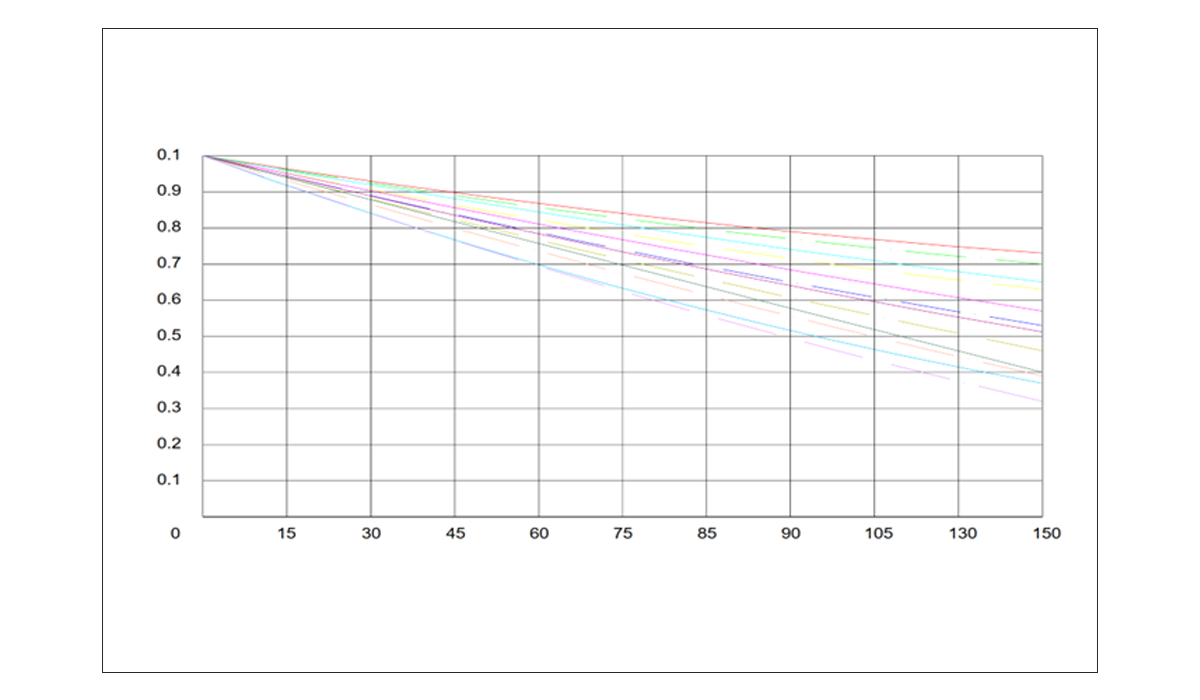

Curve Download

105mm 1/1.8" F4.5 Telephoto Lens

450mm 1

200mm 1" F4 Telephoto Lens

The lens at the front of the fisheye lens protrudes forward like a fish's eye, so it is called a fisheye lens. A fisheye lens is a camera component used for shooting extremely wide angles, typically 180 degrees. Also referred to as a “super wide” or “ultra-wide” lens. Grand Unified Optics’ fisheye lens series products provides users with more choices.
