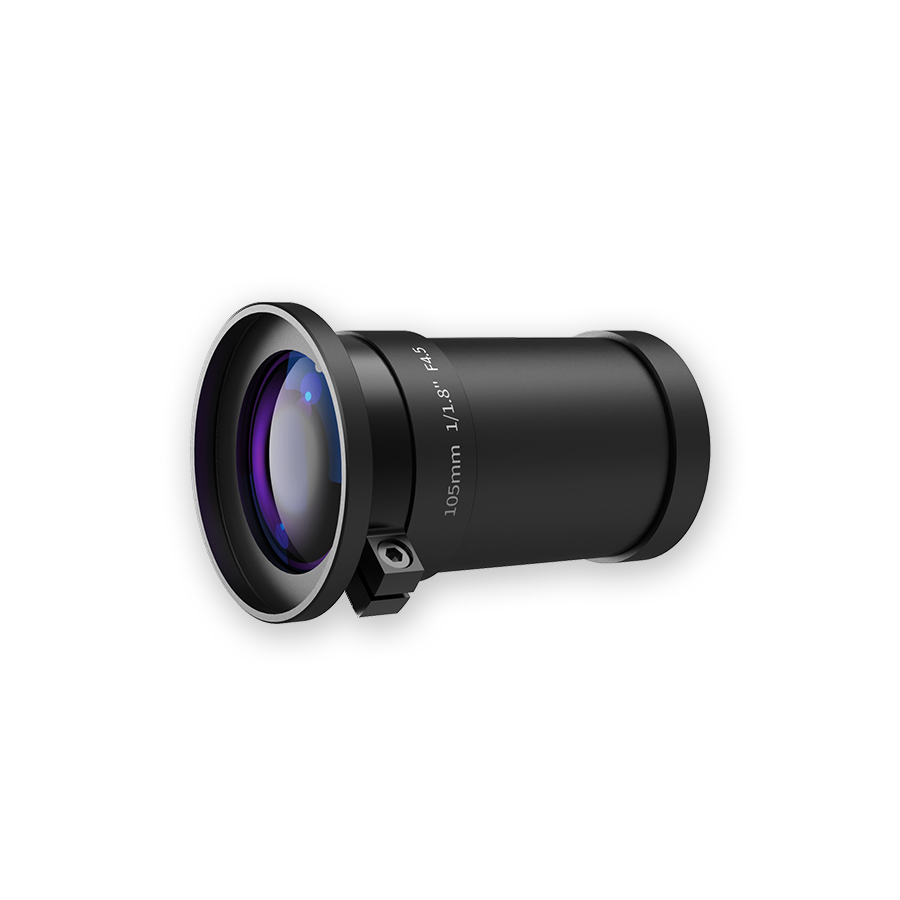

105mm 1/1.8" F4.5 Telephoto Lens
Share
WeChat
Scan and add Wechat

105mm 1/1.8" F4.5 Telephoto Lens

Price Option
 € 1012.89 (EUR) ￡880.25 (GBP) ￥6285.00 (RMB)

Product No. 600068

Stock Please Consult

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
CCD 1/1.8
Focal Length 105mm
Mount C-Mount
F/# F4.5（fixed-aperture）
Focus Range 5m~∞
Lens Size(W x L) M40.5×0.5mm
Weight /
Work Temperature -40℃～+80℃
Working Wavelength 450-1100nm
Distance of entrance pupil 0mm
Diameter of entrance pupil 23.33mm
Distance of exit pupil -64.05mm
Diameter of exit pupil 14.23mm
Total optical length 77.52mm
  No. Item Specifications
1 CCD 1/1.8"(9mm)
2 Focal Length 105mm
3 Mount C-Mount
4 F/# F4.5（fixed aperture）
5 Focusing Range 5m~∞
6 FOV(Diagonal x H×V) 1/1.8" 4.89°×3.92°×2.94°
1/2'' 4.35°×3.48°× 2.62°
1/3" 3.27°×2.62°× 1.96°
7 Object Size (at the minimum focus distance) 1/1.8" 412.8×330.6×248.1㎜
1/2'' 367.1×293.9×220.6㎜
1/3" 275.6×220.6×165.5㎜
8 BFL(in air) 55.4㎜
9 Operation Focus Manual
Aperture Fixed
10 Distortion 1/1.8"  -0.3%@y=4.5㎜
1/2''  -0.23%@y=4.0㎜
1/3"  -0.13%@y=3.0㎜
11 Filter Thread M40.5×0.5㎜

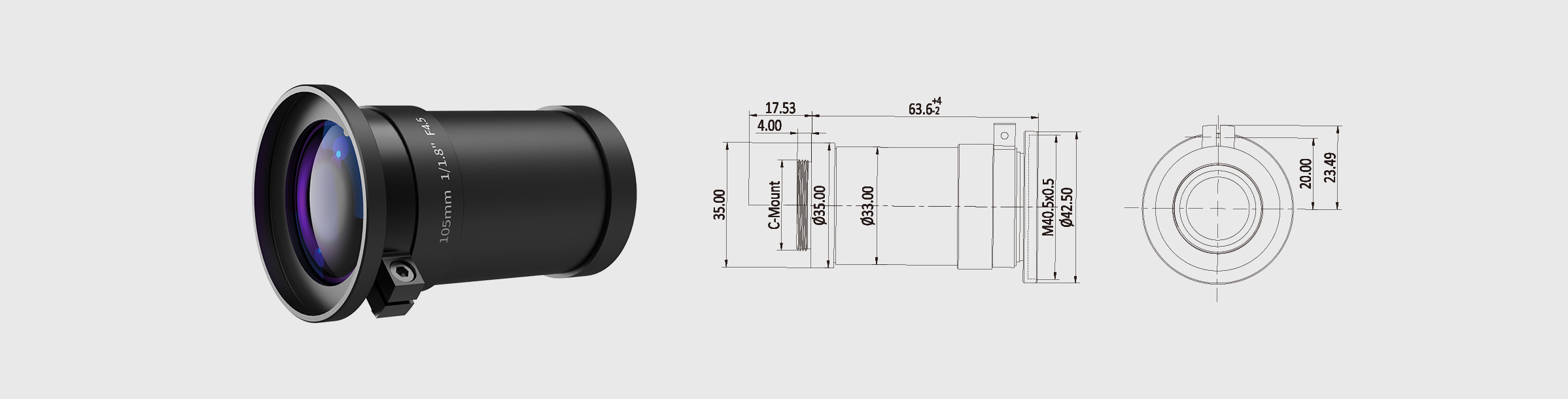

12 Lens Size(W x L) 68×43mm
13 Weight /
14 Work Temperature -40℃～+80℃
15 Working Wavelength 450-1100nm
16 Distance of entrance pupil 0mm
17 Diameter of entrance pupil 23.33mm
18 Distance of exit pupil -64.05mm
19 Diameter of exit pupil 14.23mm
20 Total optical length 77.52mm
Curve Download

12mm 1.1" F2.8 12M Fixed Focal Length Lens

16mm 1.1" F2.8 12M Fixed Focal Length Lens

25mm 1.1" F2.8 12M Fixed Focal Length Lens

50mm 1.1" F2.8 12M Fixed Focal Length Lens
A telephoto lens generally refers to a fixed-focus lens with a relatively long focal length and a small field of view. In some application scenarios, users need to observe distant objects. When the objects are of the same size, a lens with a large field of view is often required. It should be pointed out that a telephoto lens is a relative concept. In the field of industrial lenses, ordinary prime lenses are basically 8-75mm, and those with a focal length greater than 75mm can be called telephoto lenses.

Product characteristics
1.The focal length is 105mm, which is good for observing distant objects;
2. Working wavelength from 450-1100nm;
3.Fixed aperture, shock-resistant structure;
4.High and low temperature resistance, working temperature -40°-+80°.
