Home  Products  2/3" F2.0 5M Series  600059

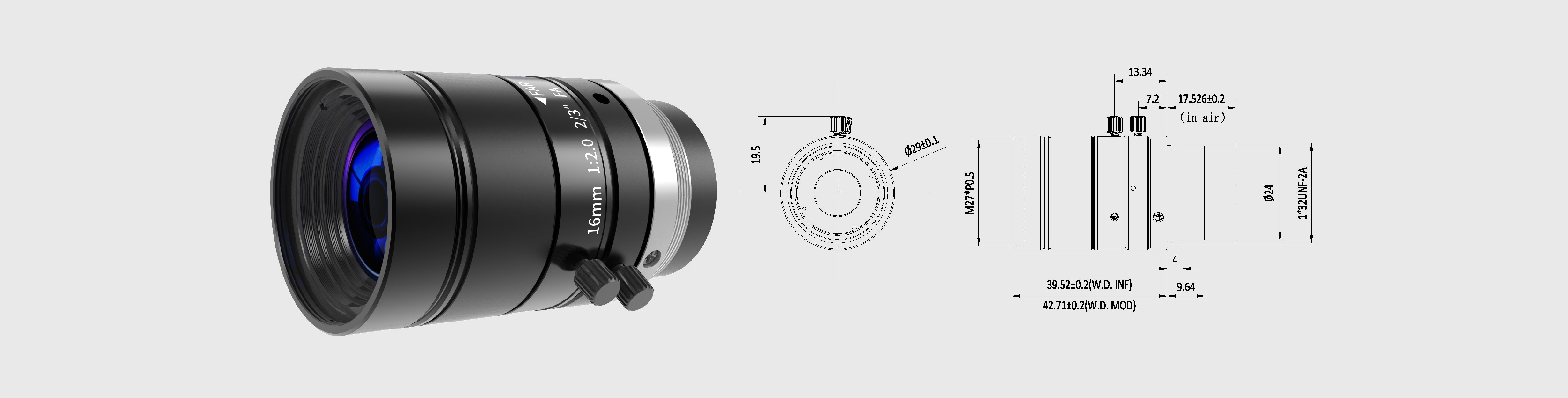

16mm 2/3" F2.0 5M Fixed Focal Length Lens





Share

WeChat

Scan and add Wechat

16mm 2/3" F2.0 5M Fixed Focal Length Lens

Price Option

Product No. 600059

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Related Products Description

Focal Length 16mm

F/# F2.0-F16

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.1m～∞

Filter Thread M27*P0.5

FOV 37.4°×29.3°×24.7°

Distrotion -0.13%

Weight 68.8g

25mm 2/3" F2.0 5M Fixed Focal Length Lens

25mm 2/3" F2.0 5M Fixed Focal Length Lens

35mm 2/3" F2.0 5M Fixed Focal Length Lens

35mm 2/3" F2.0 5M Fixed Focal Length Lens

50mm 2/3" F2.8 5M Fixed Focal Length Lens

50mm 2/3" F2.8 5M Fixed Focal Length Lens

12mm 1.1" F2.8 12M Fixed Focal Length Lens

12mm 1.1" F2.8 12M Fixed Focal Length Lens

1/1.8"- F2.8-6M series Fixed Focal Length Lens is designed with a target surface of 1/1.8", which is compatible with industrial cameras with an image area of 9mm; its maximum aperture is F2.8, compact in size and small in size; focal length coverage 6mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm.
