Home  Products  2/3" F2.0 5M Series  600062

50mm 2/3" F2.8 5M Fixed Focal Length Lens





Share

WeChat

Scan and add Wechat

50mm 2/3" F2.8 5M Fixed Focal Length Lens

Price Option

Product No. 600062

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

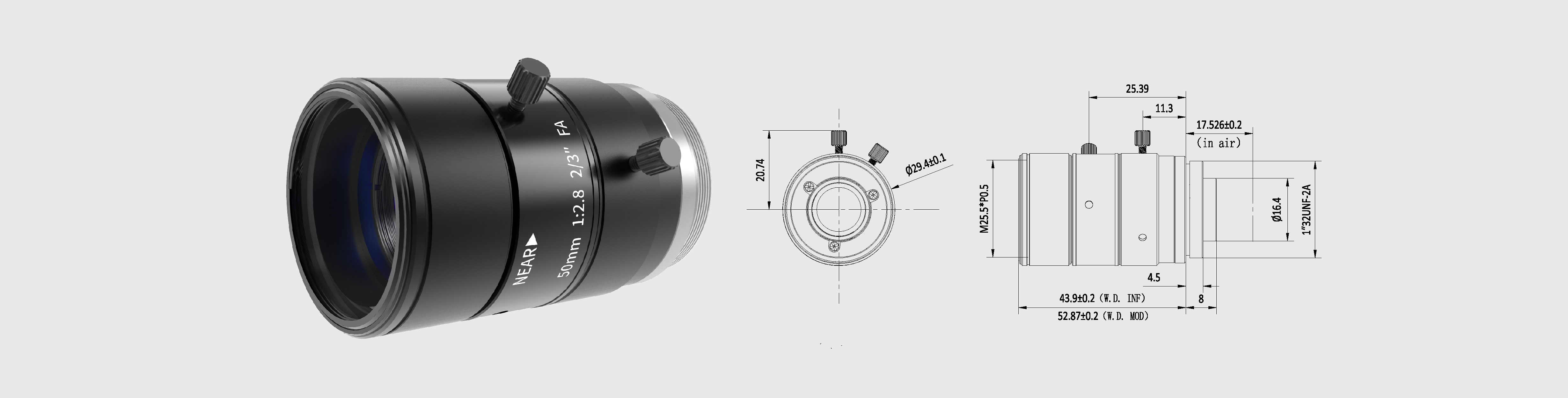

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Related Products Description

Focal Length 50mm

F/# F2.8-F16

Max. sensor size 2/3"

Mount C

Resolution 5MP

Working Distance 0.3m～∞

Filter Thread M25.5*P0.5

FOV 13.0°×10.4°×7.8°

Distrotion 0.11%

Weight 72.37g

12mm 1.1" F2.8 12M Fixed Focal Length Lens

12mm 1.1" F2.8 12M Fixed Focal Length Lens

16mm 1.1" F2.8 12M Fixed Focal Length Lens

16mm 1.1" F2.8 12M Fixed Focal Length Lens

25mm 1.1" F2.8 12M Fixed Focal Length Lens

25mm 1.1" F2.8 12M Fixed Focal Length Lens

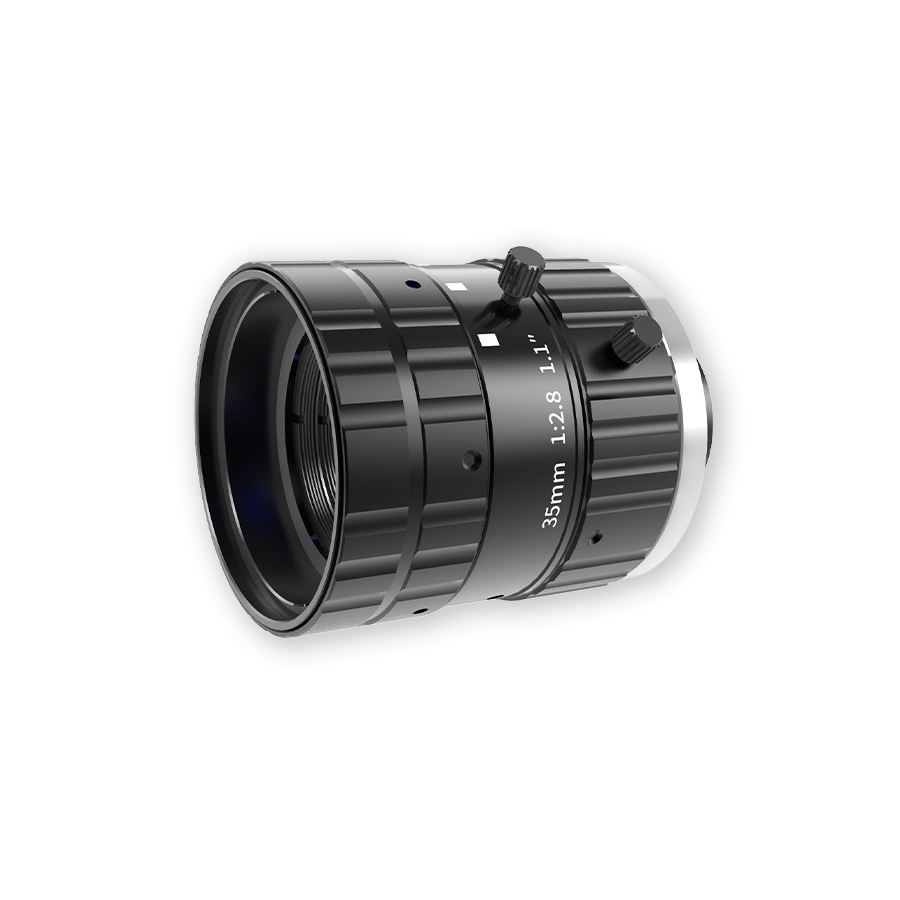

35mm 1.1" F2.8 12M Fixed Focal Length Lens

35mm 1.1" F2.8 12M Fixed Focal Length Lens

1/1.8"- F2.8-6M series Fixed Focal Length Lens is designed with a target surface of 1/1.8", which is compatible with industrial cameras with an image area of 9mm; its maximum aperture is F2.8, compact in size and small in size; focal length coverage 6mm, 8mm, 12mm, 16mm, 25mm, 35mm, 50mm.
