35mm 4/3" 10M Fixed Focal Length Lens
Share
WeChat
Scan and add Wechat

35mm 4/3" 10M Fixed Focal Length Lens

Price Option
 € 204.60 (EUR) ￡174.29 (GBP) ￥1200.00 (RMB)

Product No. 600019

Stock In Stock

Express DHL, Fedex etc.

Quantity
Add car Chating online
Product file downloadClick file to download
3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet
Parameters Specification Data curve Related Products Description
Focal Length 35mm
F/# 2
Max. sensor size 4/3
Mount C
Resolution 10MP
Working Distance 0.2m～∞
Filter Thread M46X0.75mm
FOV 36.6°×29.6°×22.4°
Distrotion -0.56%@y=11.5mm
Weight 173g
No. Item Specifications
1 Max. sensor size 4/3"(23mm）
2 Focal Length 35mm
3 Mount C-Mount
4 F/# F2.0-F22
5 Working Distance 0.2m～∞
6 FOV(Diagonal x H xV) 4/3" 36.6°×29.6°×22.4°
1" 25.9°×20.8°×15.7°
1/2" 13.1°×10.5°×7.9°
1/3" 9.8°×7.9°×5.9°
7 Object Size
(at the minimum focus distance)		 4/3" 120.9×96.7×72.4mm
1" 84.0×67.2×50.3mm
1/2" 41.9×33.5×25.1mm
1/3" 31.5×25.2×18.9mm
8 BFL（in air） 18.65mm
9 Operation Focus Manual
Aperture Manual
10 Distortion 4/3" -0.56%@y=11.5mm
1" -0.43%@y=8.0mm
1/2" -0.13%@y=4.0mm
1/3" -0.07%@y=3.0mm
11 Filter thread M46×0.75mm

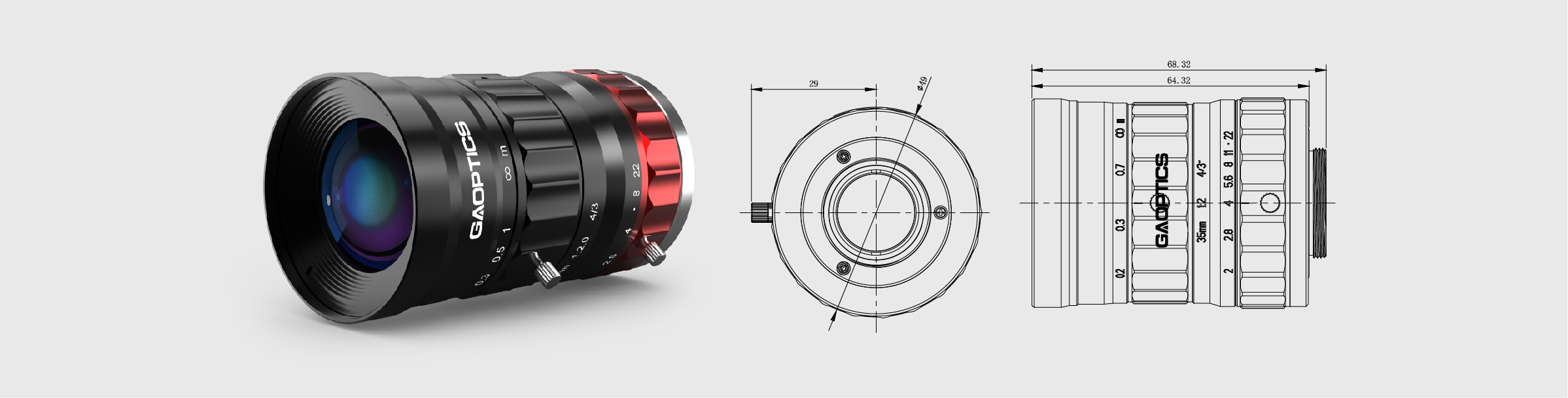

12 Lens Size(W x L) 53.5×68.32mm
13 Weight 173g
14 Work Temperature -10℃～+50℃
15 Distance of entrance pupil 19.82mm
16 Diameter of entrance pupil 17.50mm
17 Distance of exit pupil -42.34mm
18 Diameter of exit pupil 21.17mm
19 Total optical length 64.67mm
20 Magnification -0.1914

Focus Distance Magnification Front DOV(mm) Back DOV(mm)
200mm -0.19138 0.4789  0.4812
250mm -0.15030 0.7478  0.7523
300mm -0.12374 1.0761  1.0839
350mm -0.10516 1.4639  1.4762
400mm -0.09143 1.9108  1.9293
450mm -0.08087 2.4169  2.4432
500mm -0.07250 2.9821  3.0181
550mm -0.06569 3.6062  3.6541
600mm -0.06006 4.2891  4.3513
650mm -0.05532 5.0308  5.1099

Curve Download

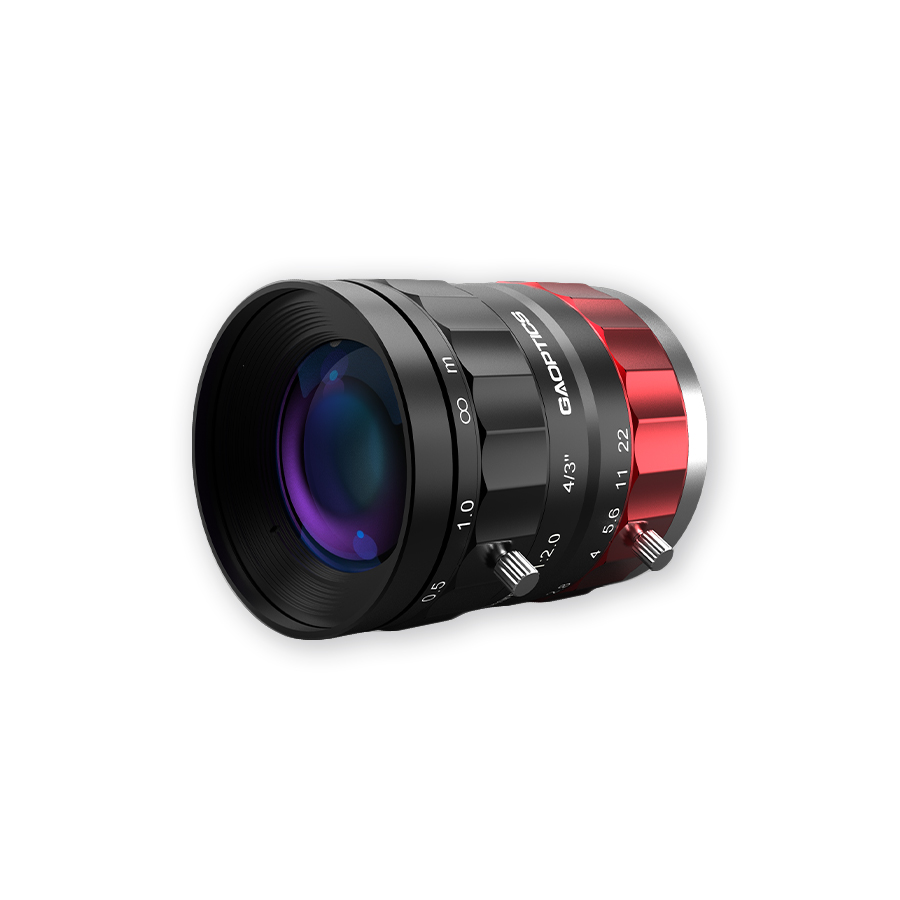

50mm 4/3" 10M Fixed Focal Length Lens

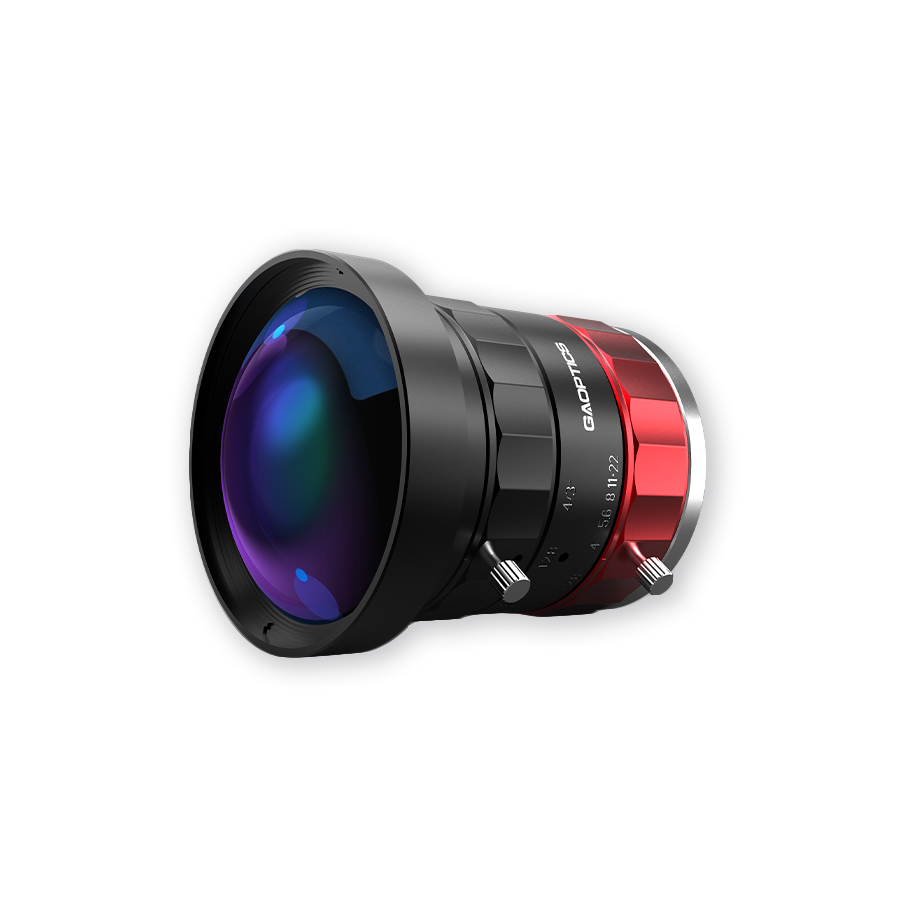

85mm 4/3" 10M Fixed Focal Length Lens

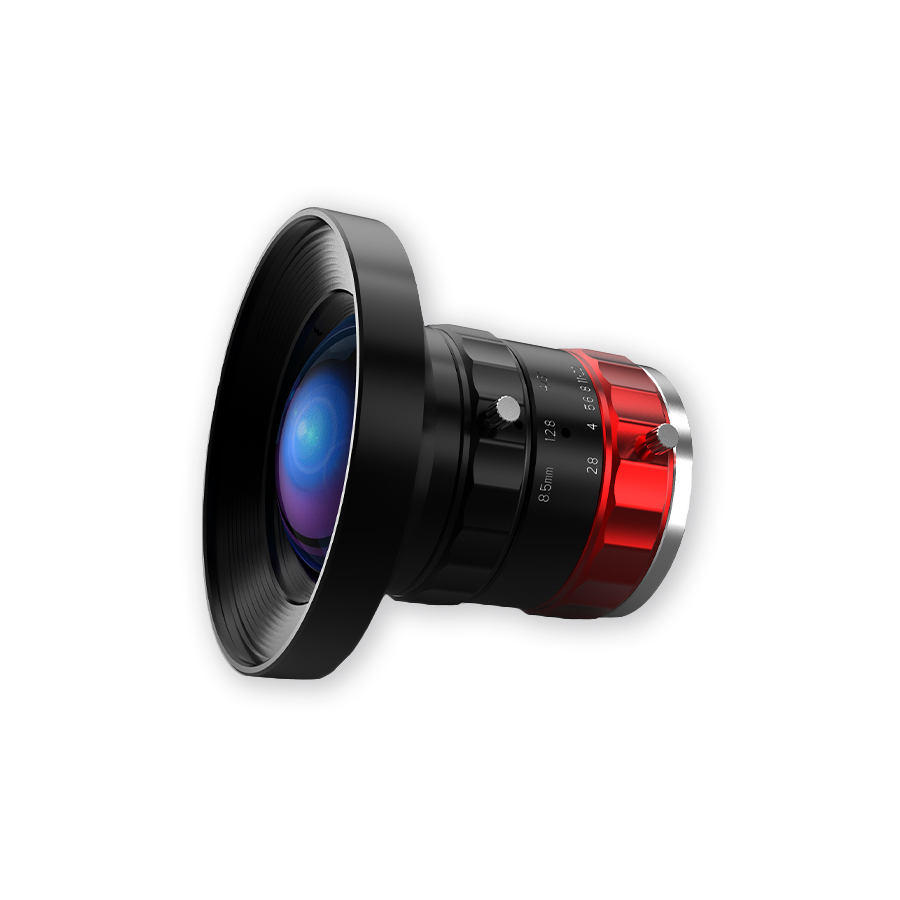

8.5mm 4/3" 10M Fixed Focal Length Lens No filter thread

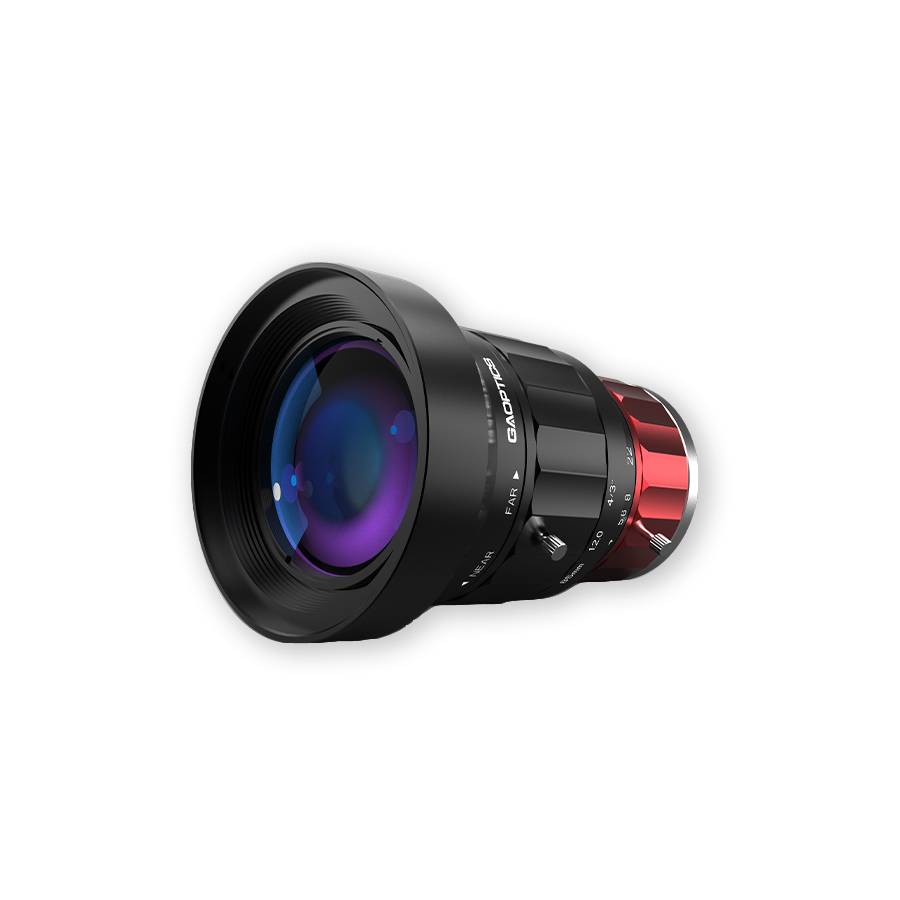

8.5mm 4/3" 10M Fixed Focal Length Lens
GA 4/3" 10M FA lens is specially designed for 4/3" imaging sensors. Standard c-mount design, can matching most of c-mount cameras; The maximum focal length up to 85mm, imaging diameter reach to 23mm, it has great advantages for large imaging applications.

Product characteristics
1. 10 Mega pixels, 4/3" imaging Format，150lp/mm@±8.8mm，100lp/mm@±11.5mm;
2. Full focal length covers 8-85 mm;
3. Max image diameter up to23mm, compatible area Camera and Line scan camera;
4. Standard C-mount design, matching C-mount industrial cameras.
