8.5mm 4/3" 10M Fixed Focal Length Lens No filter thread





  Likes

Share

WeChat

Scan and add Wechat

8.5mm 4/3" 10M Fixed Focal Length Lens No filter thread

Price Option

Product No. 600037

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

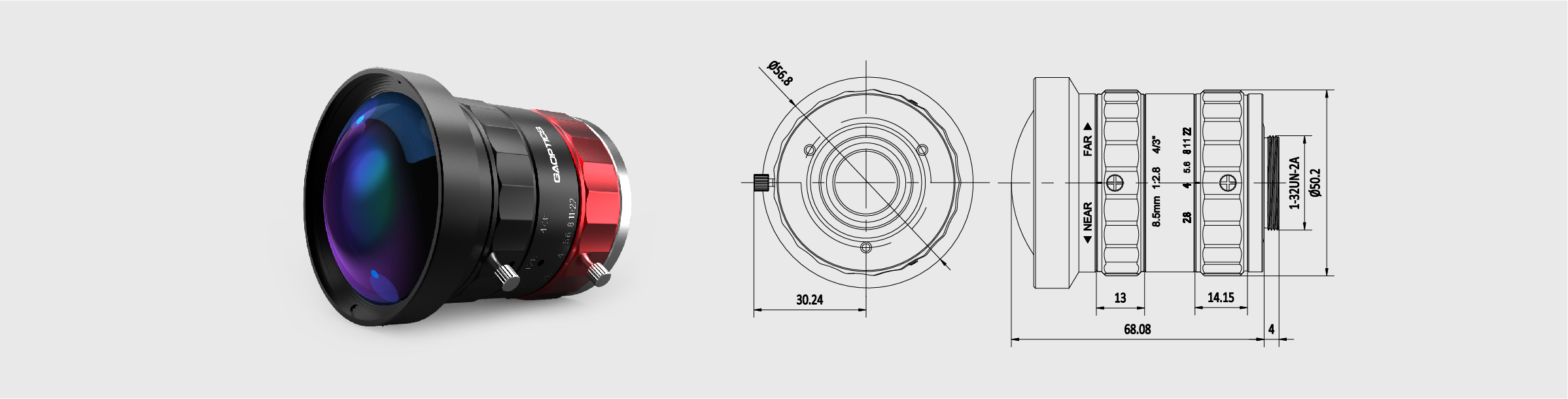

Focal Length 8.5mm

F/# 2.8

Max. sensor size 4/3"

Mount C

Resolution 10MP

Working Distance 0.5m～∞

Filter Thread /

FOV 107.4°×94.9°×77.9°

Distrotion -4.54%@y=11.5mm

Weight 317g

No.	Item		Specifications
1	Max. sensor size		4/3"(23mm）
2	Focal Length		8.5mm
3	Mount		C-Mount
4	F/#		F2.8-F22
5	Working Distance		0.5m~∞
6	FOV(Diagonal x H xV)	4/3"	107.4°×94.9°×77.9°
		1"	86.7°×73.6°×58.0°
		1/2"	49.4°×40.2°×30.5°
		1/3"	37.8°×30.5°×23.7°
7	Object Size (at the minimum focus distance)	4/3"	1436.8×1145.9×848.6mm
		1"	990.8×784.1×580.7mm
		1/2"	480.9×382.6×285.6mm
		1/3"	358.2×285.6×213.6mm
8	BFL（in air）		18.87mm
9	Operation	Focus	Manual
9	Operation	Aperture	Manual
10	Distortion	4/3"	-4.54%@y=11.5mm
		1"	-4.22%@y=8.0mm
		1/2"	-1.63%@y=4.0mm
		1/3"	-0.97%@y=3.0mm
11	Filter thread		/
12	Lens Size(W x L)		58.64×72.08mm
13	Weight		317g
14	Work Temperature		-10℃～+50℃
15	Distance of entrance pupil		19.14mm
16	Diameter of entrance pupil		3.16mm
17	Distance of exit pupil		-70.27mm
18	Diameter of exit pupil		25.65mm
19	Total optical length		85.64mm
20	Magnification		-0.0171

Focus Distance	Magnification	Front DOV(mm)	Back DOV(mm)
500mm	-0.01709	58.6458	76.6195
550mm	-0.01558	70.1388	94.1524
600mm	-0.01432	82.5144	113.8204
650mm	-0.01325	95.7425	135.7266
700mm	-0.01233	109.7947	159.9803
750mm	-0.01153	124.6433	186.6987
800mm	-0.01082	140.2624	216.0063
850mm	-0.01020	156.6268	248.0366
900mm	-0.00964	173.7125	282.9322

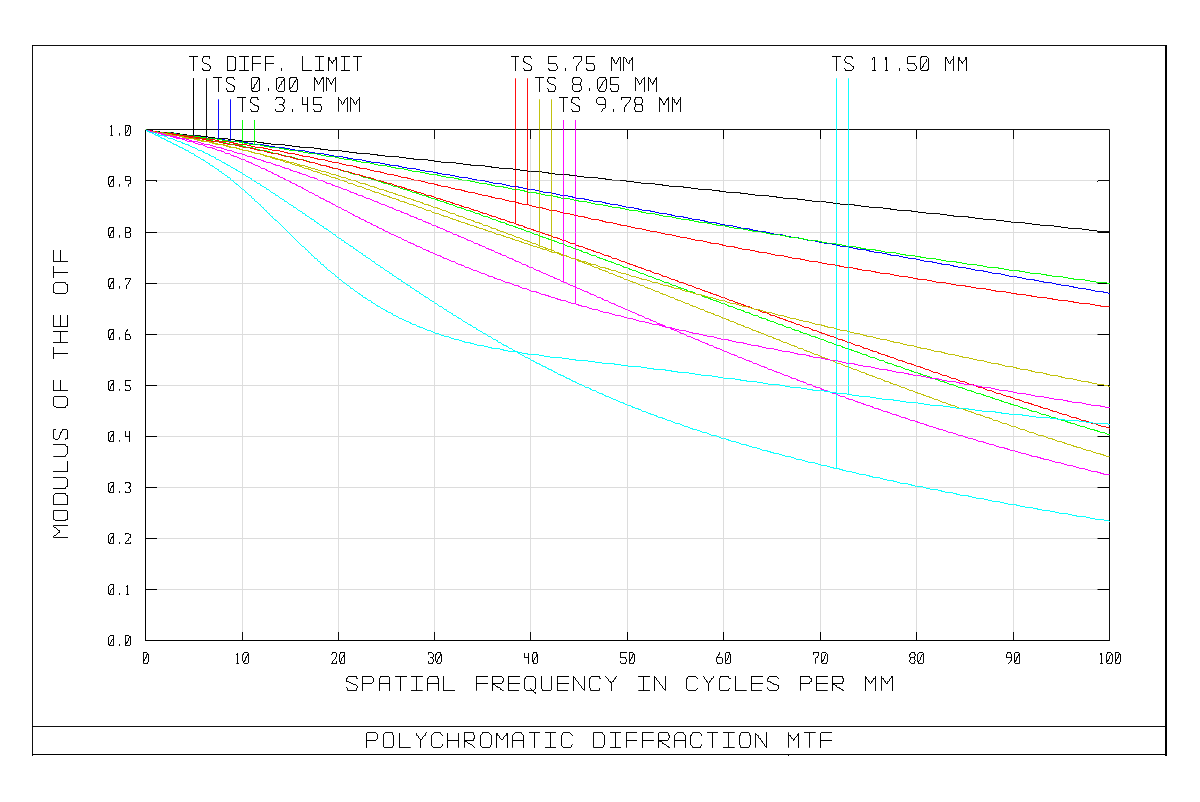

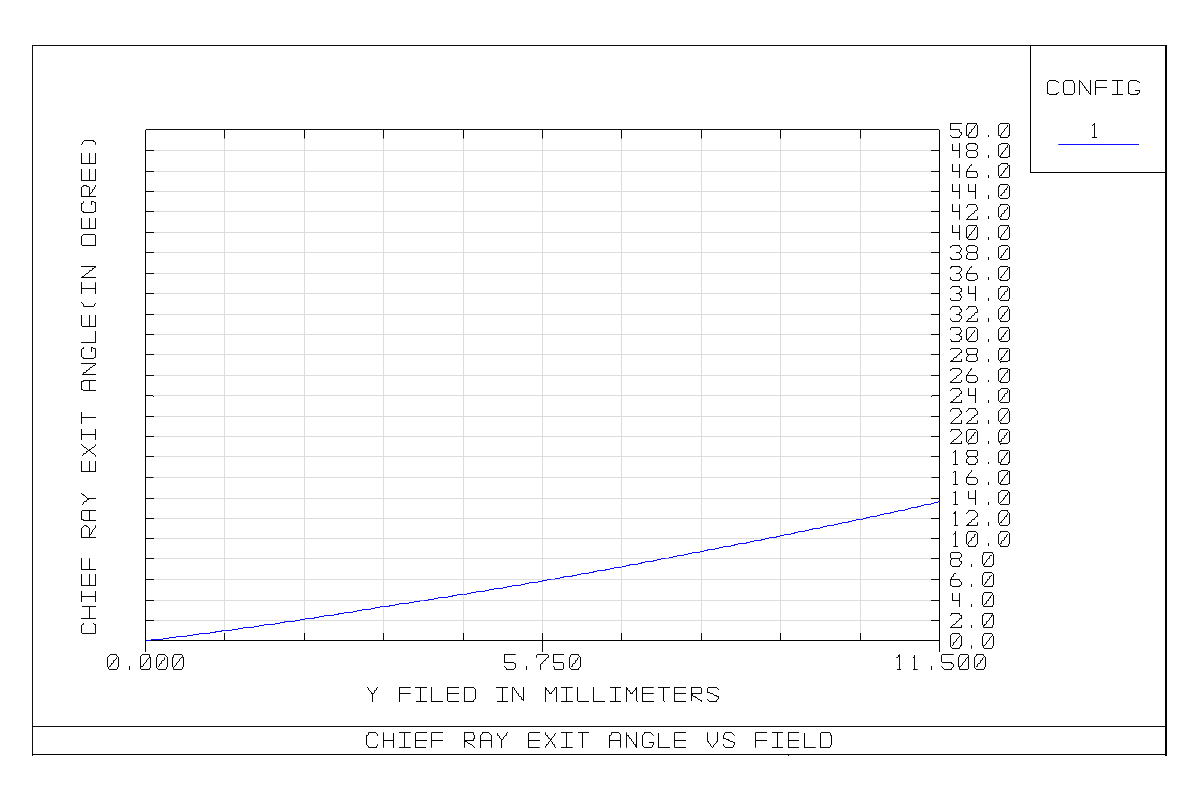

Curve Download

12mm 4/3" 10M Fixed Focal Length Lens

16mm 4/3" 10M Fixed Focal Length Lens

25mm 4/3" 10M Fixed Focal Length Lens

8.5mm 4/3" 10M Fixed Focal Length Lens

GA 4/3" 10M FA lens is specially designed for 4/3" imaging sensors. Standard c-mount design, can matching most of c-mount cameras; The maximum focal length up to 85mm, imaging diameter reach to 23mm, it has great advantages for large imaging applications.

Product characteristics
1. 10 Mega pixels, 4/3" imaging Format，150lp/mm@±8.8mm，100lp/mm@±11.5mm;
2. Full focal length covers 8-85 mm;
3. Max image diameter up to23mm, compatible area Camera and Line scan camera;
4. Standard C-mount design, matching C-mount industrial cameras.
