Motorized Nano Rotation Stages Stage Size=80mm Travel=360°





Share

WeChat

Scan and add Wechat

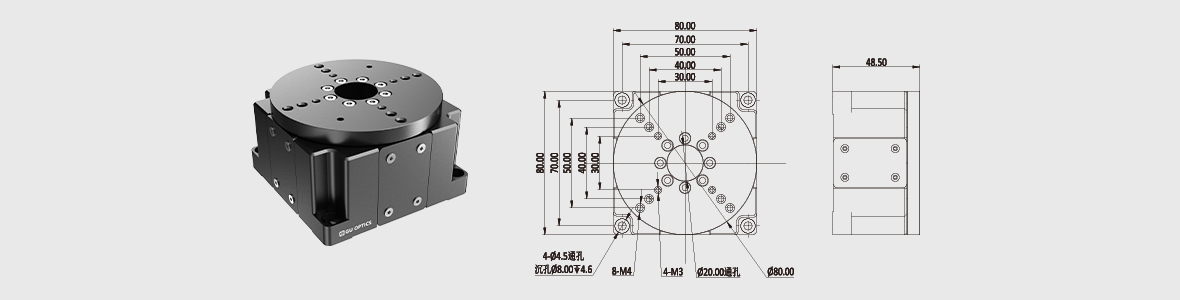

Motorized Nano Rotation Stages Stage Size=80mm Travel=360°

Price Option

Product No. 526910

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Stage Diameter. 80mm

Travel 360°

Motor Drive Piezoelectric-Motor

Max Speed 30°/s

Max load 3kg

Min Step 0.001°

Repositioning Accuracy +/-0.002°

Position Sensor /

Body Maerial 铝合金

weight 0.7kg

Radial Error ≤0.05mm

Axial Error ≤0.05mm

Tilt Error ≤0.04°

Motorized Nano Goniometers Stages Height of Rotation Center=126mm Travel=±7.5mm

Motorized Nano Rotation Stages Stage Size=70mm Travel=360°

Motorized Nano Rotation Stages Stage Size=100mm Travel=360°

Motorized Nano Vertical Stages Travel=10mm Motor Drive:2×M304

Single/Double piezoelectric motor drive Use stainless steel crossed-roller bearing With power-off self-locking , brake function and no return backlash Minimum stepping rotation angle 0.06 second Compact design, other sizes can be customized
