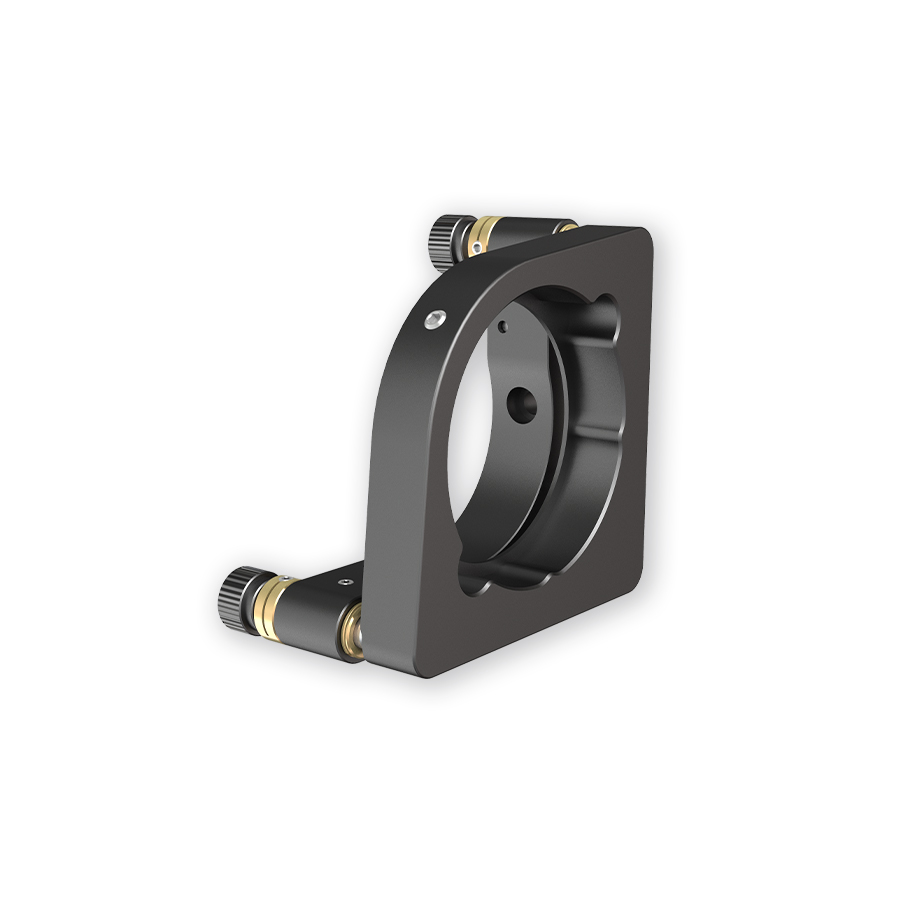

Standard Optical Mounts Optics Diameter=50mm Spring





Share

WeChat

Scan and add Wechat

Standard Optical Mounts Optics Diameter=50mm Spring

Price Option

Product No. 519861

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

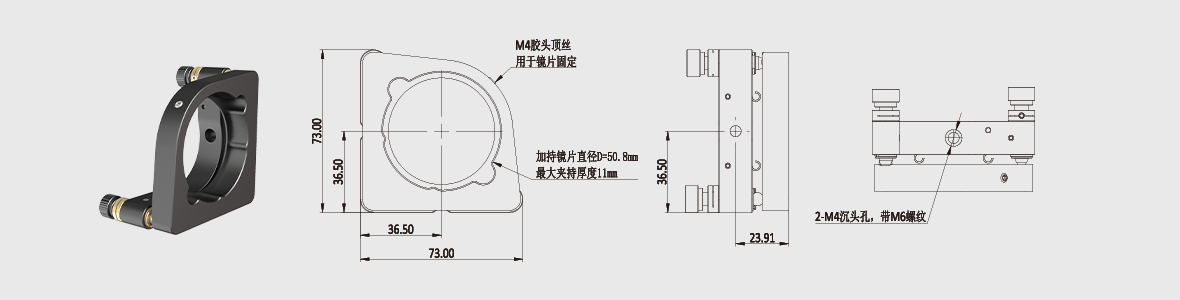

CAD PDF Auto CAD DXF eDrawing Step

Parameters Related Products Description

Optics Diameter Φ50mm

Reset mode Spring

Standard Optical Mounts Optics Diameter=25.4mm Spring

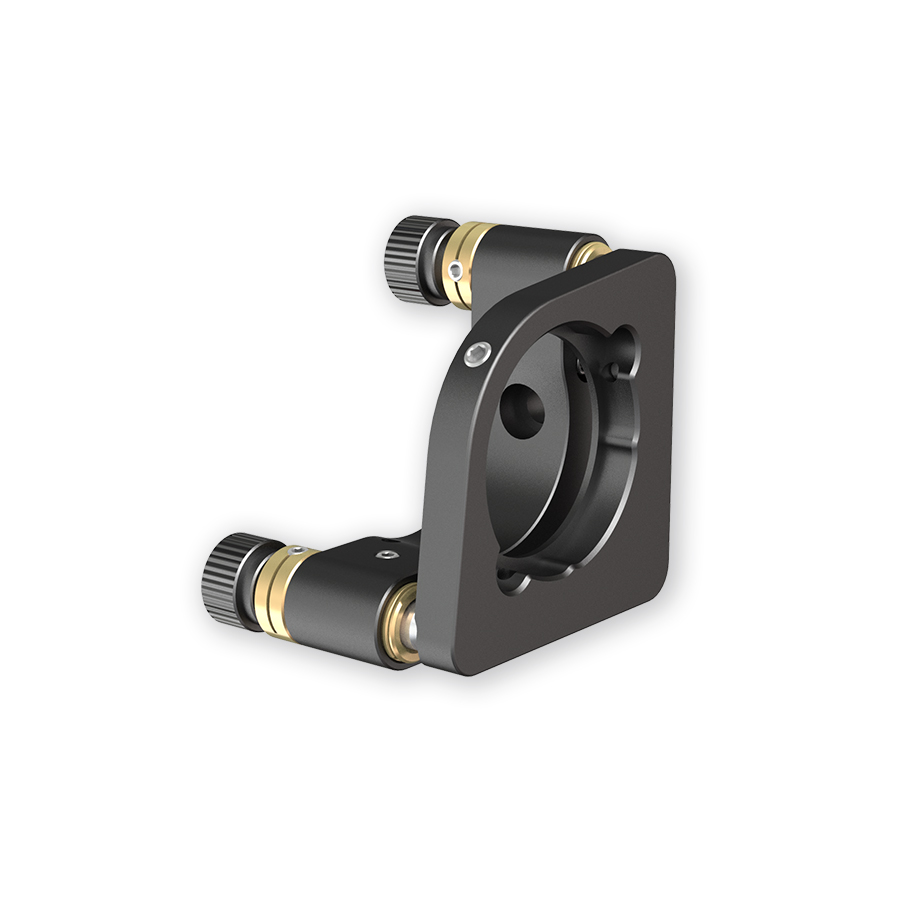

Standard Optical Mounts Optics Diameter=30mm Spring

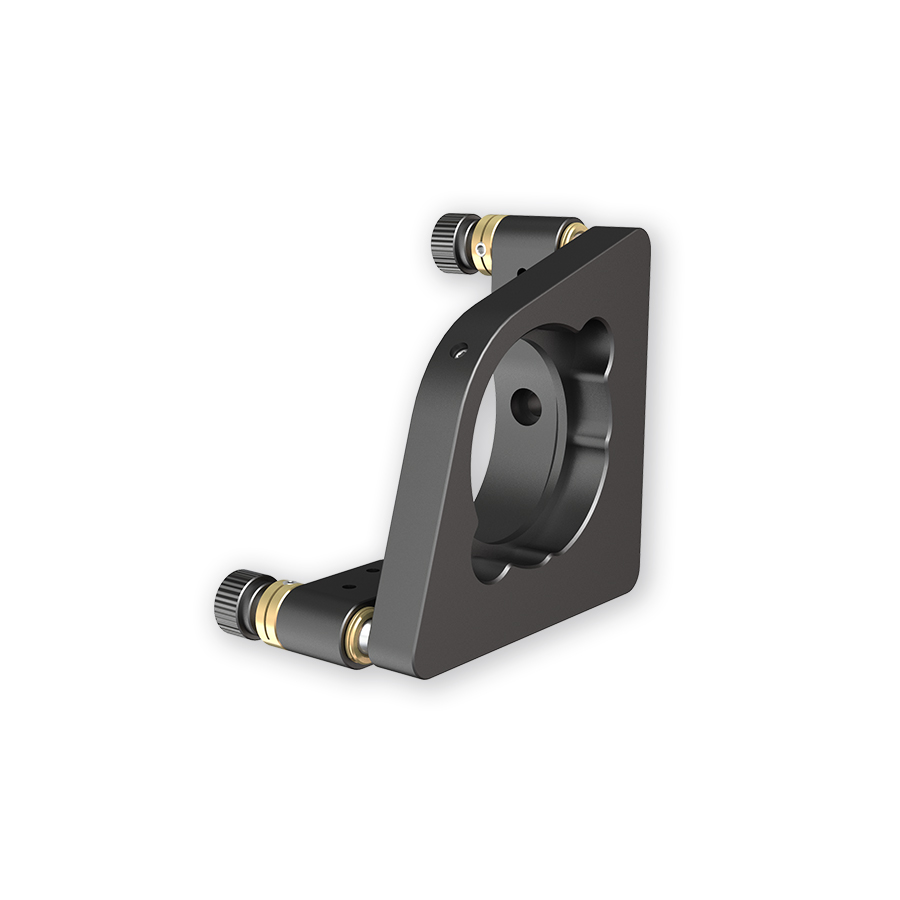

Standard Optical Mounts Optics Diameter=40mm Spring

Standard Optical Mounts Optics Diameter=50mm Spring

* High resolution positioning and ensure the stability * High repeatability and durability *Contact with the steel ball at the front end of the adjusting screw knob is a wear-resistant metal * Contact with the front steel beads is made of wear resistant metal material. * Screw gap almost can be neglected * Stainless steel screw and bronze ring bushing combined together, make it more smoother operation and long-term stability. * Avaliable for many kinds of diameters.of optical components * Tip/Tilt Range:±3.5°
