Home  Products  UV Fused Silica Drum Lenses  165029

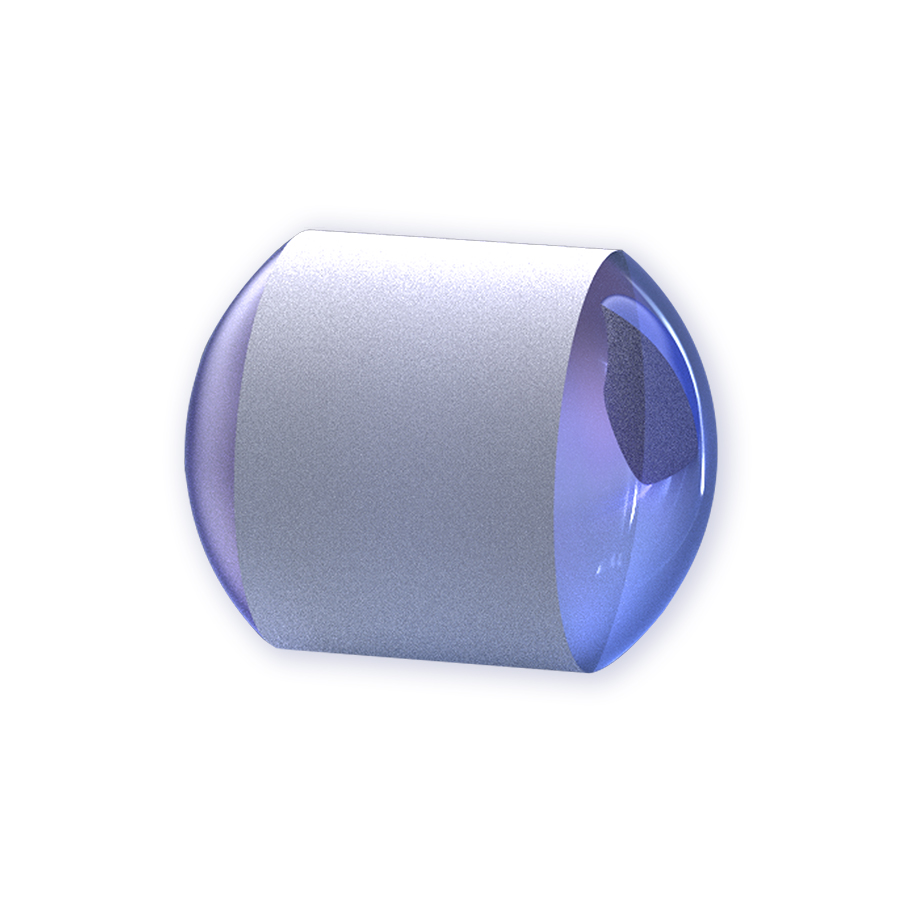

Drum Lenses D=5.00mm F=6.36mm UV UV Fused Silica





Share

WeChat

Scan and add Wechat

Drum Lenses D=5.00mm F=6.36mm UV UV Fused Silica

Price Option

Product No. 165029

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 5.00mm

EFL 6.36mm

Coating AR@250~400nm

Material UV Fused Silica

BFL 2.36mm

CT 8.00mm

Design Wavelength 587.6nm

Diameter Tolerance +0.0/- 0.05mm

Center Thickness Tolerance ±0.005mm

Surface Accuracy λ/4 @632.8nm

Surface Quality 40/20-60/40

n n=1.45852

Drum Lenses D=2.00mm F=2.39mm UV UV Fused Silica

Drum Lenses D=2.00mm F=2.39mm UV UV Fused Silica

Drum Lenses D=3.00mm F=3.18mm UV UV Fused Silica

Drum Lenses D=3.00mm F=3.18mm UV UV Fused Silica

Drum Lenses D=4.00mm F=3.98mm UV UV Fused Silica

Drum Lenses D=4.00mm F=3.98mm UV UV Fused Silica

Drum Lenses D=5.00mm F=6.36mm UV UV Fused Silica

Drum Lenses D=5.00mm F=6.36mm UV UV Fused Silica

Drum lenses are spherical at both ends, which can provide a position surface along the optical axis. Ball lenses are formed by grinding an outer circle on a ball lens in order to mount conveniently. These are ideal for optical transmission in fiber communication applications
