Home  Products  UV Fused Silica Plano-Convex (PCX) Lenses  100408

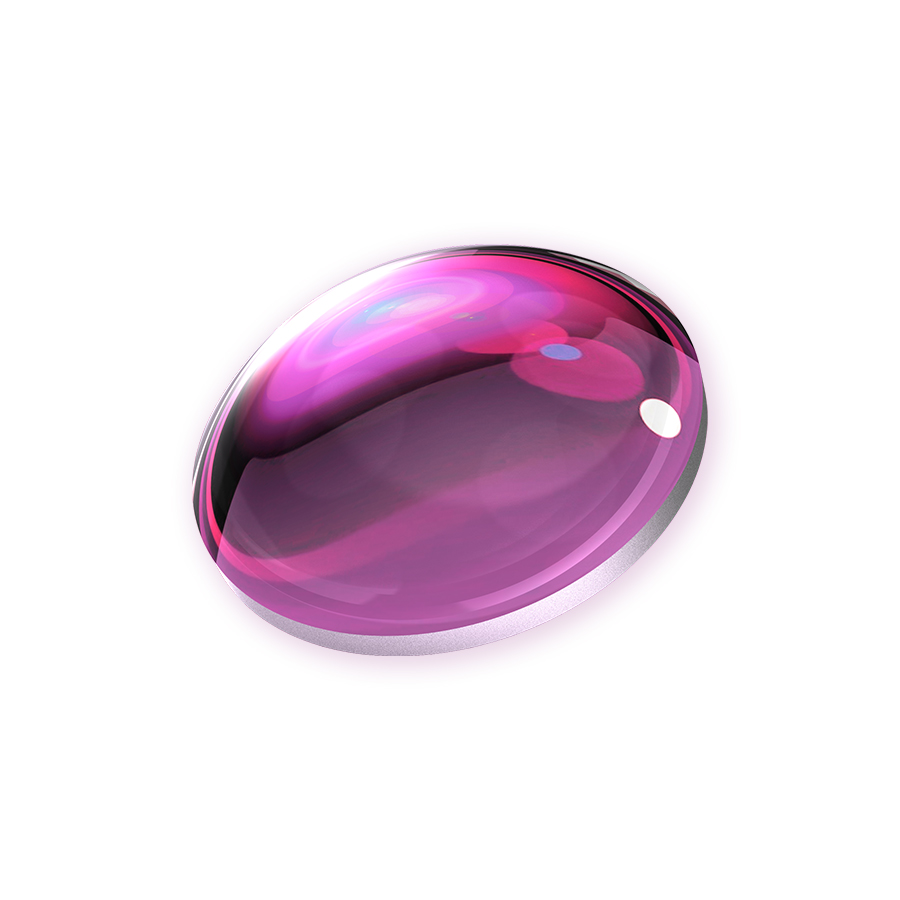

Plano-Convex Lenses D=10.00mm F=16.00mm UV UV-Grade Fused Silica



Plano-Convex Lenses D=10.00mm F=16.00mm UV UV-Grade Fused Silica





Share

WeChat

Scan and add Wechat

Plano-Convex Lenses D=10.00mm F=16.00mm UV UV-Grade Fused Silica

Price Option

Product No. 100408

Stock In Stock

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step

Parameters Spectrum Curve Related Products Description

Dia 10.00mm

EFL 16.00mm

Coating AR@250~400nm

Material UV-Grade Fused Silica

BFL 13.74mm

R1 7.34mm

CT 3.30mm

ET 1.30mm

Available Mount Ring 500031

Design Wavelength 587.6nm

Diameter Tolerance +0.0 /-0.1

Center Thickness Tolerance ±0.2

Surface Accuracy λ/4 @632.8nm

Focal Length Tolerance ±2%

Centering Tolerance 3 arcmin

Surface Quality 20/10-40/20

Bevel 0.2X45°

n n=1.45848

Plano-Convex Lenses D=10.00mm F=20.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=20.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=25.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=25.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=40.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=40.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=50.00mm UV UV-Grade Fused Silica

Plano-Convex Lenses D=10.00mm F=50.00mm UV UV-Grade Fused Silica

Plano-Convex A Plano-Convex (PCX) lens will focus light on a point. One side is flat, the other side is convex. Its focal length is positive and is used to aim and focus a monochromatic light source. The convex surface is orientated facing the incident light.Grand Unified Optics offers uncoated and double sided broadband AR coated products to suit your application . Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) substrates are ideal for Infrared (IR) applications, fused silica is suitable for UV applications.
