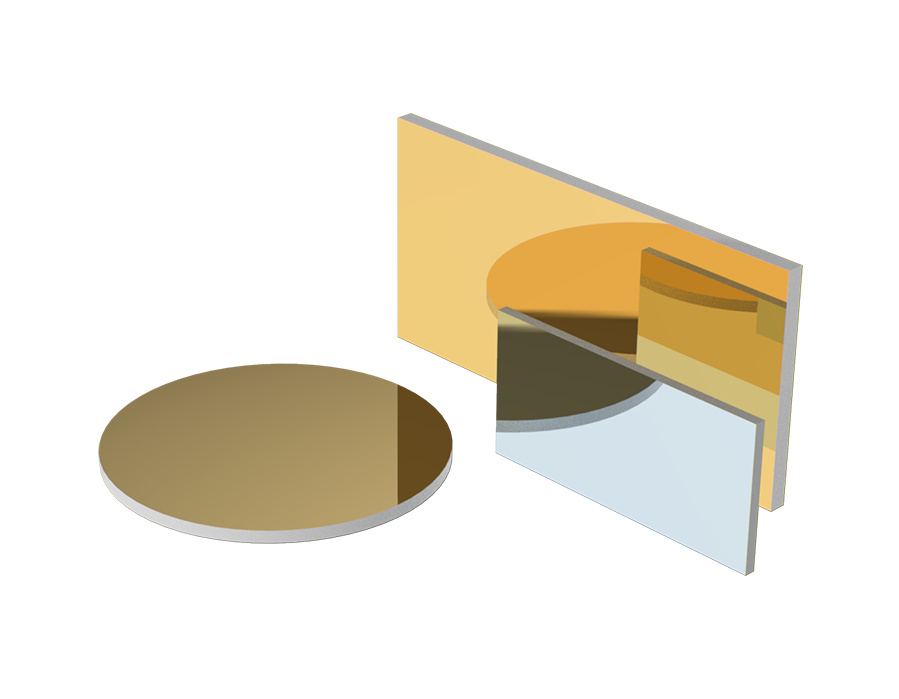

H-K9L Standard Precision Flat Mirror
Flat Mirrors are designed for the variety of applications, including beam steering or folding, interferometry, or as optical components in imaging systems. High surface accuracy can decrease the amount of light lost through dispersion. Image Optics offers uncoated and coated mirrors for your applications.
H-K9L Standard Precision Flat Mirror
Material H-K9L Optical Glass
Surface Accuracy λ/ 4 @ 633 nm
Parallelism <3 arcmin
Surface Quality 40-20
Back Surface Polish
Diameter Tolerance +0.0/-0.1mm
Thickness Tolerance ±0.2mm
Bevel Protective Bevel 0.2~0.5mmX45°
Coating As product list
Pro No.
Parameter
Dia
Thickness
Coating
Surface Accuracy
Delivery time
Compare
Price
Purchase
Φ5.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
Φ6.3mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
Φ10.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
Φ12.5mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
12.5x12.5mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
Φ15.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$10.00
Φ20.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$19.17
Φ25.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$19.17
25.0x25.0mm
2.0mm
Uncoated
λ/4@633nm
In stock
$19.17
Φ30.0mm
3.0mm
Uncoated
λ/4@633nm
In stock
$21.67
Φ38.0mm
4.0mm
Uncoated
λ/4@633nm
In stock
$26.67
Φ50.0mm
4.0mm
Uncoated
λ/4@633nm
In stock
$34.17
50.0x50.0mm
4.0mm
Uncoated
λ/4@633nm
In stock
$34.17
Φ5.0mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
Φ6.3mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
Φ10.0mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
Φ12.5mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
12.5x12.5mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
Φ15.0mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$12.50
Φ20.0mm
2.0mm
Aluminum+Protected
λ/4@633nm
In stock
$21.67

We offer two catalogs to you: product catalog and Imaging optics catalog.

Product catalog:
This catalog include optical components, laser components, opto-mechanics, lenses and light sources, measuring instruments, and optical materials. In additional, we also provide large-size ultra-precision planar optical, spherical optical, aspheric optical, imaging lens, and precision angle component customized design and processing.

Imaging optics catalog:

This catalog include fixed focal lens, telecentric lens, zoom lens, line scan lens, short wave near infrared lens (SWIR), 360°outer surround view lens, VIS-NIR lens, relay lens , teleconverter, etc. In additional, we also provide lens design and development service.
