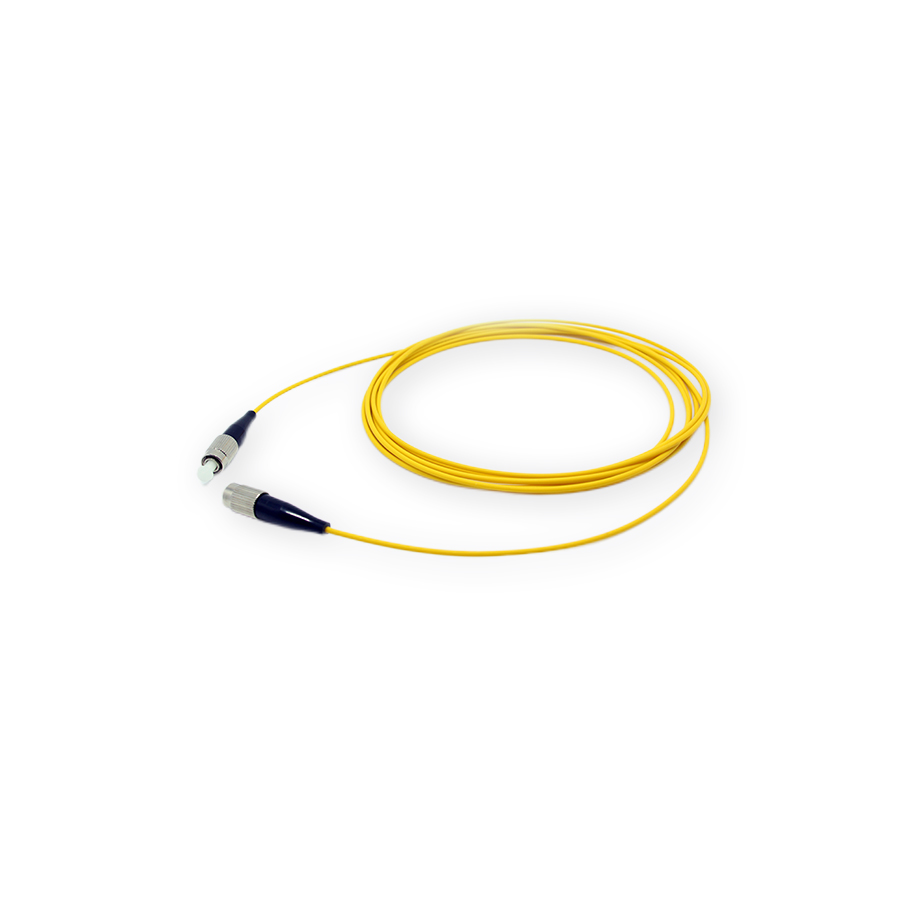

Polarization Maintaining Fiber Patchcord | GU OPTICS
Polarization Maintaining Fiber Patchcord

Polarization Maintaining Fiber Patchcord

Price Option Please Consult

Product No. 800005

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Parameters Unit Values
Wavelength nm 980*, 1064*, 1310, 1480 or 1550
Connector type   FC/UPC & SC/UPC                    FC/APC & SC/APC
Typ. Insertion Loss dB 0.3                                              0.4
Key Orientation   Slow Axis
Max. Insertion Loss dB 0.5
Min. Return Loss dB 50                                               60
Min. Extinction Ratio dB 23
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type   PM Panda Fiber

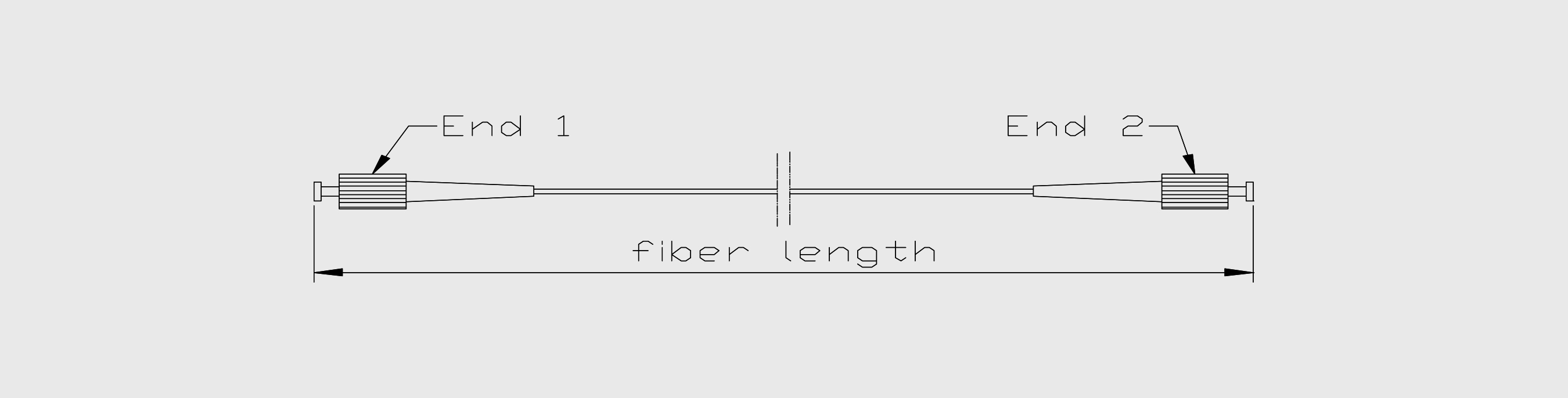

Fiber Length Tolerance % ± 10
Operating Temperature -5 to +70
Storage Temperature -40 to +85
