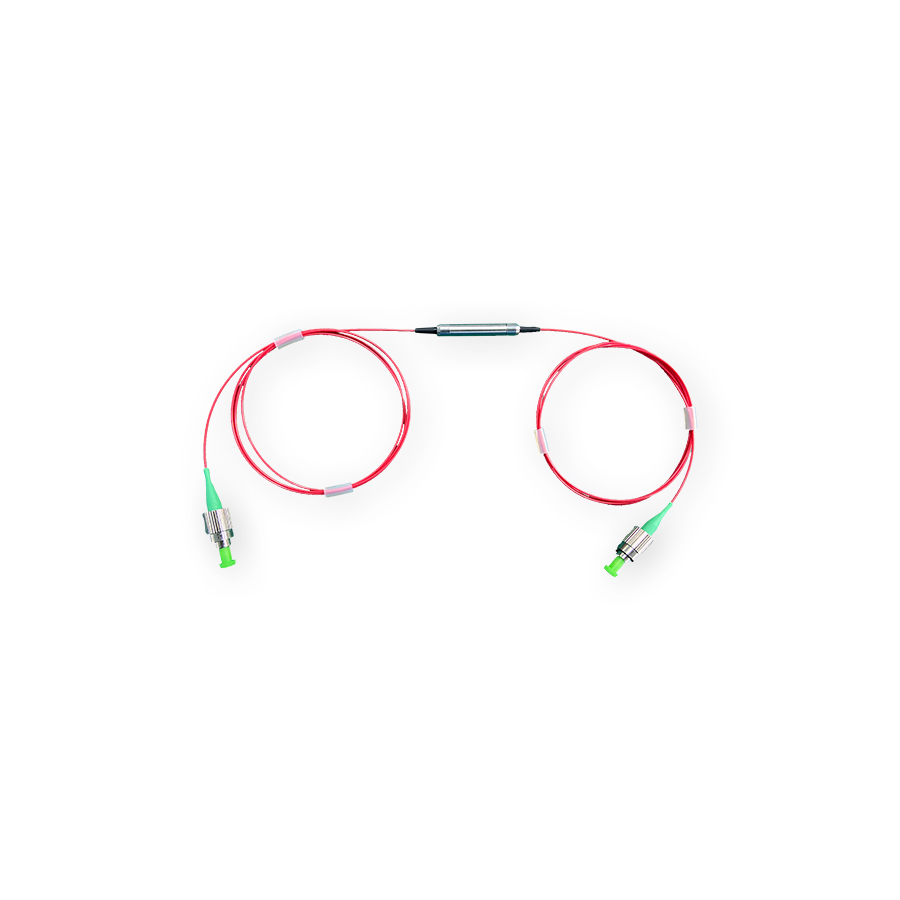

1064nm Polarization Maintaining Isolator

1064nm Polarization Maintaining Isolator

Price Option Please Consult

Product No. 800004

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Parameters Unit Values
Stage   Single Stage                                     Dual Stage
Grade   Grade P              Grade A              Grade P                Grade A
Center Wavelength (λc) nm 1064
Typ. Peak Isolation dB 40                       38                       55                         52
Min. Isolation at 23℃ dB 35                       32                       45                         42
Typ. Insertion Loss at 23℃ dB 1.5                      1.6                      2.4                        2.6
Max. Insertion Loss at -5℃-50℃ dB 1.8                      2.0                       3.2                        3.4
Min. Return Loss (Input/Output) dB 55/50                  55/50                  55/50                    55/50
Min. Extinction Ratio (only for B Type) dB 20                       18                       20                         18
Min. Extinction Ratio (only for F Type) dB 23                       23                       23                         23
Max. Optical Power (CW) mW 300
Max. Tensile Load N 5
Fiber Type   PM 980 Panda Fiber
Operating Temperature -5 to +50
Storage Temperature -40 to +85
