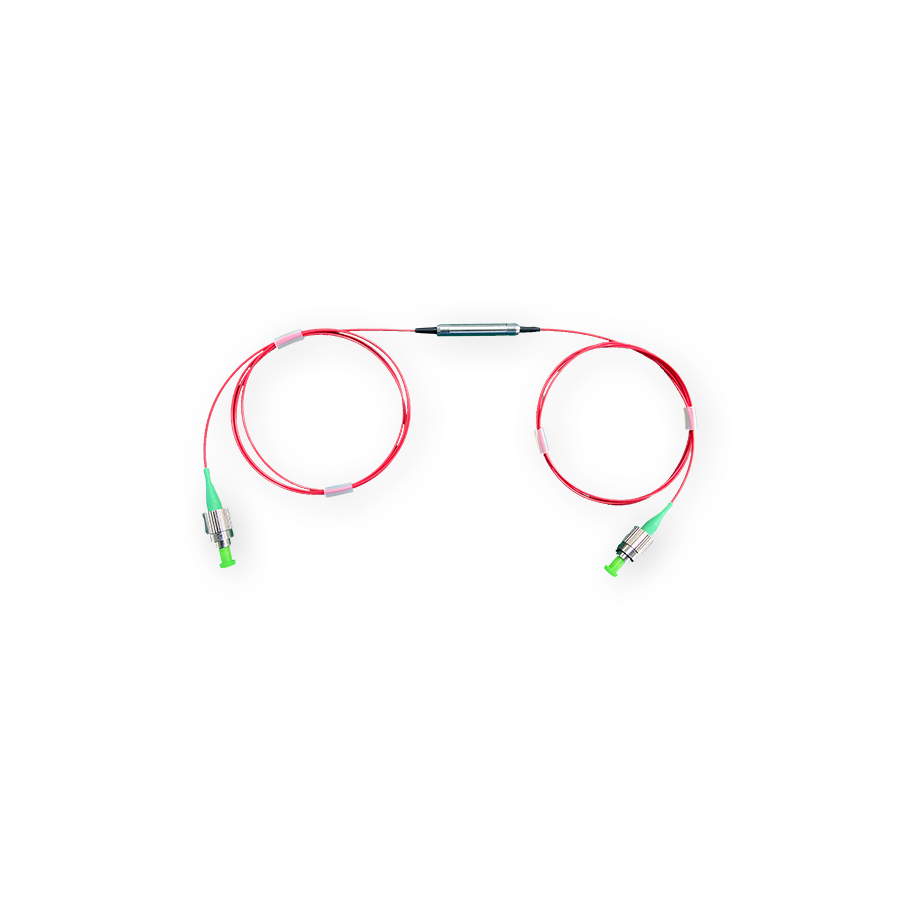

Polarization Maintaining Isolator

Price Option Please Consult

Product No. 800003

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

Parameters	Unit	Values
Stage		Single Stage Dual Stage
Grade		Grade P Grade A Grade P Grade A
Center Wavelength (λc)	nm	1310, 1480 or 1550
Operating Wavelength Range	nm	±20
Typ. Peak Isolation	dB	42 40 58 55
Min. Isolation at 23℃	dB	28 26 48 45
Typ. Insertion Loss at 23℃	dB	0.4 0.5 0.5 0.6
Max. Insertion Loss at -5℃-70℃	dB	0.55 0.65 0.65 0.8
Min. Return Loss (Input/Output)	dB	55 55 55 55
Min. Extinction Ratio(only for B tyep)	dB	20 18 20 18
Min. Extinction Ratio(only for F type)	dB	25 23 25 23
Max. Optical Power (CW)	mW	500
Max. Tensile Load	N	5
Fiber Type		PM Panda Fiber
Operating Temperature	℃	-5 to +70
Storage Temperature	℃	-40 to +85
