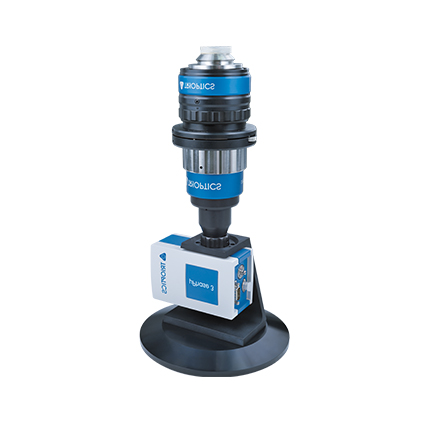

μPhase® Plano 300





Share

WeChat

Scan and add Wechat

μPhase® Plano 300

Price Option Please Consult

Product No. 750129

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

μPhase® 1000

μPhase® SPHERO UP

μPhase® PLANO UP

μPhase® Plano Down

测量原理	泰曼格林型相移式干涉仪，可转成菲索型
测量能力	光学反射面的面形、光学零件或系统的透过波前
激光波长	标配632.8nm，335nm-1064nm间波长可选
PV重复精度	λ/400（λ=632.8nm）
RMS重复精度	λ/6500（λ=632.8nm）
测量不确定度	λ/20（λ=632.8nm）
相机分辨率	μPhase® 500：500×500像素、μPhase® 1000：1000×1000像素
数字化位	8位
激光器类型	稳频氦氖激光器
激光器防护等级	3A
