Home  Products  TriAngle®HiSpeed系列高速电子自准直仪  750076





  Likes

Share

WeChat

Scan and add Wechat

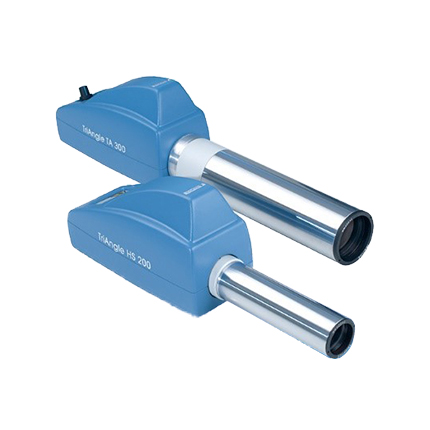

TA HS 200-38

Price Option Please Consult

Product No. 750076

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

Parameters Related Products Description

TA-100-38

TA US 300-57

TA HS 100-38

TA L 100-38

产品编号	产品型号	焦距(mm)	通光孔径(mm)	视场角(秒)	分辨率(秒)	80%视场线性度	光源	测量频率
750074	TA HS 100-38	100	26	6140 x 4940	0.1	±0.8%¹	636nm 激光二极管	>10Hz
750075	TA HS 150-38	150	30	4120 x 3330	0.07	±0.8%
750076	TA HS 200-38	200	30	3090x 2470	0.05	±0.8%
750077	TA HS 300-38	300	30	2060 x 1650	0.03	±0.8%
750078	TA HS 300-57	300	48	2060 x 1650	0.03	±0.8%
750079	TA HS 500-57	500	48	1240x 980	0.02	±0.8%
750080	TA HS 1000-115	1000	100	610 x 490	0.01	±0.8%
750081	TA HS 1000-140	1000	125	610 x 490	0.01	±0.8%

1.80%视场范围内线性度＜±0.8%。
