Home  Products  Macro Zoom Lens  693002

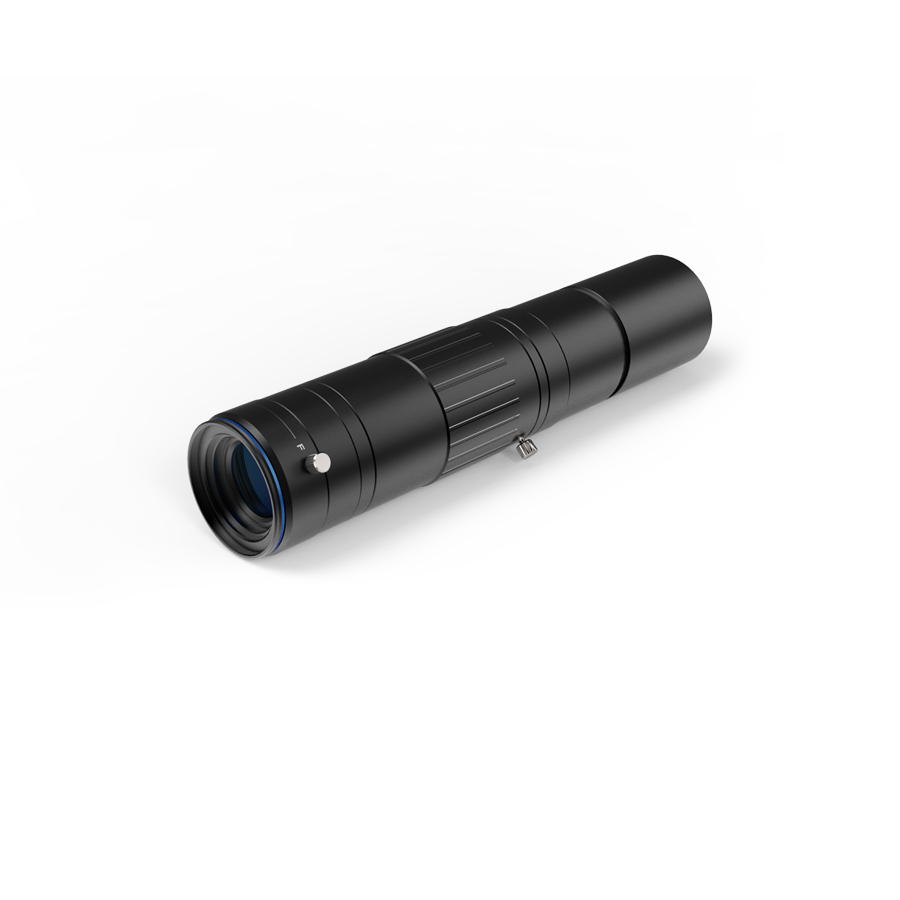

0.7×-4.5× 2/3″ Macro Zoom Lens





Share

WeChat

Scan and add Wechat

0.7×-4.5× 2/3″ Macro Zoom Lens

Price Option Please Consult

Product No. 693002

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

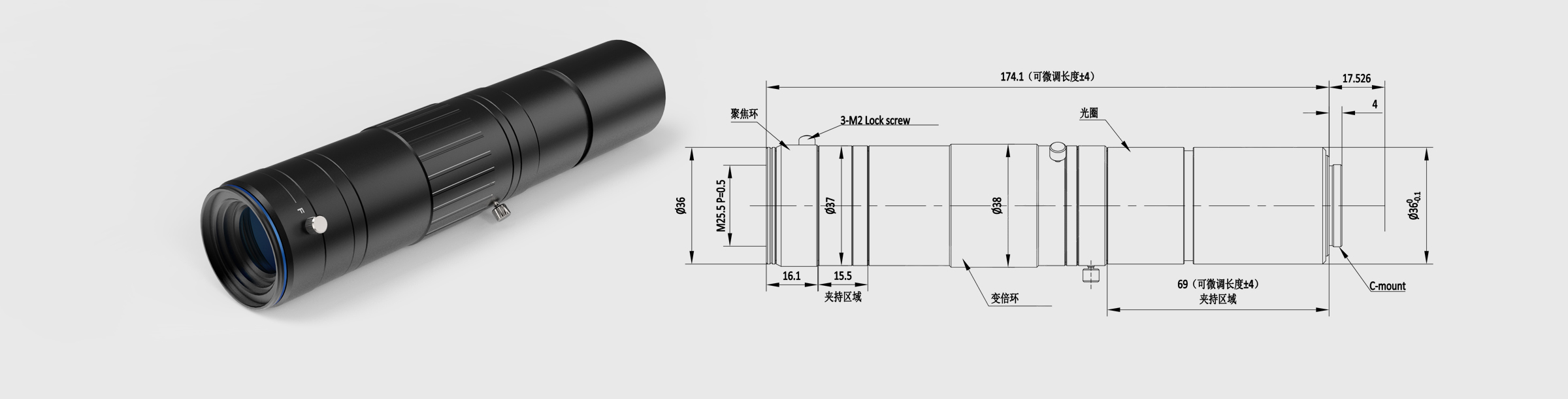

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 0.7X-4.5X

Max. sensor size 2/3″

Mount C-Mount

Depth of Focus（Max Magnification） 0.1mm

Resolution（Max Magnification） 4.3u

Working Distance 100mm

Filter Size M25.5 P=0.5

Distortion（Max Magnification） 0.0008

Weight 252g

Curve Download
