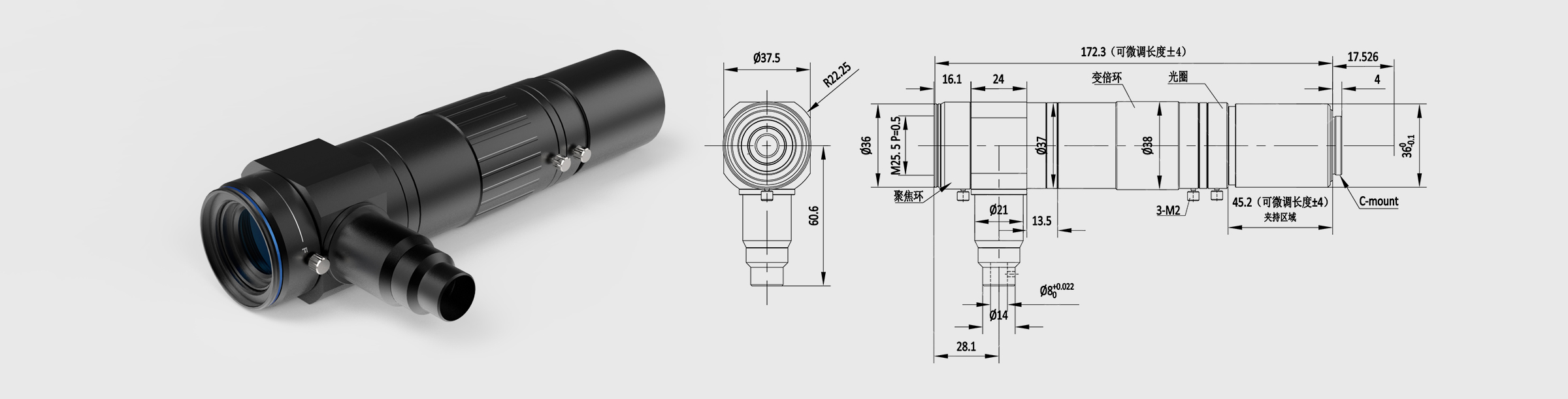

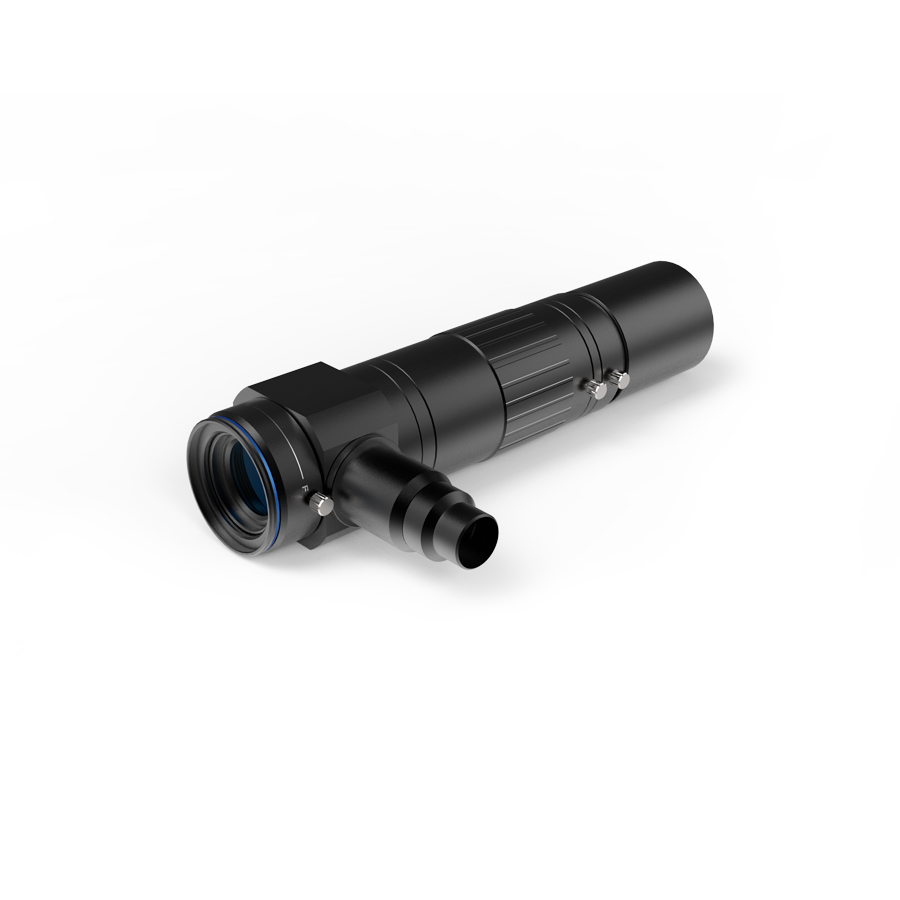

0.47×-3× 1/1.8″ Macro Zoom Lens（Coaxial）





Share

WeChat

Scan and add Wechat

0.47×-3× 1/1.8″ Macro Zoom Lens（Coaxial）

Price Option Please Consult

Product No. 693001

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 0.47X-3.0X

Max. sensor size 1.8″

Mount C-Mount

Depth of Focus（Max Magnification） 0.2mm

Resolution（Max Magnification） 4.3um

Working Distance 100mm

Filter Size M25.5 P=0.5

Distortion（Max Magnification） 0.0011

Weight 320g

Curve Download
