Split Tube Lens F=200mm 435-700nm





Share

WeChat

Scan and add Wechat

Split Tube Lens F=200mm 435-700nm

Price Option Please Consult

Product No. 691002

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

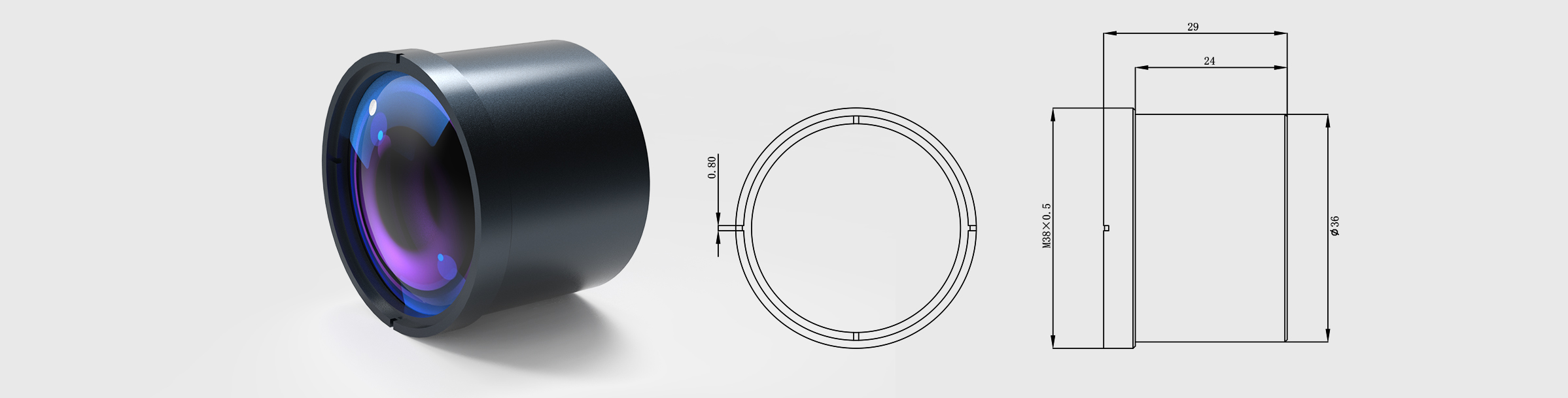

Max. sensor size φ20mm

Focal Length 200mm

Mount /

Objective Mount M38×0.5

Working Wavelength 435nm-700nm

Lens Size(W x L) φ38mm×29mm

Diameter of entrance pupil 20mm

Magnification 1X

Illumination Port /

Type Split Tube Lens

Curve Download

Split Tube Lens F=200mm 700-1100

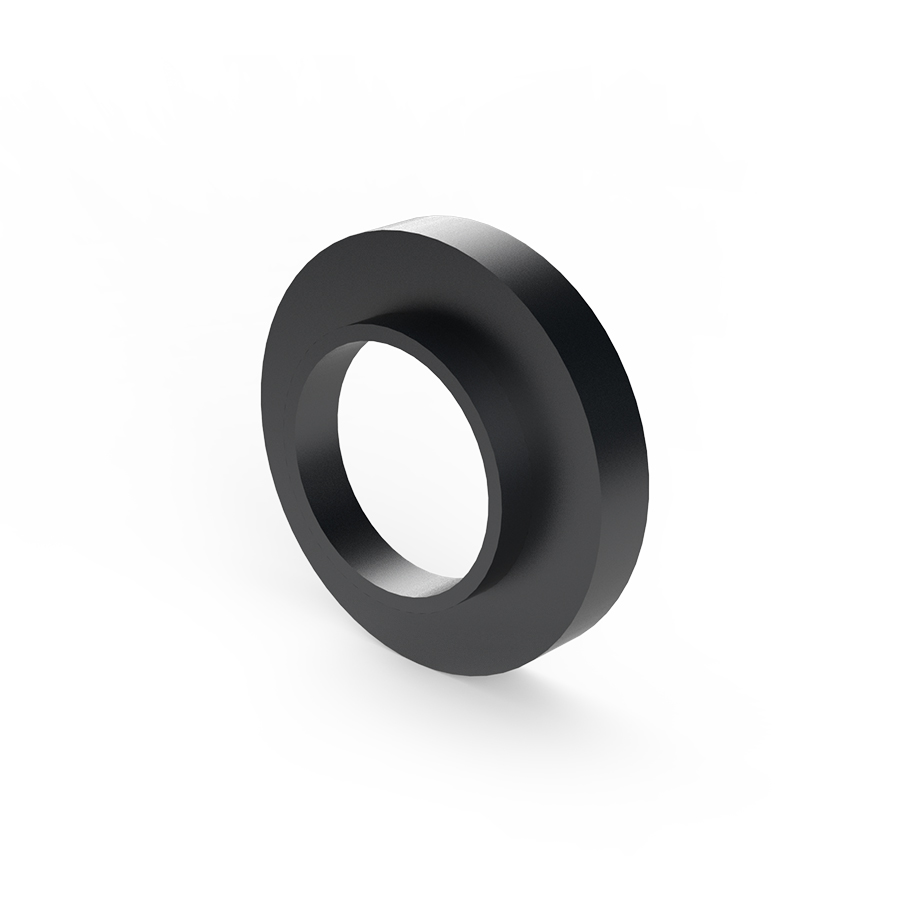

Tube Lens C-Mount Adapter

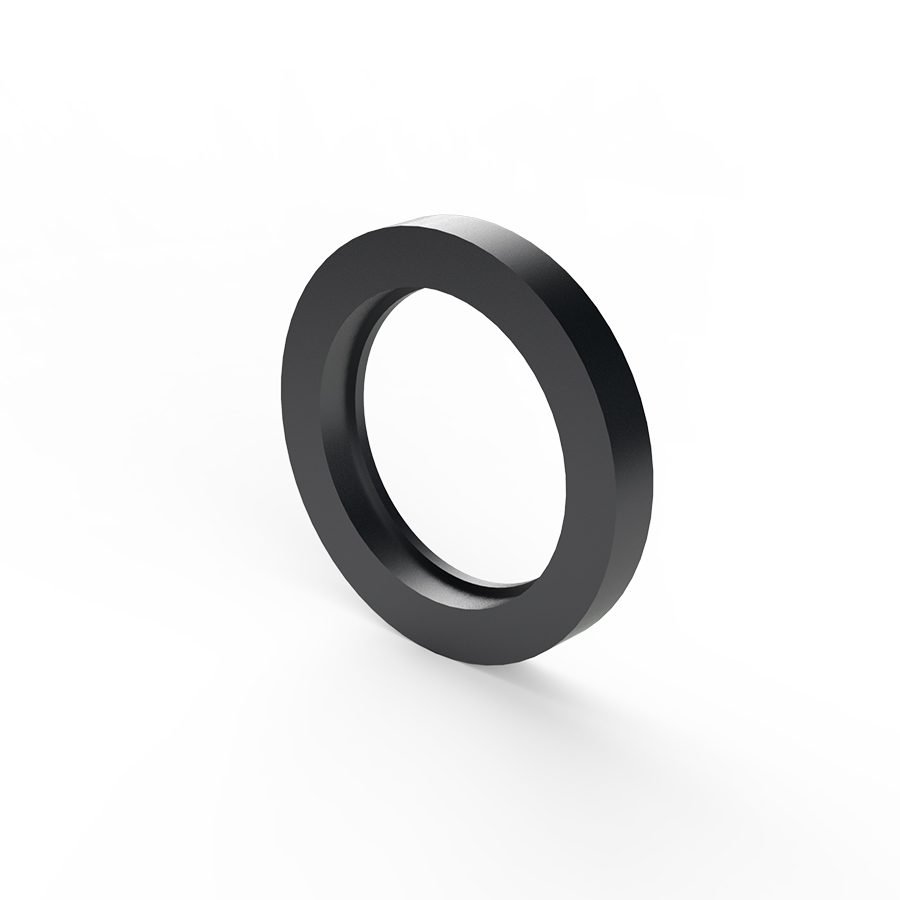

Tube Lens M38 To SM1 Adapter

Tube Lens M38 To SM2 Adapter

Microscopic objective tube lenses are specifically designed for infinitely distant calibration of microscopic objectives, and can be combined with the objective lens to form a microscope module. This tube mirror can be connected to LED lighting, achieving miniaturization of the microscope and making it easy to use in laboratories or industrial environments.
