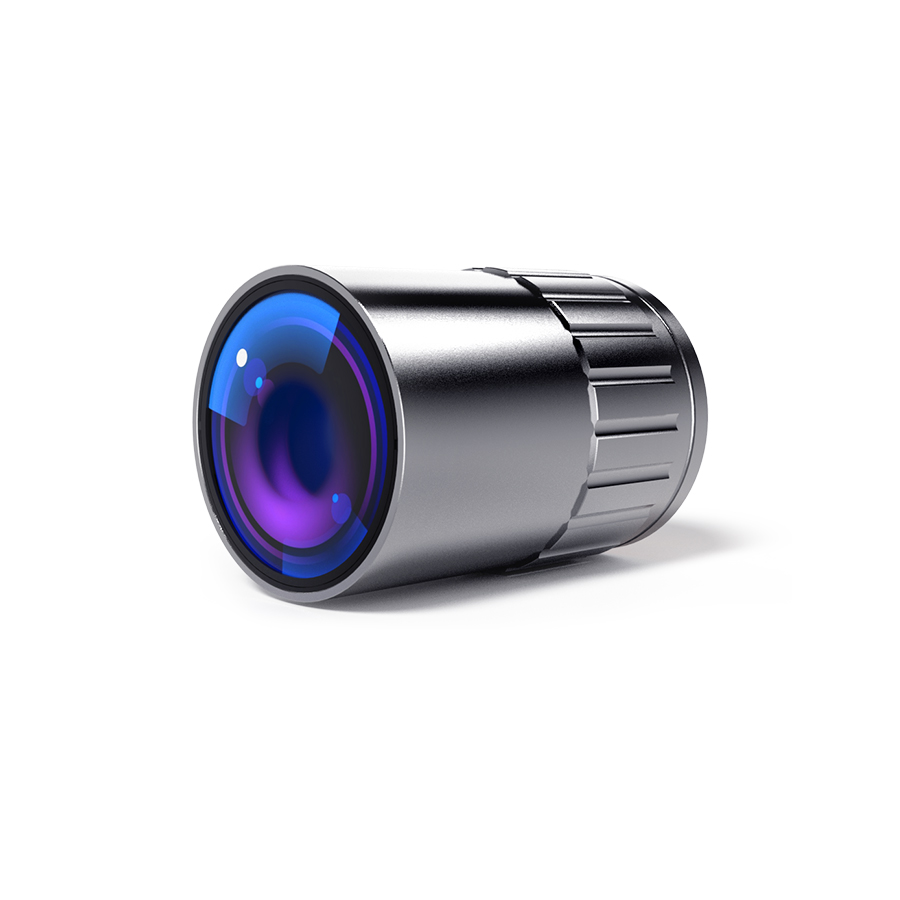

10X M PLAN APO UV Infinity Corrected Ultra-Long Working Distances Objective





Share

WeChat

Scan and add Wechat

10X M PLAN APO UV Infinity Corrected Ultra-Long Working Distances Objective

Price Option Please Consult

Product No. 690023

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

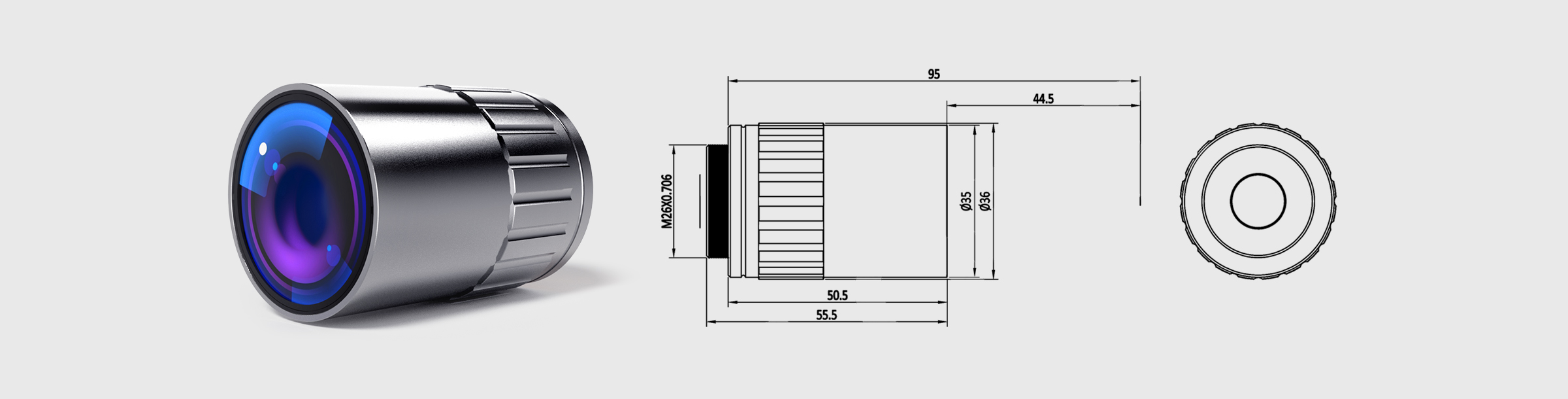

CAD PDF Auto CAD DXF eDrawing Step Datesheet

Parameters Specification Data curve Related Products Description

Magnification 10X

NA 0.28

Working Distance 44.5mm

Focal Length 20mm

Wavelength 370-400nm

Depth of Focus 3μm

Resolution 1μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 55.5mm

Length 36mm

Thread M26*0.706

Type M Plan APO

Curve Download

GU Optics’s UV infinity corrected Super Long working distance objectives are corrected from 370 to 400nm, Adopts plan apochromatic design, with Ultra-Long Working Distances characteristics, meet large workspace applications.
