50X M PLAN APO VIS Infinity Corrected LWD Microscope Objective | GU OPTICS

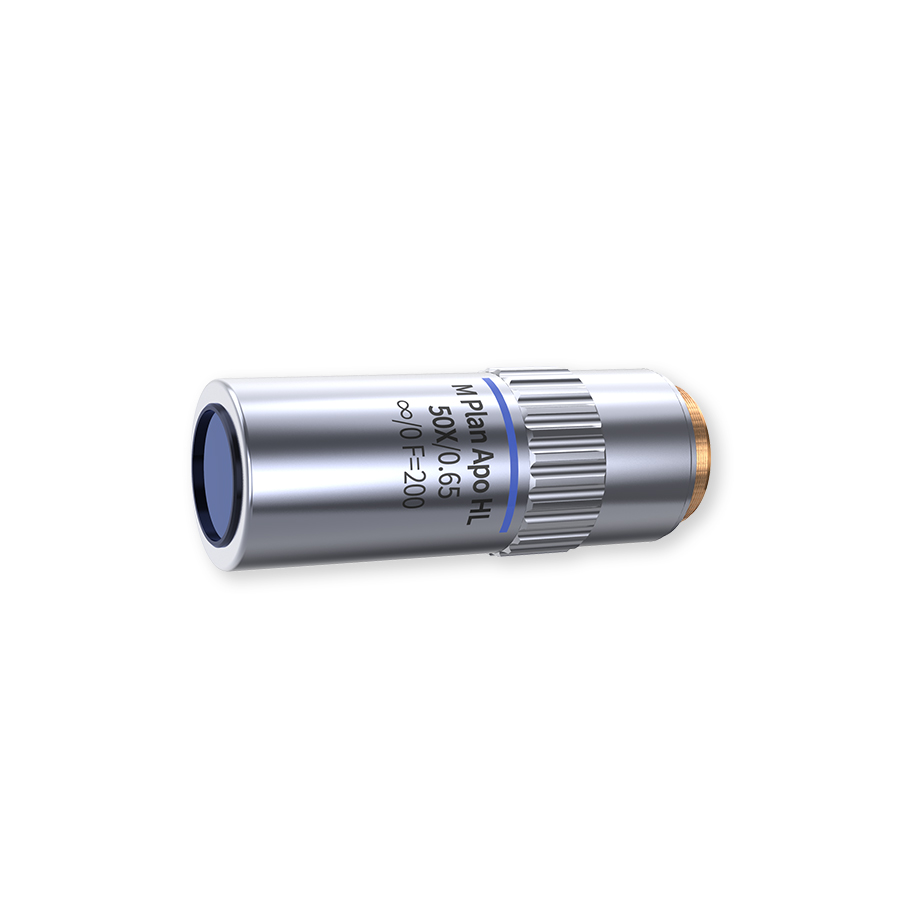

50X M PLAN APO VIS Infinity Corrected LWD Microscope Objective

50X M PLAN APO VIS Infinity Corrected LWD Microscope Objective

Price Option

Product No. 690010

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Magnification 50X
NA 0.65
Working Distance 9.4mm
Focal Length 4mm
Wavelength VIS
Depth of Focus 0.55μm
Resolution 0.4μm
Focal Length of Tube Lens f200mm
OFN 25mm

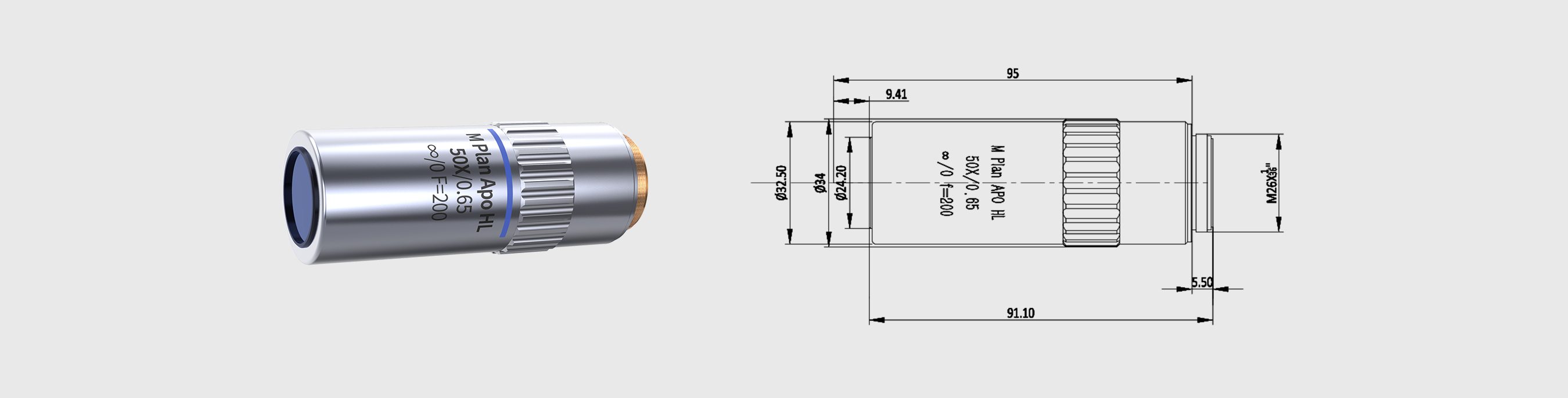

Dia. 34mm
Length 91.1mm
Thread M26*0.706
Type M Plan APO
VS
