Home  Products  VIS, NIR Infinity Corrected Long Working Distance Objectives  690006

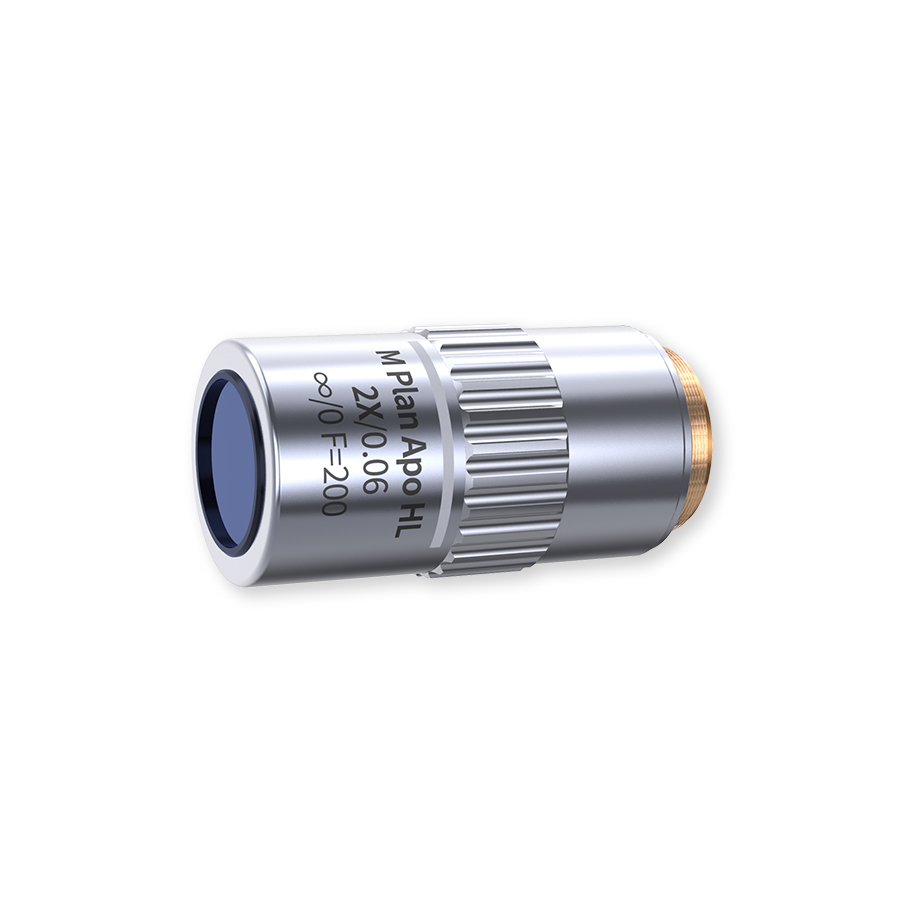

2X M PLAN APO VIS Infinity Corrected LWD Microscope Objective





Share

WeChat

Scan and add Wechat

2X M PLAN APO VIS Infinity Corrected LWD Microscope Objective

Price Option

Product No. 690006

Stock Please Consult

Express DHL, Fedex etc.

Quantity

Add car Chating online

Product file downloadClick file to download

3D View CAD PDF Auto CAD DXF eDrawing Step

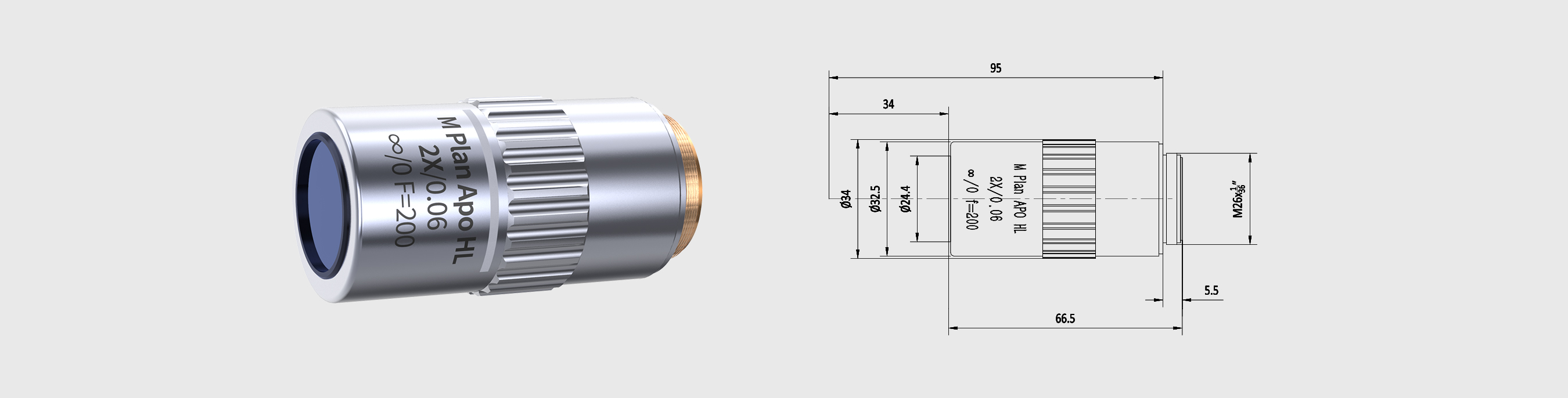

Parameters Specification Data curve Related Products Description

Magnification 2X

NA 0.055

Working Distance 34mm

Focal Length 100mm

Wavelength VIS

Depth of Focus 110μm

Resolution 6.5μm

Focal Length of Tube Lens f200mm

OFN 25mm

Dia. 34mm

Length 66.5mm

Thread M26*0.706

Type M Plan APO

Curve Download
