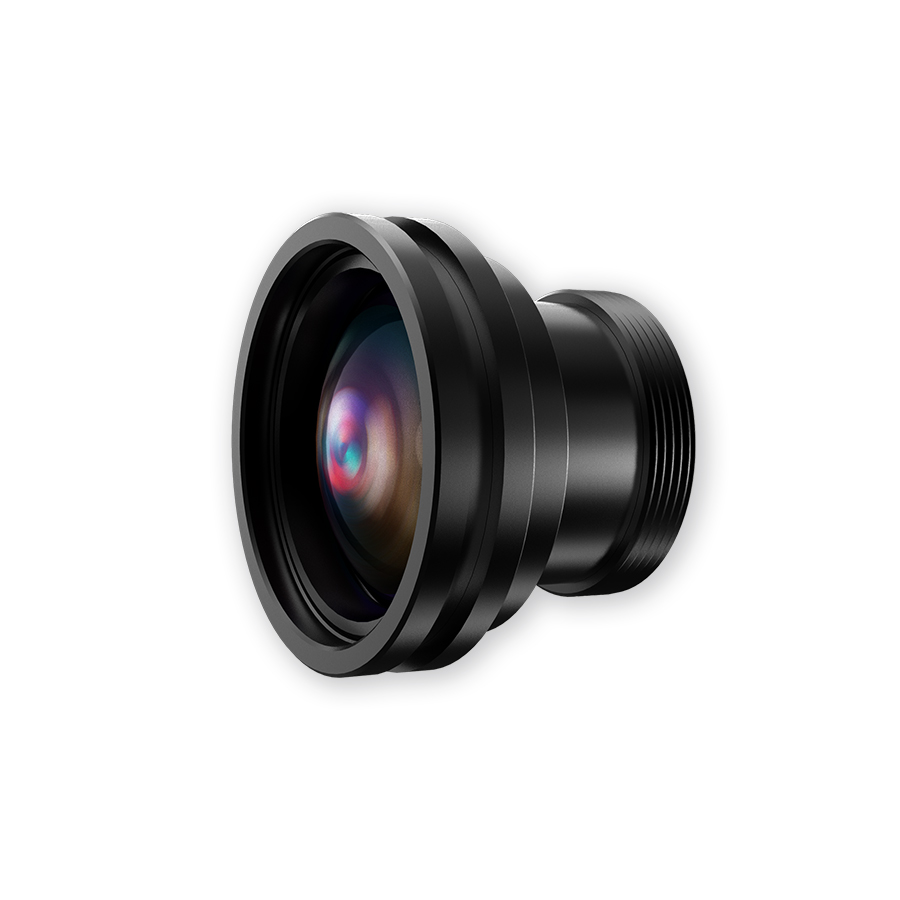

25mm 640×512 Long Wavelength Infrared Lens
Price Option
Product No. 680209
Stock Please Consult
Express DHL, Fedex etc.
Product file downloadClick file to download
- Focal Length 25mm
- Resolution 640×512
- Pixel Size 12μm
- F/# 1.0
- FOV 17.4°×14°
- Working Wavelength 8～12μm
- Working Distance 1m～∞
- Weight 35.2g±1.8g
- Mount C-Mount
| NO | Item | Specification |
| 1 | EFL | 25mm |
| 2 | Sensor | 640x512 12μm |
| 3 | FNo | 1.0 |
| 4 | FOV (HxV) | 17.4° x14° |
| 5 | Wavelength | 8-12μm |
| 6 | Transmittance | >88% |
| 7 | Front Lens Coating | HD |
| 8 | Focus | Fixed |
| 9 | Focus distance | 1m~∞ |
| 10 | Athermalizing | Optical non-thermal |
| 11 | Sealing | IP67 |
| 12 | Operation Temperature | -40~80°C |
| 13 | Weight | 35.2±1.8 g |
| 14 | Appearance Grade | 80-50 |
| 15 | Mount | C-Mount |
The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
