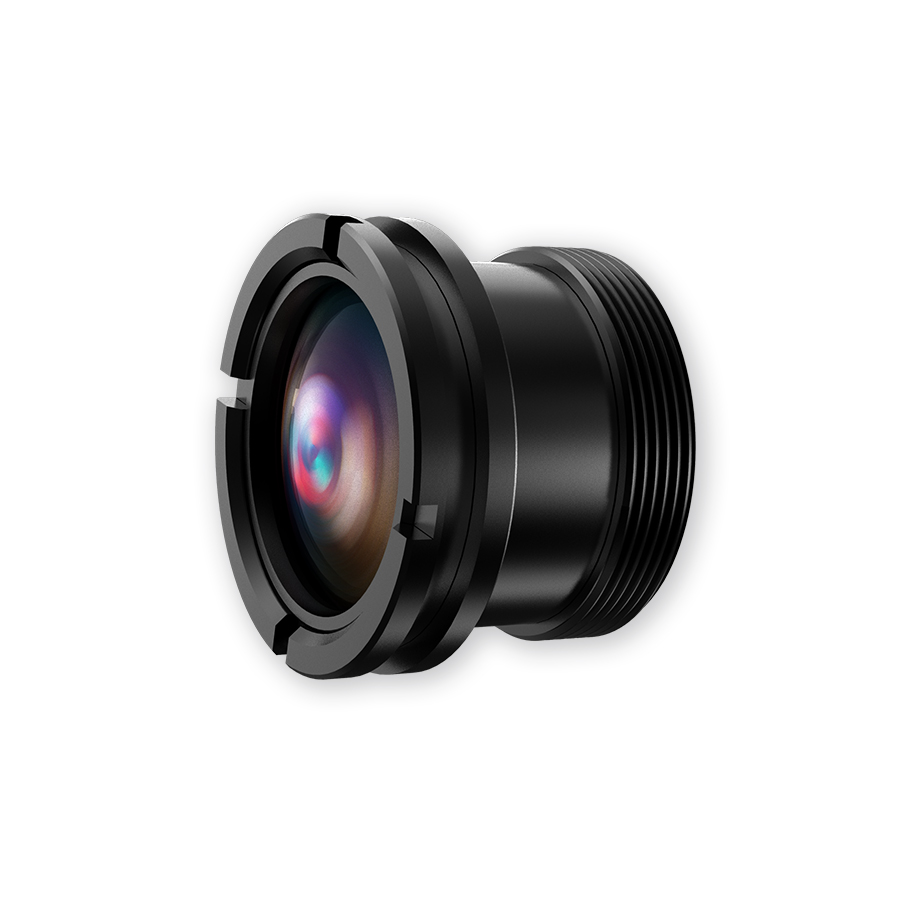

19mm 640×512 Long Wavelength Infrared Lens

19mm 640×512 Long Wavelength Infrared Lens

Price Option

Product No. 680208

Stock Please Consult

Express DHL, Fedex etc.

Product file downloadClick file to download
Focal Length 19mm
Resolution 640×512
Pixel Size 12μm
F/# 1.0
FOV 23°×18.4°
Working Wavelength 8~12μm
Working Distance 1m~∞
Weight 24.5g±1.5g
Mount C-Mount
No.  Item Specification
1 EFL 19mm
2 Sensor 640x512    12μm
3 F/# 1.0
4 FOV (HxV) 23° x18.4°
5 Wavelength 8-12μm
6 Transmittance >88%
7 Front Lens Coating Carbon-like film
8 Focus Fixed
9 Focus distance 1m~∞
10 Athermalizing Optical athermalization
11 Sealing IP67
12 Operation Temperature -40~80°C
13 Weight 24.5g±1.5g
14 Appearance Grade 80-50
15 Mount C-Mount
The main working wavelength of GA infrared lens is 8-12μm, which can be used with the mainstream infrared chips on the market. We can OEM different interfaces and different focus for customers
